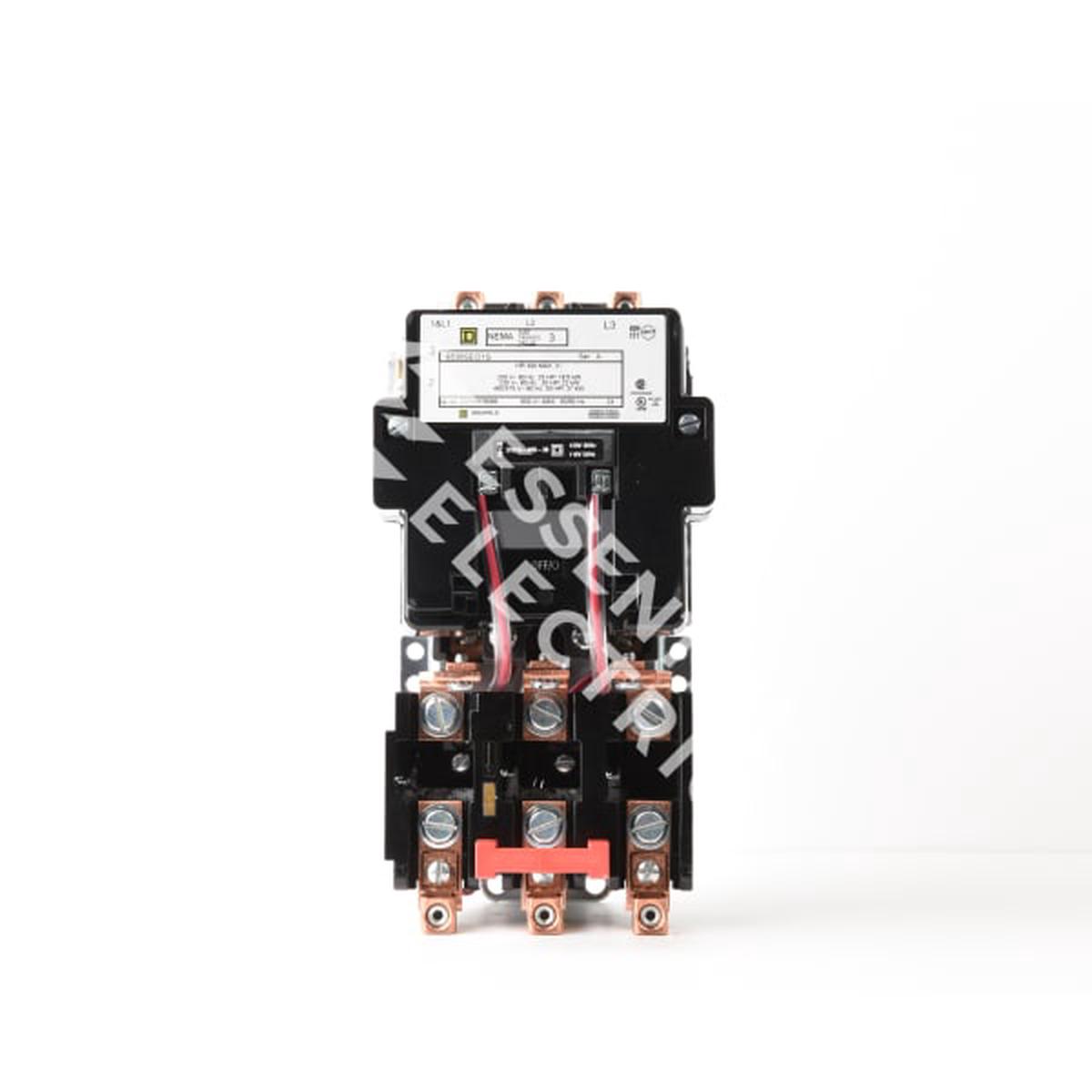

8536SEO1V08 – Square D 90A 208V 3P Non-Reversing NEMA Size 3 Magnetic Motor Starter

8536SEO1V08

8536SEO1V08 is a Square D Type S Full Voltage Magnetic Motor Starter designed for reliable 3-phase motor control applications. This NEMA Size 3 starter features a 90A current rating, 208V AC coil, and an open enclosure for easy installation and maintenance. It is non-reversing and equipped with a thermal melting alloy overload relay for dependable protection. This motor starter is ideal for industrial and commercial environments, supporting motor ratings up to 30 HP at 240V and 50 HP at 480V. The robust construction and NEMA-compliant design ensure long-term reliability and safety in demanding applications.

• Part Number: 8536SEO1V08
• Manufacturer: Square D
• Series: Type S, NEMA Size 3
• Amperage Rating: 90A
• Coil Voltage: 208V AC, 60 Hz
• Number of Poles: 3
• Enclosure Type: Open
• Phase: 3
• Motor Ratings: 25 HP @ 200V, 30 HP @ 230V, 50 HP @ 460/575V
• Overload Relay: Thermal Melting Alloy
• Mounting Type: Box Lug
• Operating Temperature: 0 to 40C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8536SEO1V08
• Manufacturer : Square D
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Class 8536
• Type : SEO
• Voltage : 600
• Amperage : 90
• Phase : 3
• Poles : 3
• Horse Power : HP @ 3 Phase – 208V 25 hp HP @ 3 Phase – 240V 30 hp HP @ 3 Phase – 480V 50 hp
• Configuration : Nonreversing
• Aux Contacts : No Auxiliary Contacts
• Coil Voltage Maximum : 208 VAC
• Nema Rating : 3
• Nema Starter Size : 3

Product Data

• UPC : 785901788331
• GTIN : 00785901788331
• Country of Origin : Mexico
• Dimensions : 5.47 in x 11.09 in
• Weight : 7.09
• Certification : CSA, UL Listed
