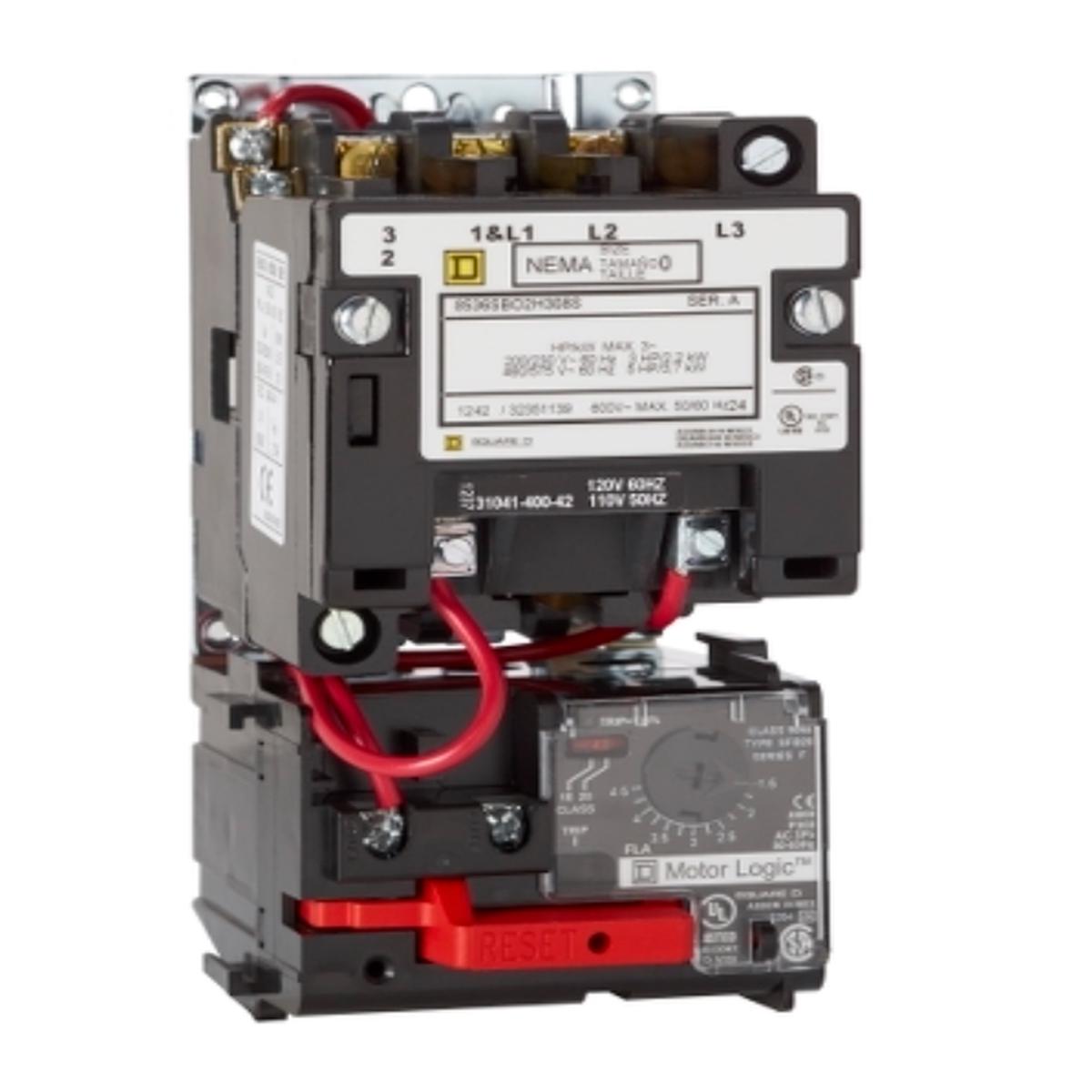

8536SEG1H20S – Schneider Electric 90A 3-Pole Non-Reversing Motor Starter Size 3 Motor Logic SSOLR Class 20 NEMA 1

8536SEG1H20S

8536SEG1H20S is a non-reversing motor starter designed for industrial motor control applications, featuring Motor Logic SSOLR Class 20 overload protection and a robust NEMA 1 enclosure. This Schneider Electric starter is built for reliable operation in demanding environments, supporting 3-phase motors up to 600 V AC. It offers flexible installation and easy maintenance, making it ideal for a wide range of industrial and commercial uses.

• Part Number: 8536SEG1H20S
• Manufacturer: Schneider Electric
• NEMA Size: 3
• Rated Current: 90 A
• Number of Poles: 3P
• Maximum Voltage Rating: 600 V AC
• Phase: 3 phase
• Type of Overload: Solid state Motor Logic Class 20
• Mounting Type: NEMA 1 enclosure
• Interrupt Rating: Up to 100 kA SCCR
• Series/Frame: Type S
• Certifications: NEMA 1

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8536SEG1H20S
• Manufacturer : Schneider Electric
• Category : Motor Control
• Item Subcategory : Motor Starter

Product Data

• Weight : 15
