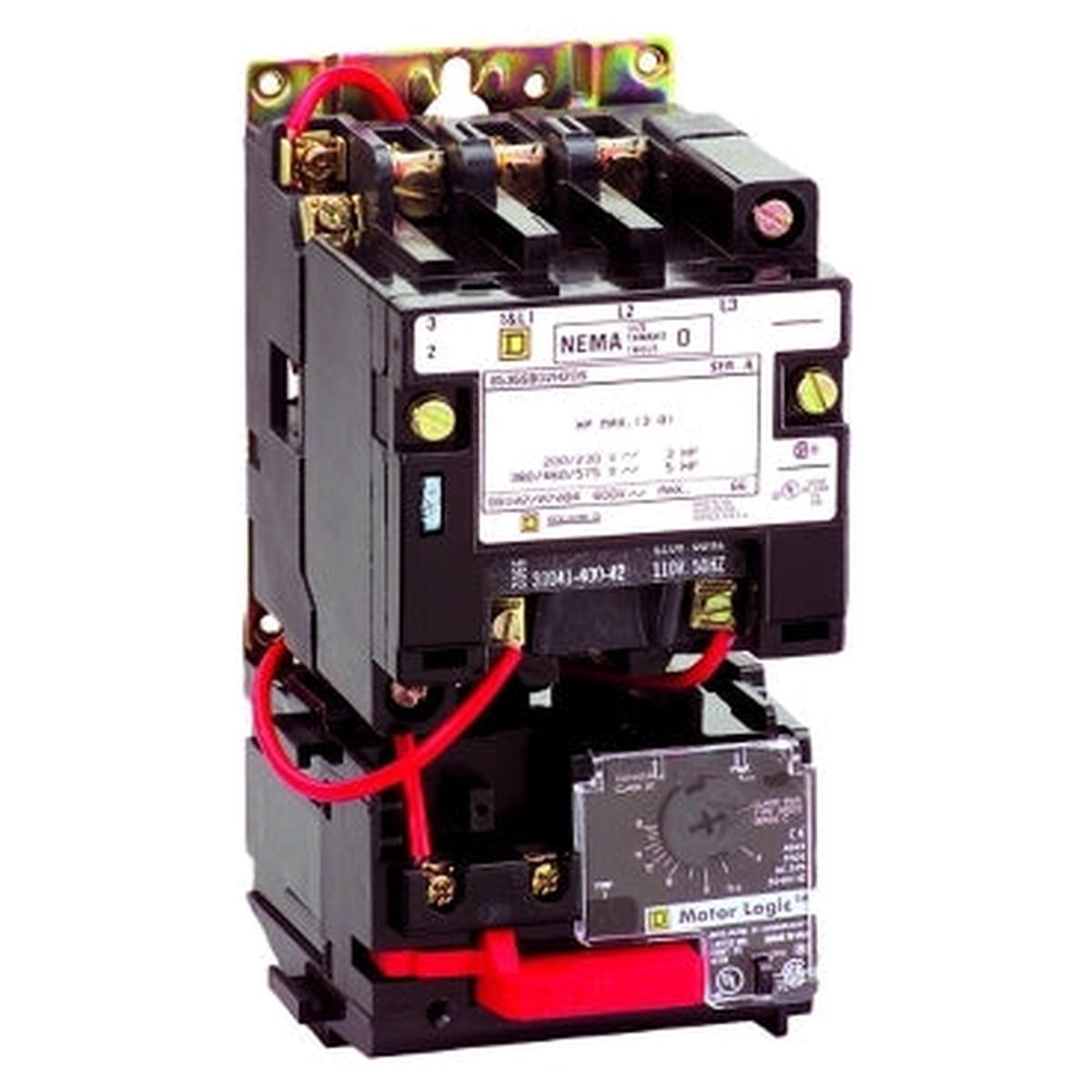

8536SDO1V02X20 – Schneider Electric 45A 600V 3-Pole NEMA Type S Motor Starter Size 2 Open Coil 120V

8536SDO1V02X20

8536SDO1V02X20 is a Schneider Electric NEMA Type S motor starter designed for reliable motor control applications.This motor starter is a non-reversing, full voltage device with a Size 2 frame, rated for 45 amperes and suitable for 3-phase systems up to 600 VAC. It supports motor horsepower ratings of 10 HP at 200 VAC, 15 HP at 230 VAC, and 25 HP at 460 and 575 VAC. The starter includes a melting alloy overload relay and a 120 VAC coil, and features a 3-pole configuration in an open mounting type. It has a short circuit current rating (SCCR) of 5 kA at 600 V AC, ensuring robust protection and durability. This product is ideal for industrial and construction motor control needs.

Key Specifications
• Amperage: 45 A
• Voltage: Up to 600 VAC
• Poles: 3
• Mounting Type: Open
• Frame/Size: Size 2
• Trip Unit: Melting Alloy Overload Relay
• Coil Voltage: 120 VAC
• Horsepower Ratings: 10 HP (200 VAC), 15 HP (230 VAC), 25 HP (460/575 VAC)
• Interrupt Rating: 5 kA at 600 V AC
• Phase: 3-phase
• Type: NEMA Type S, Non-Reversing

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8536SDO1V02X20
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Motor Starter

Product Data

• Weight : 3
