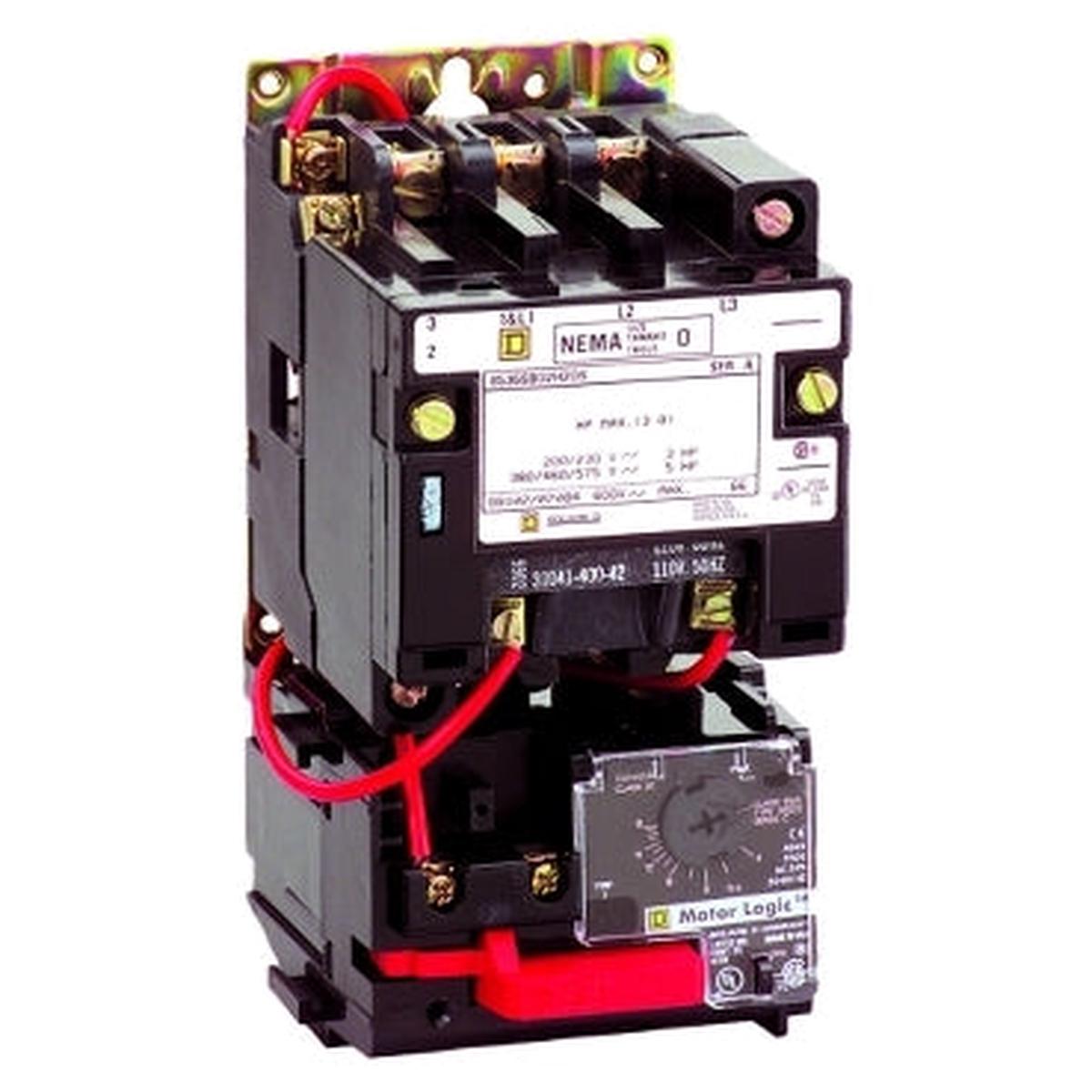

8536SDO1V02H20S – Schneider Electric 600V 3-Phase 45A 3-Pole Motor Starter, NEMA Size 2, Open Enclosure

8536SDO1V02H20S

8536SDO1V02H20S is a 600V 3-phase 45A 3-pole motor starter from Schneider Electric, designed for reliable motor control applications. This non-reversing starter features a 120V coil and is built to NEMA Size 2 specifications with an open enclosure for easy installation and maintenance. This motor starter is ideal for industrial and commercial use, providing solid-state overload protection and compatibility with a wide range of motor loads. The starter requires separate heater packs for overload protection and is suitable for applications requiring a 3-pole, non-reversing configuration.

• Part Number: 8536SDO1V02H20S
• Manufacturer: Schneider Electric
• Rated Current: 45A
• System Voltage: 600V AC
• Phase: 3-phase
• Poles: 3
• NEMA Size: 2
• Enclosure: Open
• Coil Voltage: 120V
• Type: Non-Reversing Starter
• Overload Type: Solid State Motor Logic SSOLR
• Mounting Type: Panel Mount

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8536SDO1V02H20S
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Class 8536
• Type : SDO
• Voltage : 600
• Amperage : 45
• Phase : 3
• Poles : 3
• Coil Voltage Maximum : 120
• Coil Voltage Minimum : 110
• Nema Rating : 2

Product Data

• UPC : 785901070733
• GTIN : 00785901070733
• Dimensions : Depth 0.312 in (7.92 mm) Height 0.437 in (11.10 mm)
• Weight : 10
• Certification : UL
