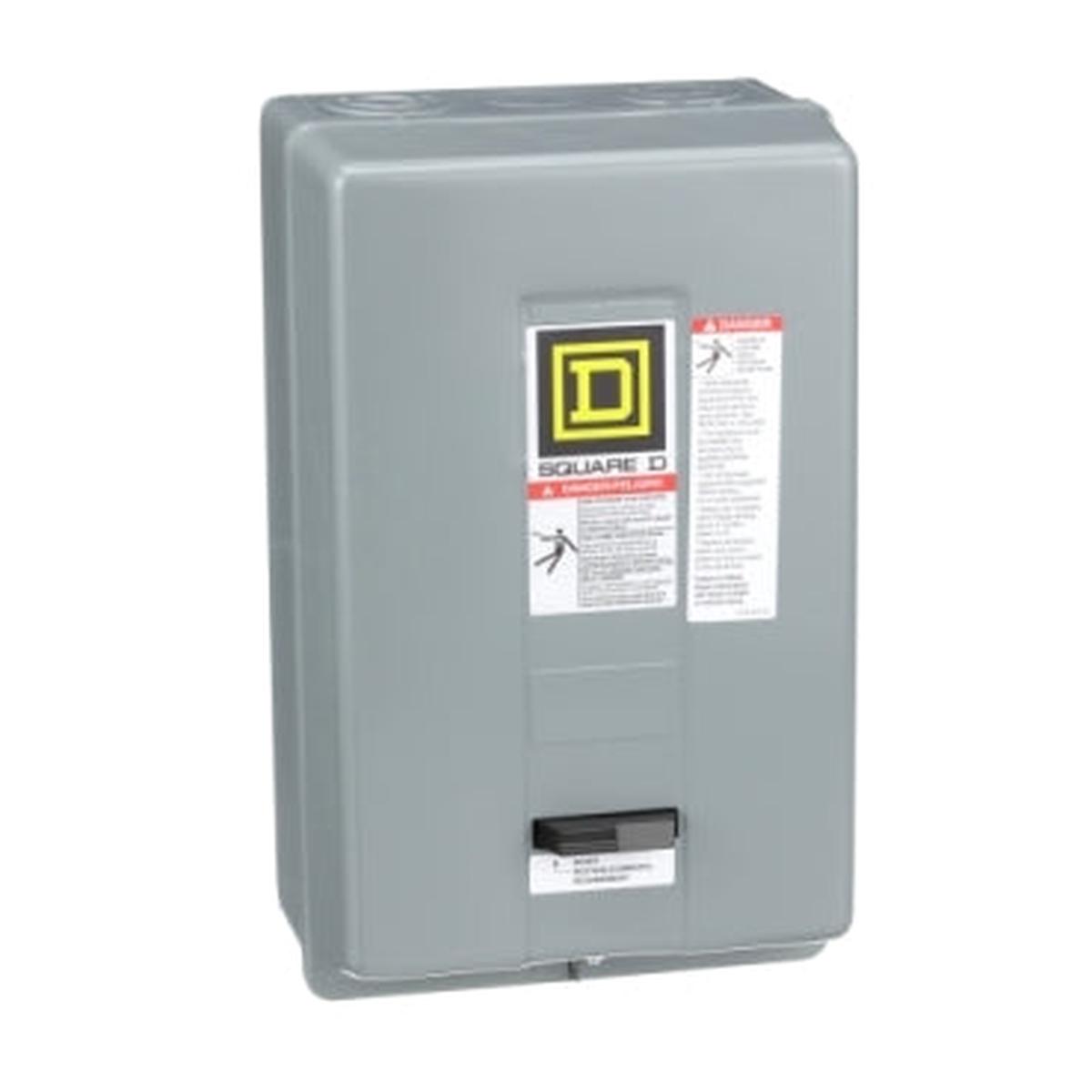

8536SDG1V02H30S – Schneider Electric (Square D) Class 8536 NEMA Motor Starter

8536SDG1V02H30S

8536SDG1V02H30S is a Class 8536 NEMA Motor Starter by Schneider Electric (Square D), designed for reliable control and lighting applications. This catalog number uses Square D suffix conventions for coil voltage, enclosure features, and lighting contactor style. See the decoded suffix summary below.

• Family: Class 8536 NEMA Motor Starter
• Application: Industrial control, motor starting, or lighting loads
• Mounting: Panel/enclosure as configured
• Manufacturer: Schneider Electric (Square D)

Suffix meanings in this catalog number

• V02: 120 V 60 Hz coil
• H30S: Enclosed assembly with Hand-Off-Auto (HOA) selector option

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8536SDG1V02H30S
• Manufacturer : Square D
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Class 8536
• Type : SDG
• Voltage : 600
• Amperage : 45
• Phase : 3
• Poles : 3
• Horse Power : HP @ 3 Phase – 208V 10 hp HP @ 3 Phase – 240V 15 hp HP @ 3 Phase – 480V 25 hp
• Configuration : Nonreversing
• Aux Contacts : 1NO
• Coil Voltage Maximum : 120 VAC
• Coil Voltage Minimum : 110
• Nema Rating : 2
• Nema Starter Size : 2
• Enclosure : 1

Product Data

• UPC : 785901807087
• GTIN : 00785901807087
• Country of Origin : Mexico
• Dimensions : 6.3 in x 12.69 in
• Weight : 6.07
• Certification : CSA, UL Listed
