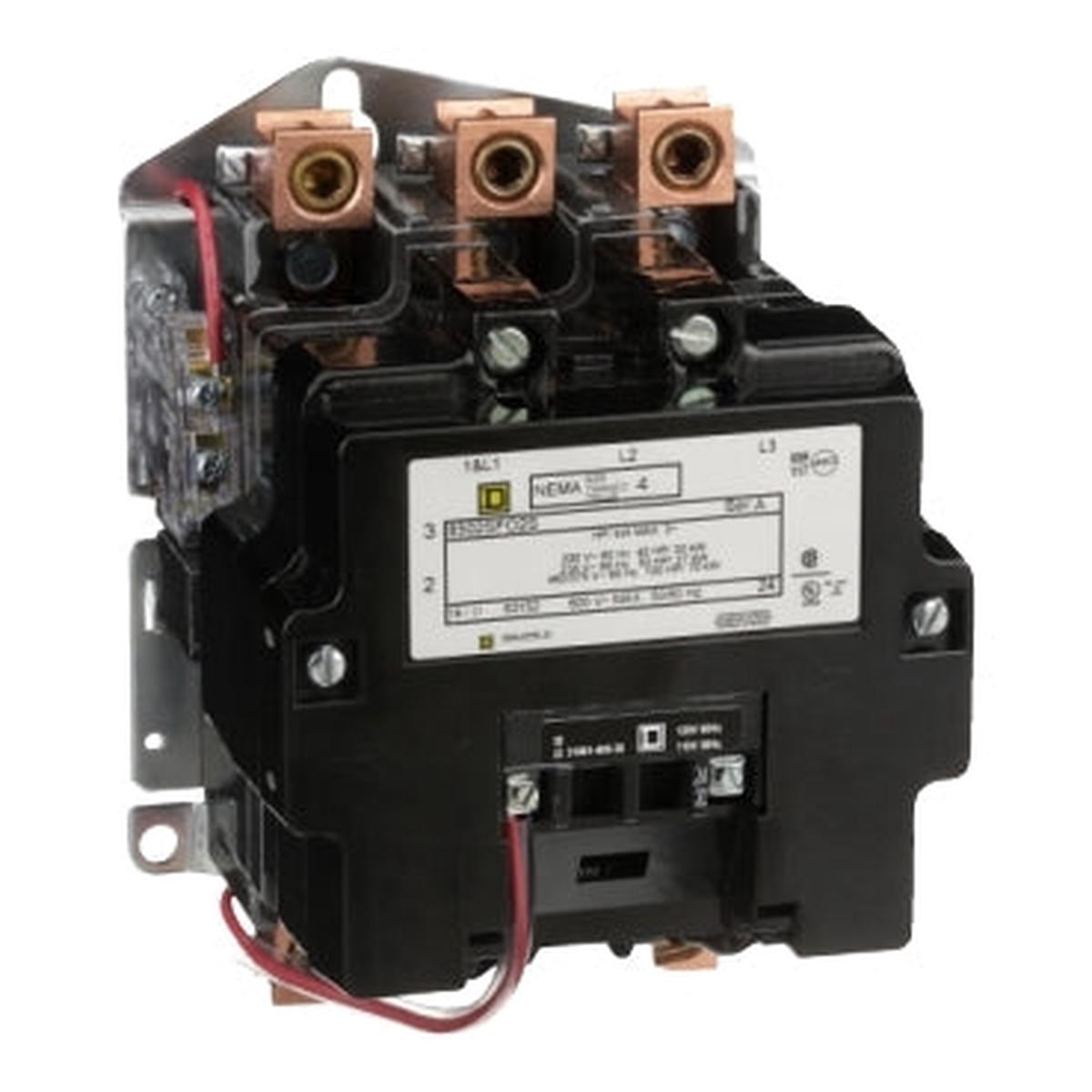

8502SFO2V02S – Square D 135A 3P 120V NEMA Size 4 Non-Reversing Contactor

8502SFO2V02S

8502SFO2V02S is a Square D NEMA Size 4 non-reversing contactor designed for reliable motor control in industrial applications. This 3 pole, 135 amp, 120V AC coil contactor is built for switching heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. The open magnetic design supports robust performance and long mechanical life. This contactor is part of the Square D Class 8502 series, featuring a screw clamp connection and is UL Listed and CSA Certified for safety and compliance. It is suitable for use in a wide range of power distribution and motor control environments, offering dependable operation and easy serviceability.

• Manufacturer: Square D
• Series: Class 8502
• Amperage: 135A
• Coil Voltage: 120V AC
• Poles: 3
• Phase: 3
• NEMA Size: 4
• Interrupt Rating: 100 kA at 480V AC
• Mounting Type: Open
• Contactor Type: Magnetic, Non-Reversing
• Certifications: UL Listed, CSA Certified
• Application: Motor Control, Heating Loads, Capacitors, Transformers

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This NEMA Type S Contactor includes a 110 VAC coil.

Specifications

• Part Number: 8502SFO2V02S
• Manufacturer : Square D
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Class 8502
• Type : SFO
• Voltage : 600
• Amperage : 135
• Phase : 3
• Poles : 3
• Horse Power : HP @ 3 Phase – 208V 40 hp HP @ 3 Phase – 240V 50 hp HP @ 3 Phase – 480V 100 hp
• Configuration : Non-Reversing
• Aux Contacts : Auxiliary Contacts Not Included
• Coil Voltage Maximum : 120
• Full Load Amps : 135 A
• Coil Voltage Minimum : 110
• Nema Starter Size : 4
• Frequency : 50/60 Hz

Product Data

• UPC : 785901831525
• GTIN : 00785901831525
• Country of Origin : Mexico
• Dimensions : 6 in x 8.19 in
• Weight : 8.2 lb
• Certification : CSA, UL E78351 CCN NLDX
