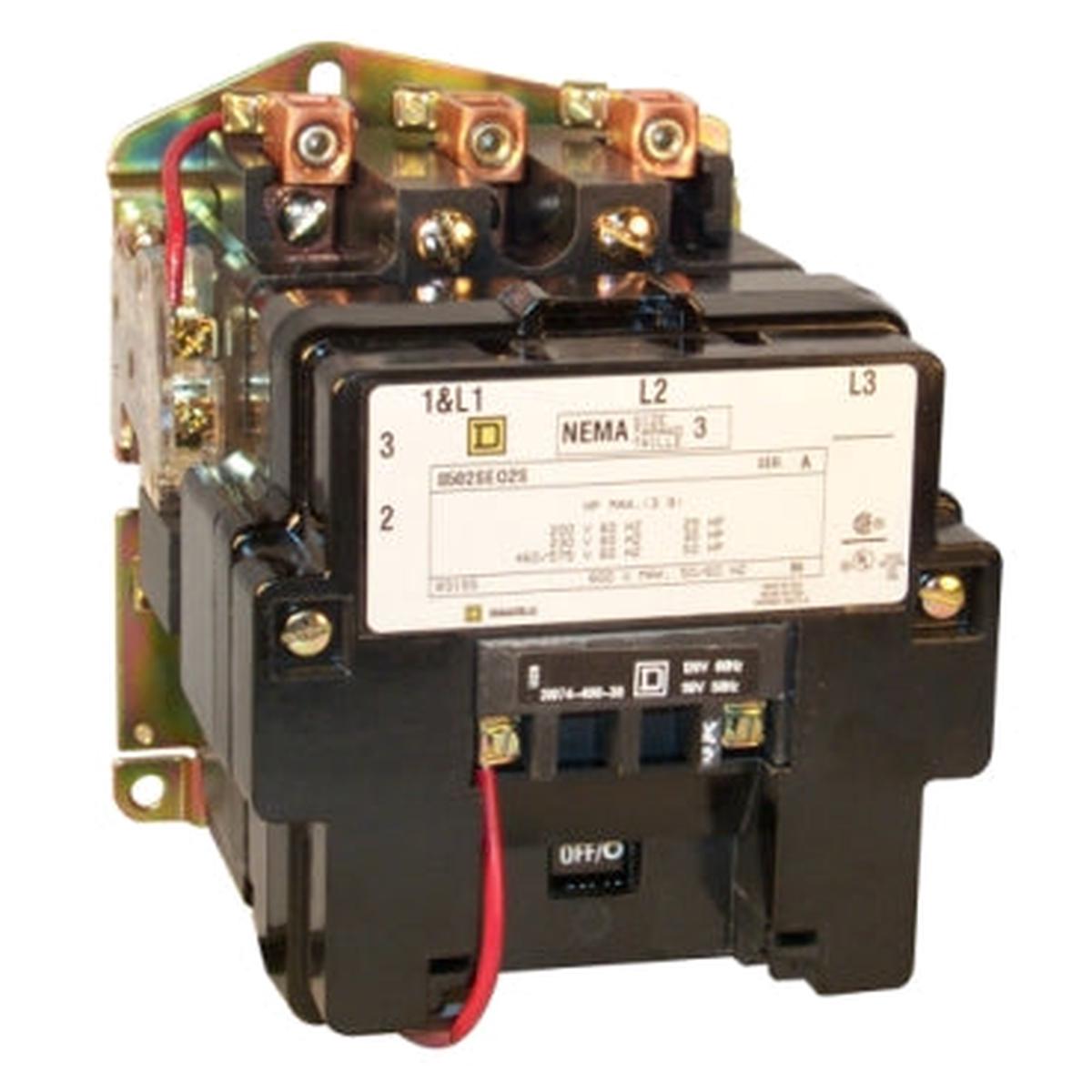

8502SEO3V03 – Square D 90A 600VAC 4-Pole NEMA Size 3 Non-Reversing Motor Contactor with 240VAC Coil

8502SEO3V03

8502SEO3V03 is a Square D 4-pole, 90 amp, 600 VAC NEMA Size 3 non-reversing motor contactor with a 240 VAC coil.8502SEO3V03 contactor is designed for three-phase motor control applications and supports up to 50 HP at 460 VAC and 30 HP at 230 VAC. It features a 4-pole configuration suitable for control circuits requiring an additional pole. The contactor is rated for a maximum circuit breaker size of 150 A and has a short-circuit current rating (SCCR) of 100 kA at 480 VAC. It operates with a 240 VAC coil voltage at 50/60 Hz.

Key Specifications
• Amperage: 90 Amps
• Voltage Rating: 600 VAC
• Number of Poles: 4
• Coil Voltage: 240 VAC, 50/60 Hz
• NEMA Size: 3
• Type: Non-Reversing
• Horsepower Ratings: 25 HP at 200 VAC, 30 HP at 230 VAC, 50 HP at 460 VAC, 50 HP at 575 VAC
• Short-Circuit Current Rating: 100 kA at 480 VAC
• Maximum Circuit Breaker Size: 150 A
• Phase: 3 Phase

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8502SEO3V03
• Manufacturer : Square D
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Class 8502
• Type : SEO
• Voltage : 600
• Amperage : 90
• Phase : 3
• Poles : 4
• Configuration : Nonreversing
• Coil Voltage Maximum : 240

Product Data

• GTIN : 00785901340768
• Dimensions : Width 9.75 in (247.65 mm) x Depth 6.50 in (165.10 mm)
• Weight : 14
