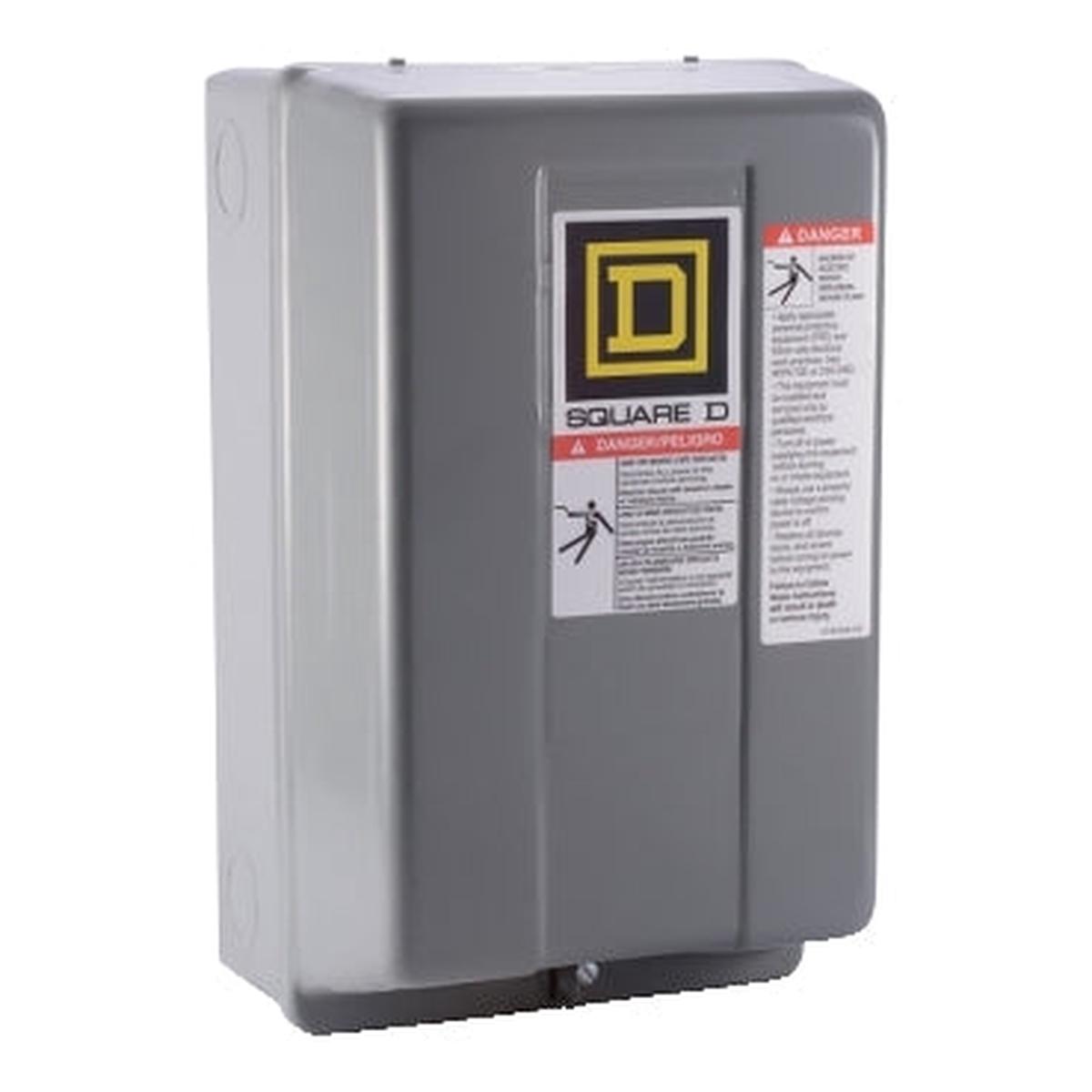

8502SAG12V02S – Square D 9A 120VAC 3-Pole NEMA 1 Full Voltage Non-Reversing Magnetic Contactor

8502SAG12V02S

8502SAG12V02S is a Square D NEMA 1 full voltage non-reversing magnetic contactor designed for reliable motor control applications. This 3-pole contactor features a 120VAC coil and is rated for 9 amps, making it suitable for a variety of industrial uses. Engineered for durability and safety, the 8502SAG12V02S offers a robust design with a NEMA 1 enclosure for indoor protection. It is ideal for surface mounting and supports up to 1.5 HP at 200/230 VAC and 2 HP at 460/575 VAC. The contactor is rated for a maximum interrupting capacity of 100 kA and is UL508A listed for safety compliance.

• Part Number: 8502SAG12V02S
• Manufacturer: Square D
• Series: 8502
• Frame Size: Size 00
• Number of Poles: 3
• Coil Voltage: 120 VAC
• Rated Current: 9 A
• Mounting Type: Surface
• Enclosure: NEMA 1
• Interrupt Rating: 100 kA
• Power Rating: 1.5 HP @ 200/230 VAC, 2 HP @ 460/575 VAC
• Certifications: UL508A Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8502SAG12V02S
• Manufacturer : Square D
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Class 8502
• Type : SAG
• Voltage : 6
• Amperage : 9
• Phase : 3
• Poles : 3
• Configuration : Nonreversing
• Coil Voltage Maximum : 120
• Coil Voltage Minimum : 110

Product Data

• Dimensions : Width 5.98 in (152 mm) x Depth 5.28 in (134 mm)
• Weight : 8
