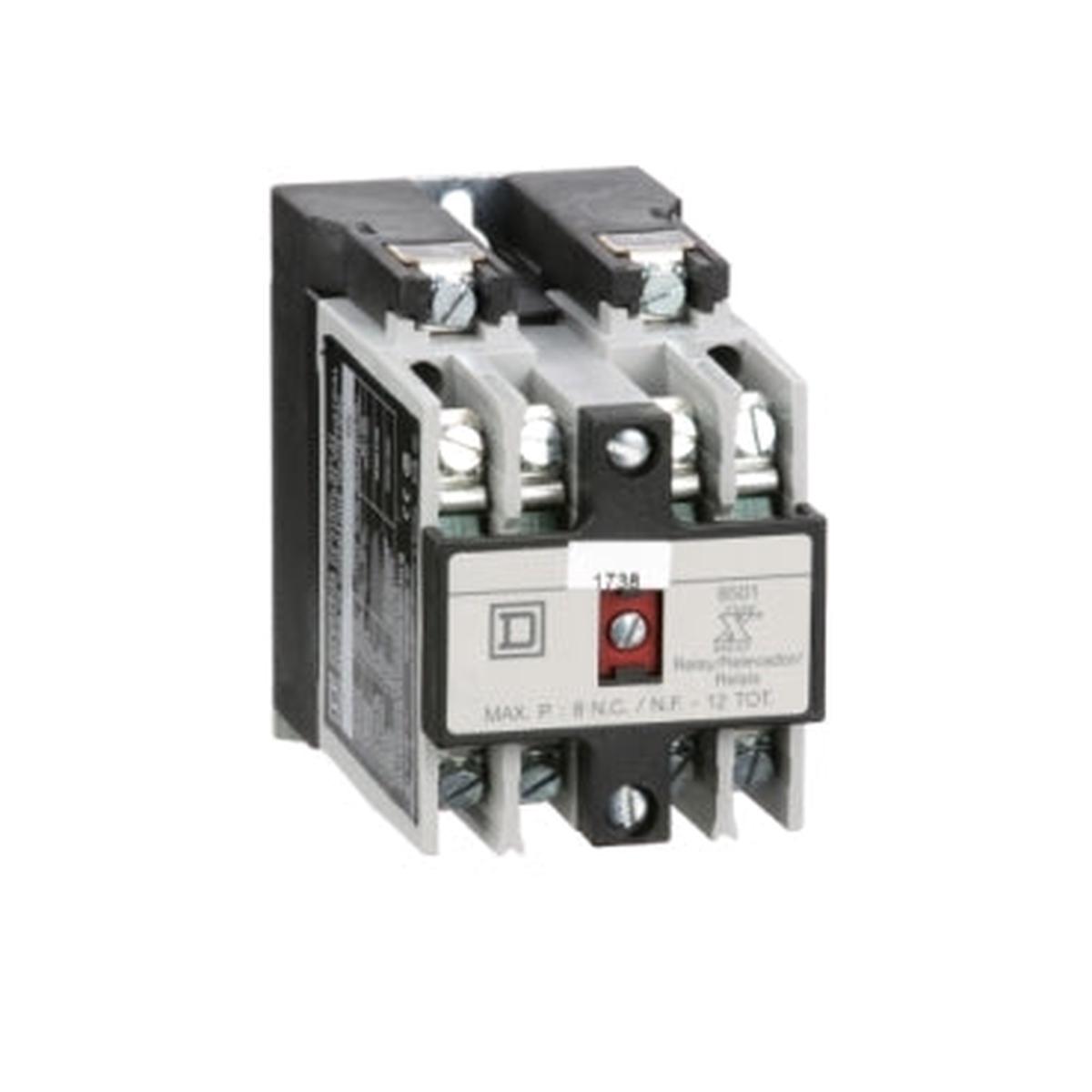

8501XO40V02 – Square D 10A 120VAC 4-Pole NEMA Control Relay Panel Mount

8501XO40V02

8501XO40V02 is a Square D 10 ampere, 4-pole NEMA control relay with a 120 VAC coil voltage designed for industrial motor control applications.This relay features a rugged, heavy-duty design with modular construction for flexibility and long service life. It has four normally open (4NO) contacts with a 10 amp continuous current rating and an A600 inductive contact rating at up to 600 VAC. The coil operates at 110/120 VAC at 50/60 Hz. The relay uses screw clamp terminals and offers straight-through wiring for easier installation and maintenance. It is UL listed and CSA certified, suitable for panel mounting.

• Manufacturer: Square D
• Part Number: 8501XO40V02
• Category: Motor Control Relay
• Amperage: 10 Amps continuous
• Coil Voltage: 110/120 VAC, 50/60 Hz
• Poles: 4 poles, 4 normally open contacts (4NO)
• Contact Rating: A600 inductive at 600 VAC
• Mounting Type: Panel mount
• Connection Type: Screw clamp terminals
• Series/Frame: 8501 Type X
• Certifications: UL listed, CSA certified
• Dimensions: Approx. 3.5 x 2.23 x 3.95 inches

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8501XO40V02
• Manufacturer : Square D
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory
• Section : Relays
• Family : Class 8501
• Type : XO

Product Data

• UPC : 785901537052
• GTIN : 00785901537052
• Country of Origin : Mexico
• Dimensions : 2.23 in x 3.5 in
• Weight : 2.16
• Certification : CSA Certified, RoHS Compliant, UL Listed
