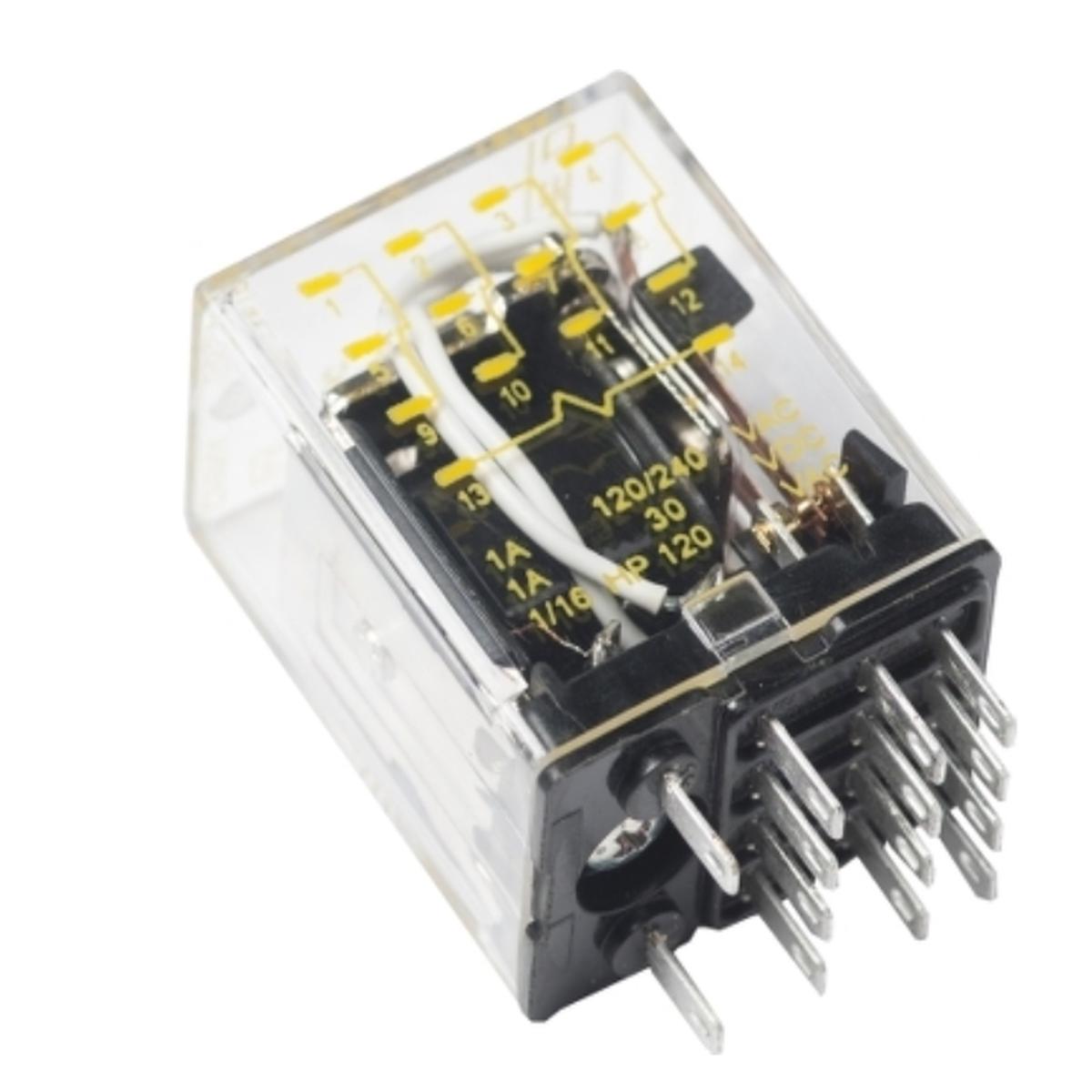

8501RS24V14 – Schneider Electric 24 VAC Coil 1A 4PDT Miniature Plug-in Relay

8501RS24V14

8501RS24V14 is a Schneider Electric miniature plug-in relay featuring a 24 VAC coil and 1 ampere current rating with 4 poles double throw (4PDT) contacts.This relay includes four normally open and four normally closed contacts rated for 3 amperes resistive at 277 VAC, 120 VAC, and 30 VDC, suitable for general purpose motor control and power switching applications. It is designed for socket mounting and offers reliable performance with a compact form factor.

• Coil Voltage: 24 VAC
• Contact Configuration: 4PDT (4 poles double throw)
• Current Rating: 1 Amp coil, 3 Amp resistive contacts
• Contact Type: 4 Normally Open (NO) and 4 Normally Closed (NC)
• Mounting Type: Plug-in socket mount
• Horsepower Rating: 1/16 HP
• Application: General purpose relay for motor control
• Manufacturer Series: Square D Type R
• Frequency: 50/60 Hz
• Durability: Long mechanical life with short stroke armature
• Certifications: IEC and NEMA compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8501RS24V14
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Relay

Product Data

• Weight : 0.84 lb
