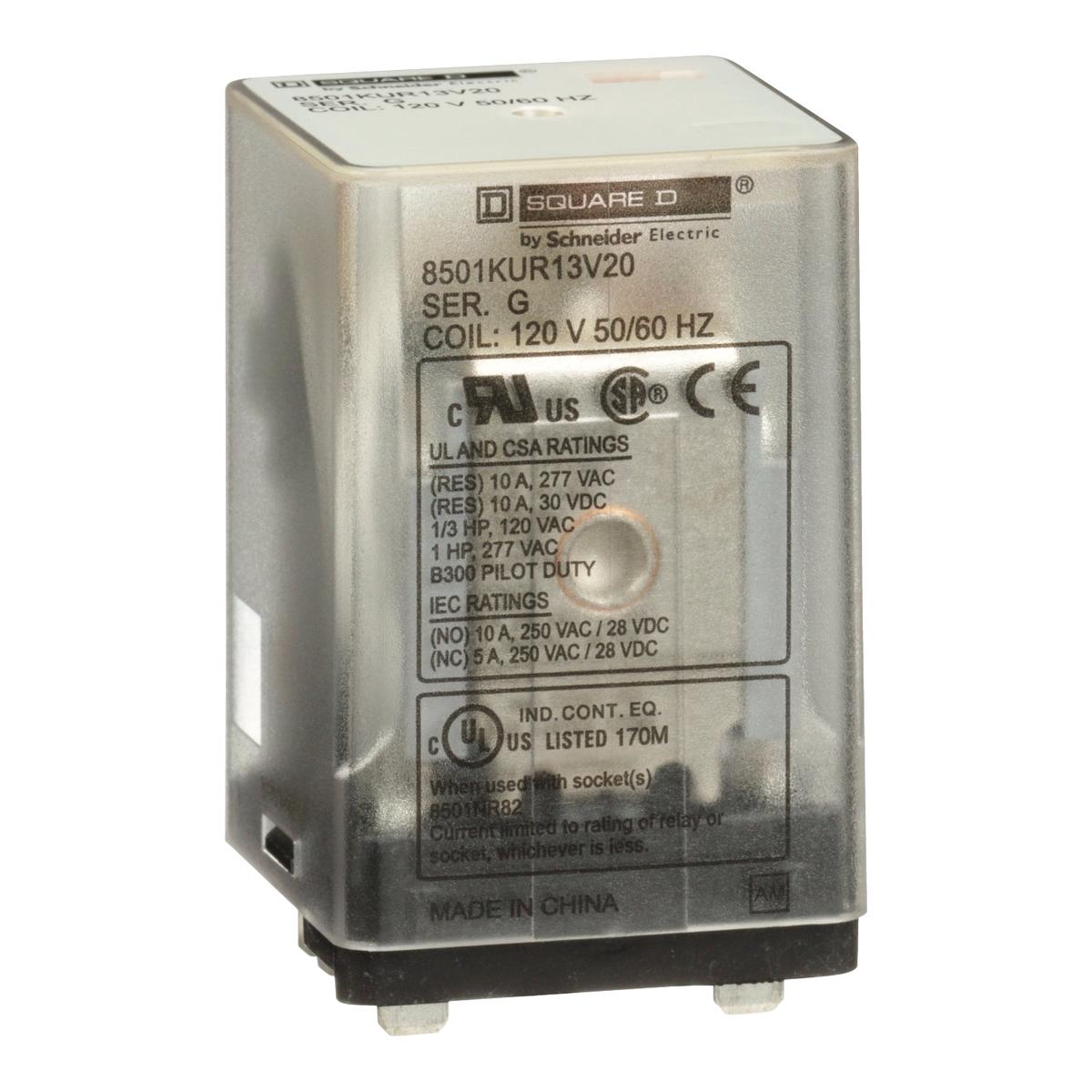

8501KUR13V20 – Square D General Purpose Plug-In Relay Blade 3PDT 120V AC 10A 250V AC Clear Cover

8501KUR13V20

8501KUR13V20 is a Square D general purpose plug-in relay blade designed for motor control applications with a 3PDT switch function and 120V AC coil voltage.This relay blade features a 3-pole double-throw (3PDT) switch configuration, rated for 10 amps at 250V AC, and supports motor loads up to 1 HP at 277V and 0.33 HP at 120V. It includes a clear cover for easy inspection and does not have an LED indicator. It is suitable for multi-pole switching applications and offers reliable performance in control circuits.

• Switch Function: 3PDT (3 Pole Double Throw)
• Control Circuit Voltage: 120V AC
• Current Rating: 10A at 250V AC
• Motor Rating: 1 HP at 277V, 0.33 HP at 120V
• Clear Protective Cover
• No LED Indicator
• Mounting Type: Plug-In
• Approvals: UL, CSA, CE
• Series: 8501K Relay Series

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8501KUR13V20
• Manufacturer : Square D
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory
• Voltage : 600
• Amperage : 800
• Phase : 3
• Poles : 3
• AIC rating : 50kA@480V
• Connection : Bolt-On
• Functions : LIT – Long-Time, Instantaneous and Targets
• Protection : Solid State

Product Data

• UPC : 785901978831
• GTIN : 785901978831
• Country of Origin : China
• Dimensions : 1.37 in x 2.25 in
• Weight : 0.2 lb
• Certification : CE Certified, CSA Certified, UL Listed
