8501KPR13V20 – Schneider Electric Square D 10A 120VAC Coil 3PDT Plug-In Relay 1 HP 277VAC Motor Control

8501KPR13V20

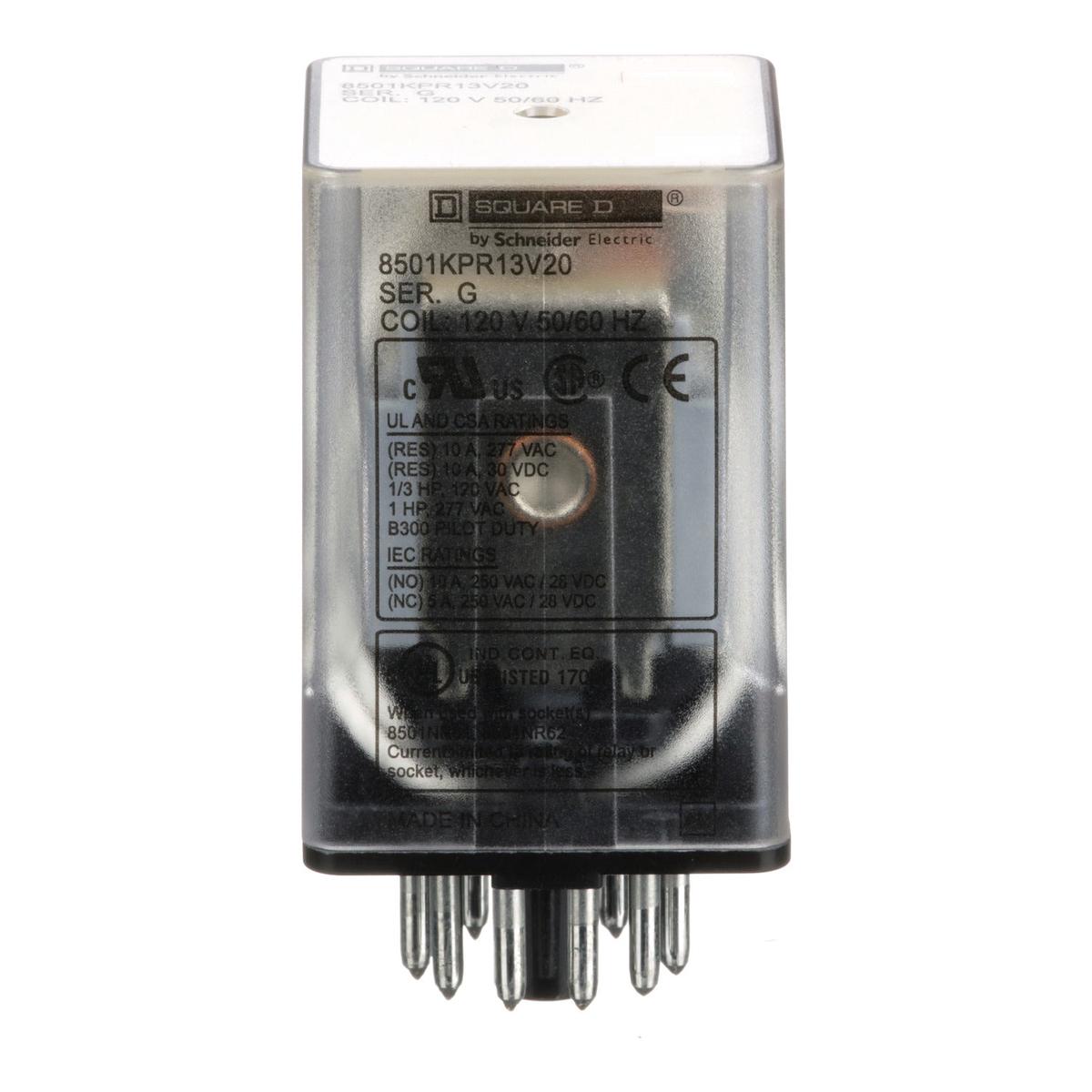

8501KPR13V20 is a Schneider Electric Square D plug-in relay designed for motor control applications with a 120 VAC coil and 3PDT contact configuration.

This tubular Type KP relay supports 1 HP motor rating at 277 VAC and 0.33 HP at 120 VAC. It features a 10 ampere contact rating at 277 VAC resistive and 10A at 28 VDC, with 3 poles double-throw (3PDT) contacts including 3 normally open and 3 normally closed contacts. The relay is suitable for AC or DC operation, has an 11-pin socket mount, and operates reliably in temperatures from -40F to 131F. It is UL 508 compliant for inductive control circuits with a 3 A breaking capacity at 120 VAC.

Key Specifications
• Manufacturer: Schneider Electric Square D
• Part Number: 8501KPR13V20
• Coil Voltage: 120 VAC
• Contact Configuration: 3PDT (3 poles double-throw)
• Contact Rating: 10 A at 277 VAC resistive, 10 A at 28 VDC
• Horsepower Rating: 1 HP at 277 VAC, 0.33 HP at 120 VAC
• Mounting Type: Plug-in, 11-pin socket
• Interrupt Rating: 3 A at 120 VAC inductive per UL 508
• Operating Temperature: -40F to 131F
• Series/Frame: Type KP tubular relay
• Certifications: UL 508 compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8501KPR13V20
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory
• Section : Relays
• Family : Class 8501

Product Data

• UPC : 785901219743
