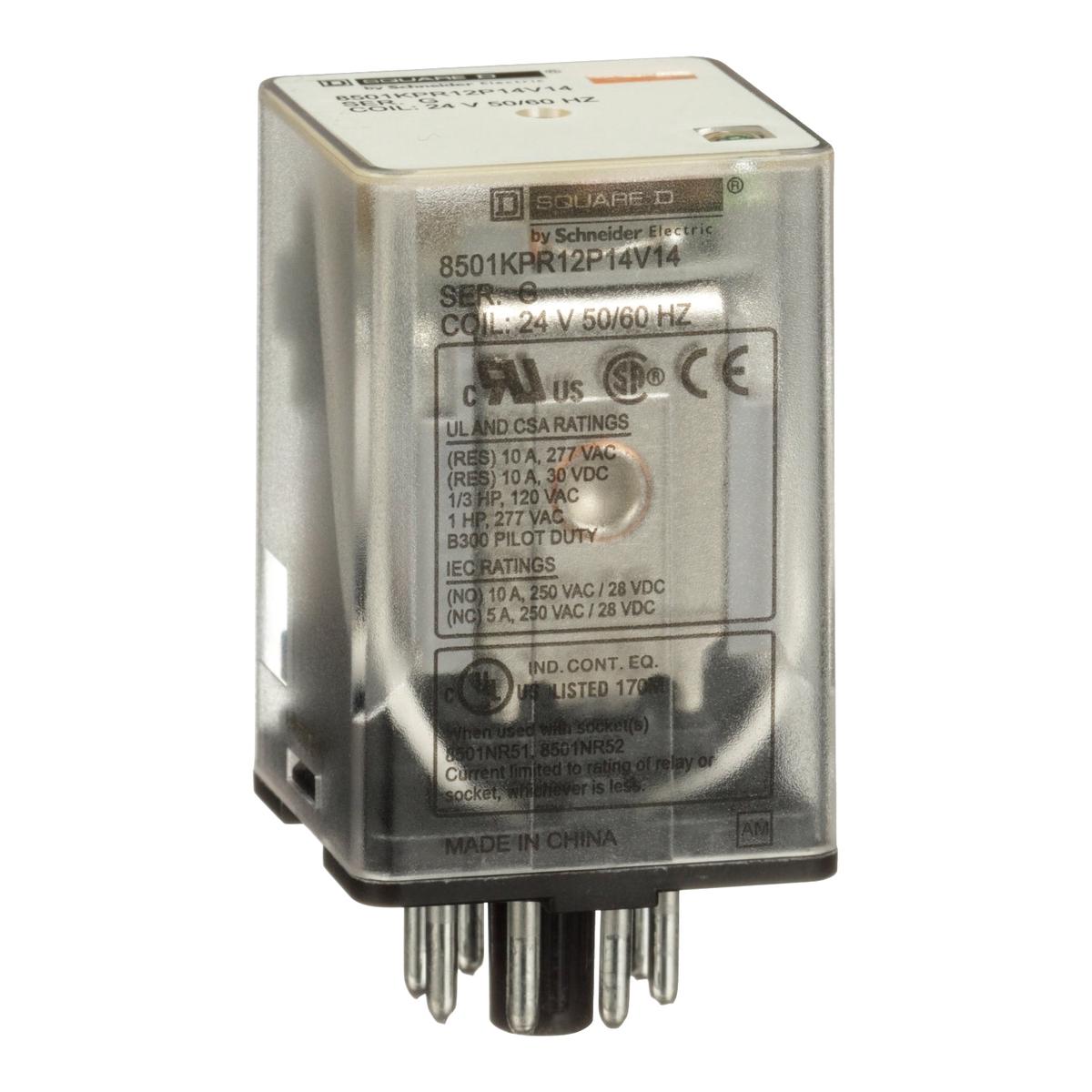

8501KPR12P14V14 – Square D 8501K General Purpose Plug-In Relay 10A 24VAC DPDT 2 Pole

8501KPR12P14V14

8501KPR12P14V14 is a Square D 8501K series general purpose plug-in relay designed for reliable motor control and industrial applications. This relay features a 24VAC coil, DPDT (2 Form C) contact configuration, and a 10A current rating. It is equipped with an LED indicator for visual status and is suitable for DIN rail or socket mounting. The relay is UL 508 certified and built for durability in demanding environments. This relay is ideal for use in control circuits requiring a robust and compact solution. The octal pin plug-in design allows for easy installation and replacement. The relay is rated for 1 HP at 277VAC and 0.33 HP at 120VAC, with a wide operating temperature range and a sealed enclosure for protection against dust and debris.

• Part Number: 8501KPR12P14V14
• Manufacturer: Square D
• Series: 8501K
• Coil Voltage: 24VAC
• Contact Form: DPDT (2 Form C)
• Number of Poles: 2
• Current Rating: 10A
• Mounting Type: DIN Rail/Socket
• Terminal Type: Octal Pin/Plug-In/Screw Clamp
• Enclosure Type: IP20/IP40
• Operating Temperature: -40 to 131F
• Indicator: LED Pilot Light
• Certifications: UL 508

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8501KPR12P14V14
• Manufacturer : Square D
• Brand : Square D
• Category : Motor Control
• Item Subcategory : General purpose relay
• Family : 8501K

Product Data

• UPC : 78590135269
• Country of Origin : China
• Dimensions : 2.66 in H x 1.4 in W x 1.4 in D
• Weight : 5.19
• Certification : CE Certified, CSA Certified, UL Listed
