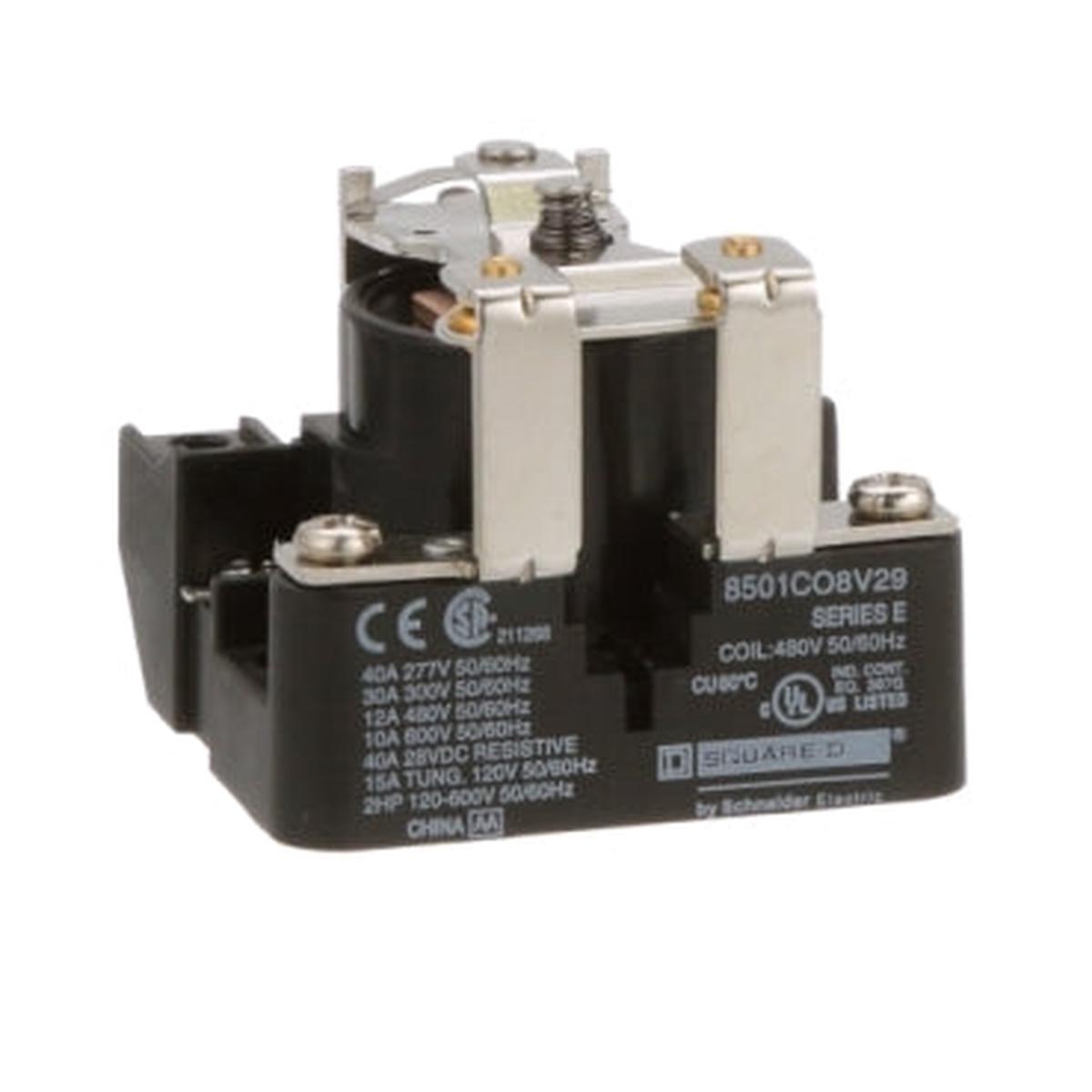

8501CO8V29 – Square D Power Relay Type C 2.0 HP 30A 480VAC Coil

8501CO8V29

8501CO8V29 is a Square D power relay designed for motor control applications with heavy duty contacts rated for single phase motors. This Type C relay features a 480 VAC nonreplaceable coil and is engineered to handle 2.0 HP motors at 120 VAC, 230 VAC, or 600 VAC operating conditions. The relay provides reliable switching performance for industrial motor control circuits and panel applications.

• Type: Power Relay, Type C
• Horsepower Rating: 2.0 HP
• Current Rating: 30A resistive at 300 VAC
• Contact Configuration: SPST (Single Pole Single Throw)
• Contact Type: 1 Normally Closed
• Coil Voltage: 480 VAC
• Coil Type: Nonreplaceable
• Motor Voltage Compatibility: 120 VAC, 230 VAC, 600 VAC
• Dimensions (HxWxD): 2.25 x 2.5 x 2.43 inches
• Weight: 0.53 lb
• Manufacturer: Schneider Electric (Square D)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8501CO8V29
• Manufacturer : Square D
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory
• Section : Relays
• Family : Class 8501
• Type : C

Product Data

• UPC : 785901089766
• GTIN : 00785901089766
• Country of Origin : China
• Dimensions : Depth 14.84 in (377 mm) Width 13.39 in (340 mm) Height 46.85 in (1190 mm)
• Weight : 0.53
