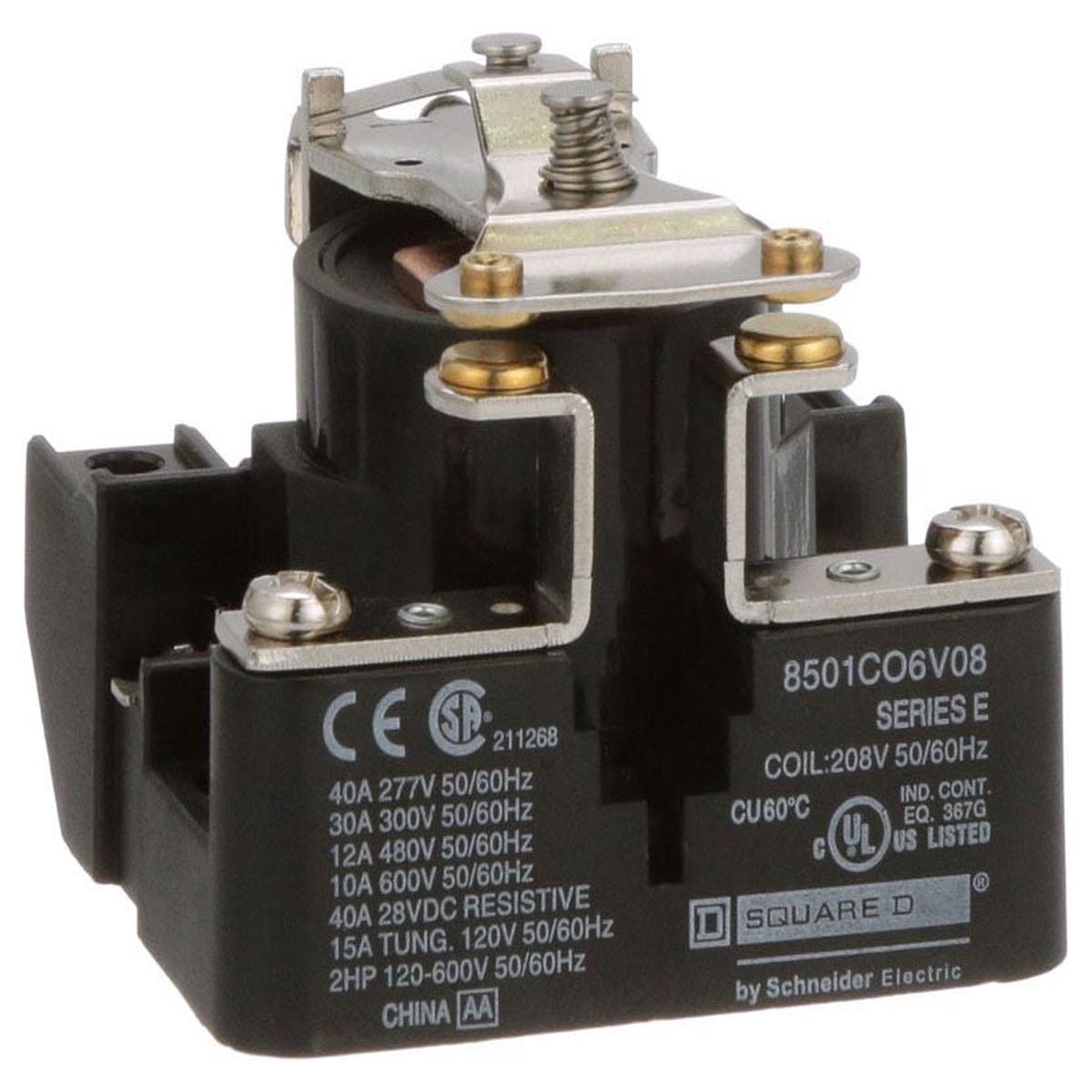

8501CO6V08 – Square D 30A 208VAC Coil Power Relay Type C SPST 1 Pole Motor Control

8501CO6V08

8501CO6V08 is a Square D power relay designed for motor control applications with a 208 VAC coil voltage and 30 amp resistive contact rating.

This Type C relay features a single pole single throw (SPST) normally open contact configuration, suitable for controlling small single-phase motors up to 2.0 HP. It has a chassis mounting type and is UL Listed and CSA Approved for safety and reliability. The relay is constructed with riveted contacts for enhanced mechanical life and durability.

Key Specifications
• Coil Voltage: 208 VAC
• Contact Current Rating: 30 A resistive at 300 VAC
• Contact Form: SPST (1 Form A), 1 normally open contact
• Motor HP Rating: 2.0 HP single-phase
• Mounting Type: Chassis mount
• Series/Frame: 8501 Type C
• UL Listed and CSA Approved
• Riveted contact construction for durability
• Discontinued product, no direct replacement

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8501CO6V08
• Manufacturer : Square D
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory
• Voltage : 600
• Amperage : 1200
• Phase : 3
• Poles : 3
• AIC rating : 50kA@480V
• Connection : Bolt-On
• Functions : LSI – Long-Time, Short-Time and Instantaneous
• Protection : Solid State

Product Data

• UPC : 785901059561
• Weight : 5.19
