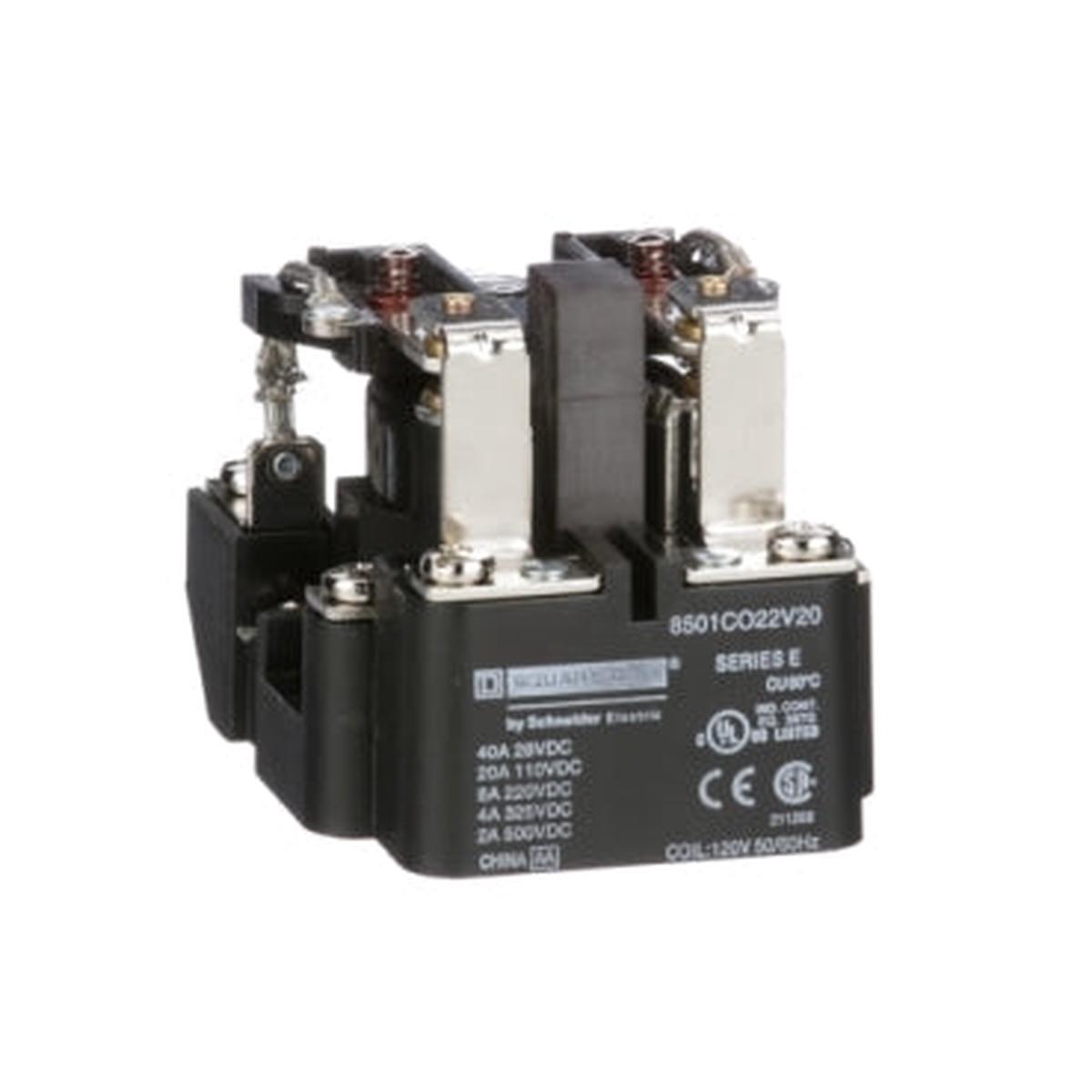

8501CO22V20 – Square D 20A 120VAC DPDT 2NO/2NC Power Relay, Type C, 8501 Series, Open-Frame, Motor Control

8501CO22V20

8501CO22V20 is a Square D open-frame power relay designed for motor control and light load switching applications.

This Type C, DPDT relay features 2 normally open and 2 normally closed contacts, making it suitable for controlling small single-phase motors and other light electrical loads. It is part of the Square D 8501 series, known for reliability in industrial and commercial settings.

Key Specifications

• Amperage: 20A resistive at 110 VDC
• Voltage: 120 VAC coil, 50/60 Hz
• Poles: 2 (DPDT)
• Mounting Type: Open-frame
• Interrupt Rating: Not specified in available data
• Series/Frame: 8501
• Trip Unit: Not applicable (relay, not circuit breaker)
• Certifications: Not specified in available data
• Contact Configuration: 2 NO / 2 NC
• Application: Motor control, light load switching
• Manufacturer: Square D (Schneider Electric)
• Product Type: Power Relay, Type C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8501CO22V20
• Manufacturer : Square D
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory
• Section : Relays
• Family : Class 8501
• Type : C

Product Data

• UPC : 785901052241
• Country of Origin : China
• Dimensions : 2.5 in
• Weight : 5
• Certification : UL listed file E78351 CCN NLDX; CSA; CE
