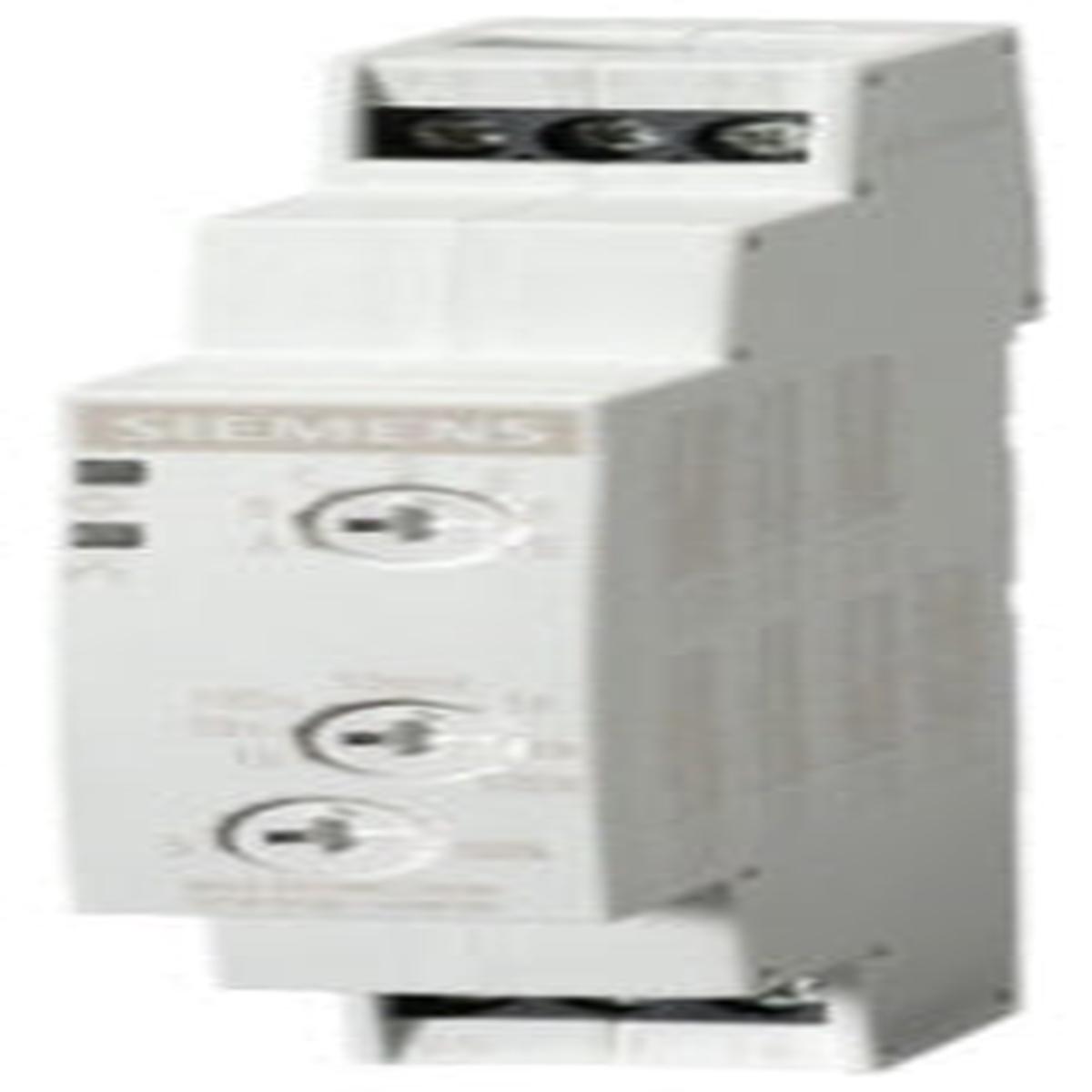

7PV15081AW30 – Siemens Multifunction Timing Relay 1 Changeover Contact 12-240V AC/DC 3A Screw DIN Rail Mount

7PV15081AW30

7PV15081AW30 is a Siemens multifunction timing relay designed for versatile timing applications with a wide voltage range and reliable contact configuration.

This timing relay features one changeover contact (1 Form C) with seven selectable functions and seven time ranges from 0.05 seconds to 100 hours. It operates on a control supply voltage from 12 to 240 V AC/DC and includes an LED indicator for status. The relay has a screw terminal connection and mounts easily on a 35 mm DIN rail with a snap-on design. It supports a contact current rating of 3 amps at 24/250 V AC and 1 amp at 24 V DC, suitable for various motor control and automation tasks.

• Contact Configuration: 1 changeover (SPDT, Form C)
• Operating Voltage: 12 to 240 V AC/DC
• Timing Range: 0.05 seconds to 100 hours
• Contact Current Rating: 3 A at 24/250 V AC, 1 A at 24 V DC
• Mounting Type: 35 mm DIN rail, snap-on
• Terminal Type: Screw connection
• LED status indicator included
• Multifunction timing relay with 7 functions

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 7PV15081AW30
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Timers
• Voltage : 12 to 240 /DC 24/240

Product Data

• UPC : 40892552676
• GTIN : 040892552676
• Dimensions : 90 mm H x 17.5 mm W x 66.7 mm D
• Weight : 0.163 lb
