500-FOB930
Product DescriptionMagnetic Motor Contactor, NEMA Size 5, 270 Amps, 3 Poles, 440/480V AC Coil, Motor Voltage 575V AC Max, Open Style No Enclosure, Non-Reversing, Max HP Ratings: 75 @ 200VAC, 100 @ 230VAC, 150 @ 415VAC, 200 @ 575VAC, Line...
- Z233497648388
Product Description

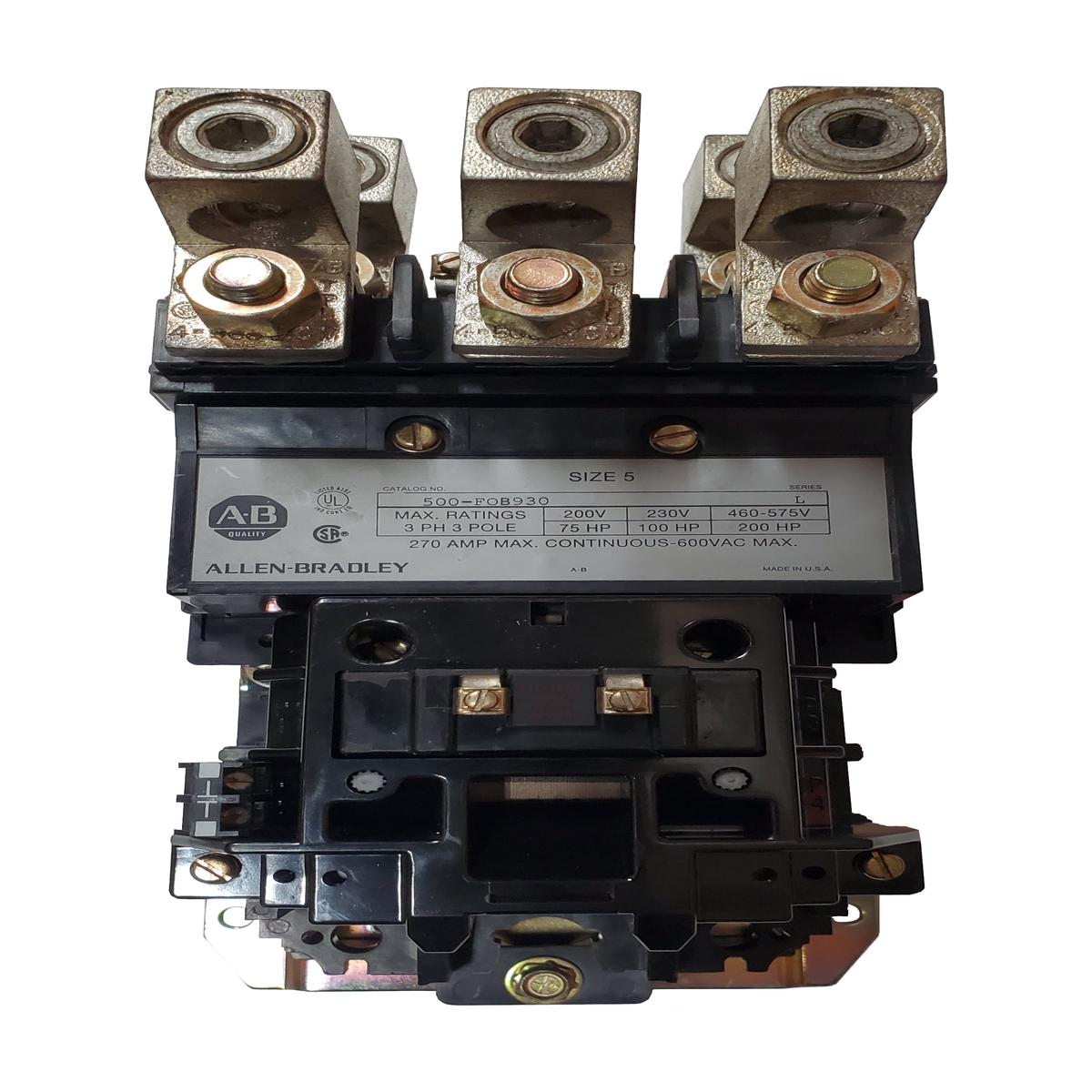

Magnetic Motor Contactor, NEMA Size 5, 270 Amps, 3 Poles, 440/480V AC Coil, Motor Voltage 575V AC Max, Open Style No Enclosure, Non-Reversing, Max HP Ratings: 75 @ 200VAC, 100 @ 230VAC, 150 @ 415VAC, 200 @ 575VAC, Line and Load End Terminals Standard
Are you purchasing accessories and your motor starter in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Allen-Bradley |
|---|---|
| Warranty | One Year |
| Amperage | 270 |
| Coil Voltage | 440/480 |
| Phase | 3 |
| Voltage Max | 575 |
| Nema Size | 5 |
| Reversing or Non-Reversing | Non-Reversing |
| Maximum Ratings | 75 HP @ 200VAC, 100 HP @ 230VAC, 150 HP @ 415VAC, 200 HP @ 575VAC |
| Standard Lug Type | Line and Load |
