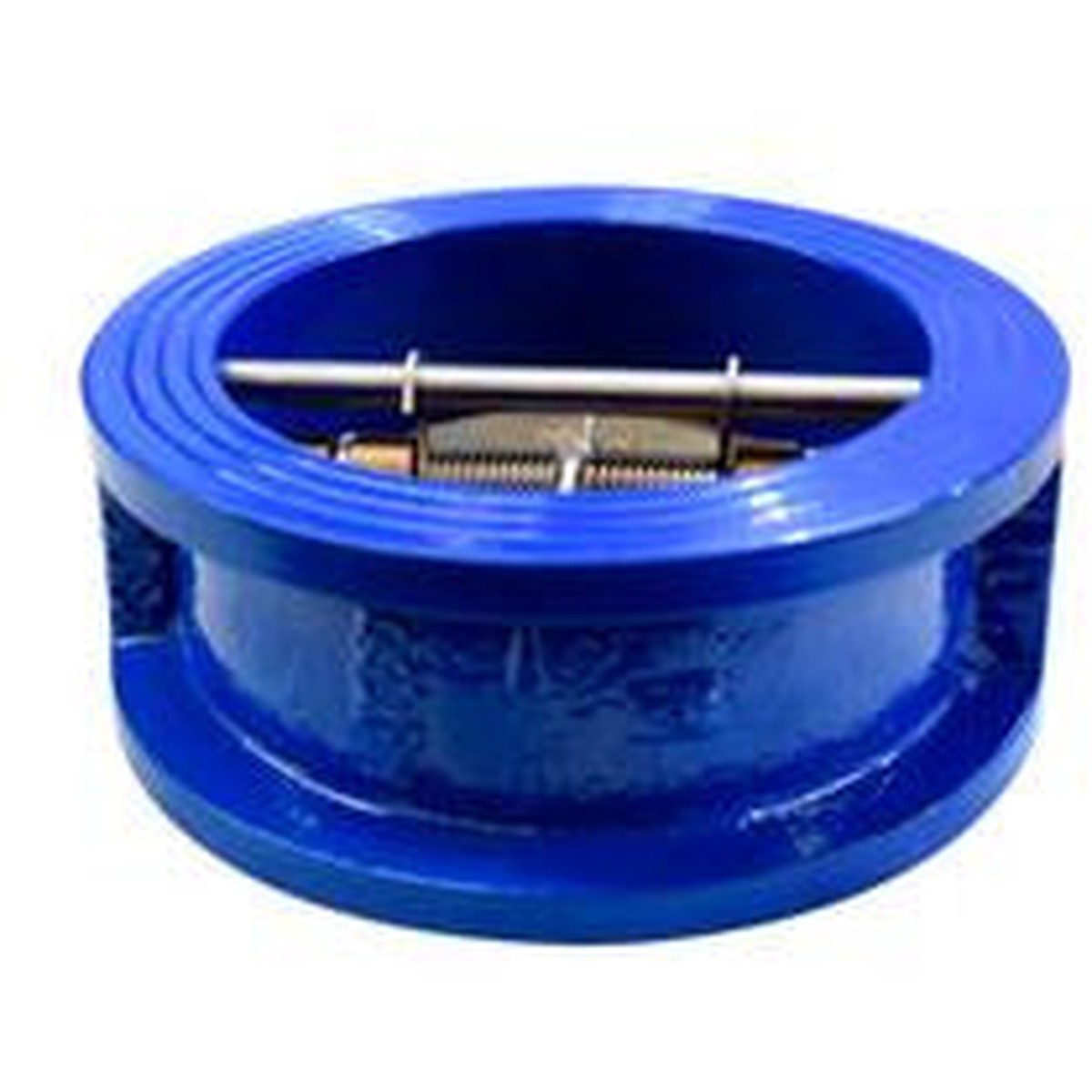

4 Double Door Wafer Check Valve
The 4 Double Door Wafer Check Valve is a compact, lightweight, and high-performance valve designed to prevent backflow in piping systems. It features two spring-loaded plates (doors) that automatically close when the flow stops, ensuring minimal pressure drop and quick...
- UQ7744020923
The 4 Double Door Wafer Check Valve is a compact, lightweight, and high-performance valve designed to prevent backflow in piping systems. It features two spring-loaded plates (doors) that automatically close when the flow stops, ensuring minimal pressure drop and quick shutoff. The wafer-style body allows for easy installation between standard flanges, making it a cost-effective and space-saving solution for various applications.
| Specification | Details |
|---|---|
| TYPE | Double Door Wafer Check Valve |
| DESIGN | Compact wafer design space-saving and easy to install between flanges |
| MATERIAL | Iron for strength and impact resistance |
| WEIGHT | 13.000 |
| ADDITIONAL INFORMATION | 64 mm Length, 162 mm OD, 117 x 84 mm ID, Carbon Steel Rings and Countersunk Hex Head Screws, 304 Stainless Steel Spring, 420 Stainless Steel Shaft, EPDM Seal Ring |
| BODY MATERIAL | Ductile Iron |
| DISC MATERIAL | C954 Aluminum Brance |
| DOMESTIC/IMPORT | Import |
| NOMINAL SIZE | 4″ |
| SEAL MATERIAL | PTFE |
| SEAT MATERIAL | EPDM |
| CASE | 20 |
| APPLICATIONS | Ideal for Water & Wastewater Treatment, HVAC & Cooling Systems,Fire Protection Systems, Industrial & Chemical Processing, Oil & Gas Pipelines |
| BRAND | Midland Industries |
