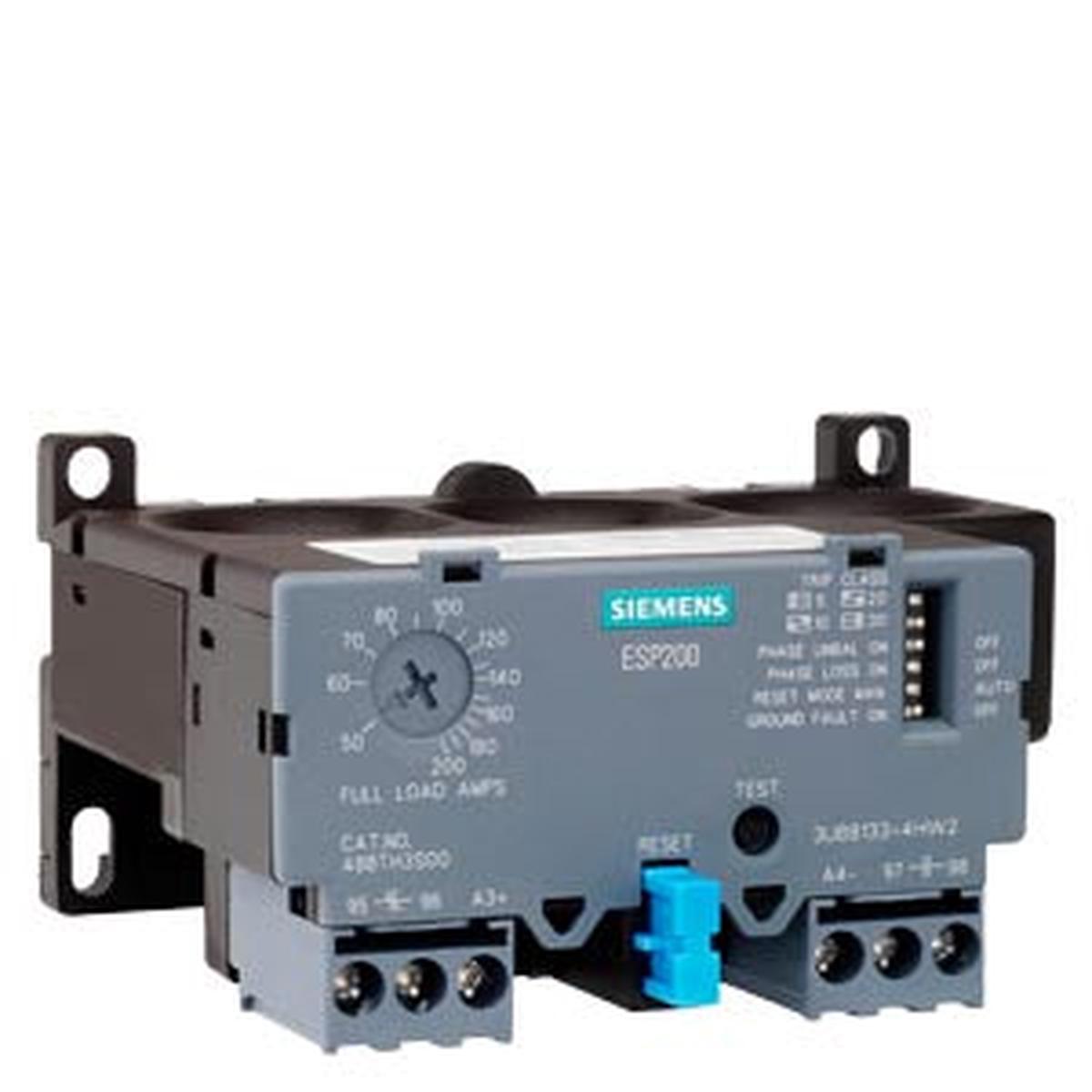

3UB81334GW2 – Siemens 25-100 Amp 3-Pole Solid State Overload Relay ESP200 Frame B DIN Rail Mount

3UB81334GW2

3UB81334GW2 is a Siemens solid state overload relay designed for motor protection with a 25 to 100 amp range and 3 poles.This ESP200 series device features electronic trip type with selectable trip classes 5, 10, 20, or 30, suitable for single phase and polyphase motors.

• Amperage: 25 to 100 Amp
• Voltage: Suitable for single and polyphase motors
• Number of Poles: 3
• Mounting Type: DIN Rail
• Interrupt Rating: B600R300 contact rating
• Series/Frame: ESP200, Frame B
• Trip Unit: Electronic, selectable trip class
• Reset Type: Auto, manual, remote
• Special Features: Phase loss and phase unbalance protection
• Operating Temperature: -25 to 60 C
• Certifications: cUL CSA
• Country of Origin: Germany

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3UB81334GW2
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : ESP200
• Type : 3UB8
• Relay Style : Solid State
• Amperage Maximum : 100
• Amperage Minimum : 25

Product Data

• UPC : 662643854923
• GTIN : 00662643854923
• Country of Origin : Germany
• Dimensions : 4.803 x 4.646 x 2.559 inch
• Weight : 0.772
• Certification : REACH Art 33 Duty to Inform According to the Current List of Candidates Lead CAS-No. 7439-92-1 Greater Than 0, 1 % (w/w), RoHS 07/01/2006
