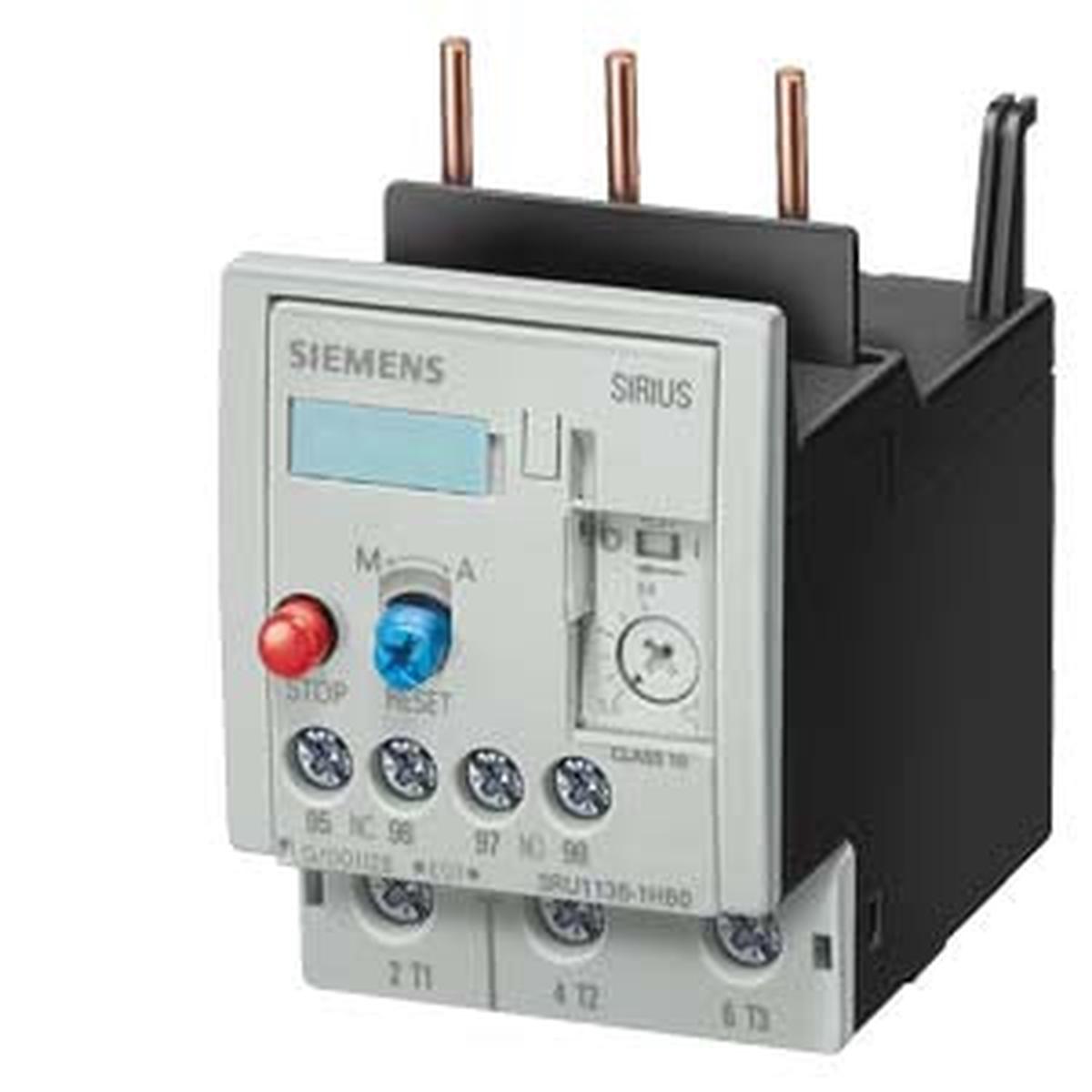

3RU1136-4DB0 – Siemens Thermal Overload Relay 18-25A Class 10 Size S2 Screw Terminal Mounting

3RU1136-4DB0

3RU1136-4DB0 is a Siemens thermal overload relay designed for motor protection with an adjustable current range of 18 to 25 amps.

This overload relay features Class 10 tripping characteristics and is intended for use with Size S2 contactors. It supports both manual and automatic reset functions and uses screw terminals for main and auxiliary circuit connections. The relay offers protection against phase loss and has an IP20 protection class on the front. It is rated for a surge voltage resistance of 690 V and a shock resistance of 8g/10 ms.

Key Specifications
• Amperage: Adjustable 18-25 A
• Trip Class: Class 10
• Mounting Type: Screw terminal
• Size/Frame: Size S2
• Reset Type: Manual and automatic reset
• Protection Class: IP20 (front)
• Surge Voltage Resistance: 690 V
• Shock Resistance: 8g / 10 ms
• Auxiliary Circuit Connection: Screw terminal
• Phase Loss Sensitivity: Yes

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3RU1136-4DB0
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : Sirius
• Type : 3RU11
• Relay Style : Thermal
• Amperage Maximum : 25
• Amperage Minimum : 18

Product Data

• UPC : 075455441248
• GTIN : 04011209300651
• Weight : 0.7326
