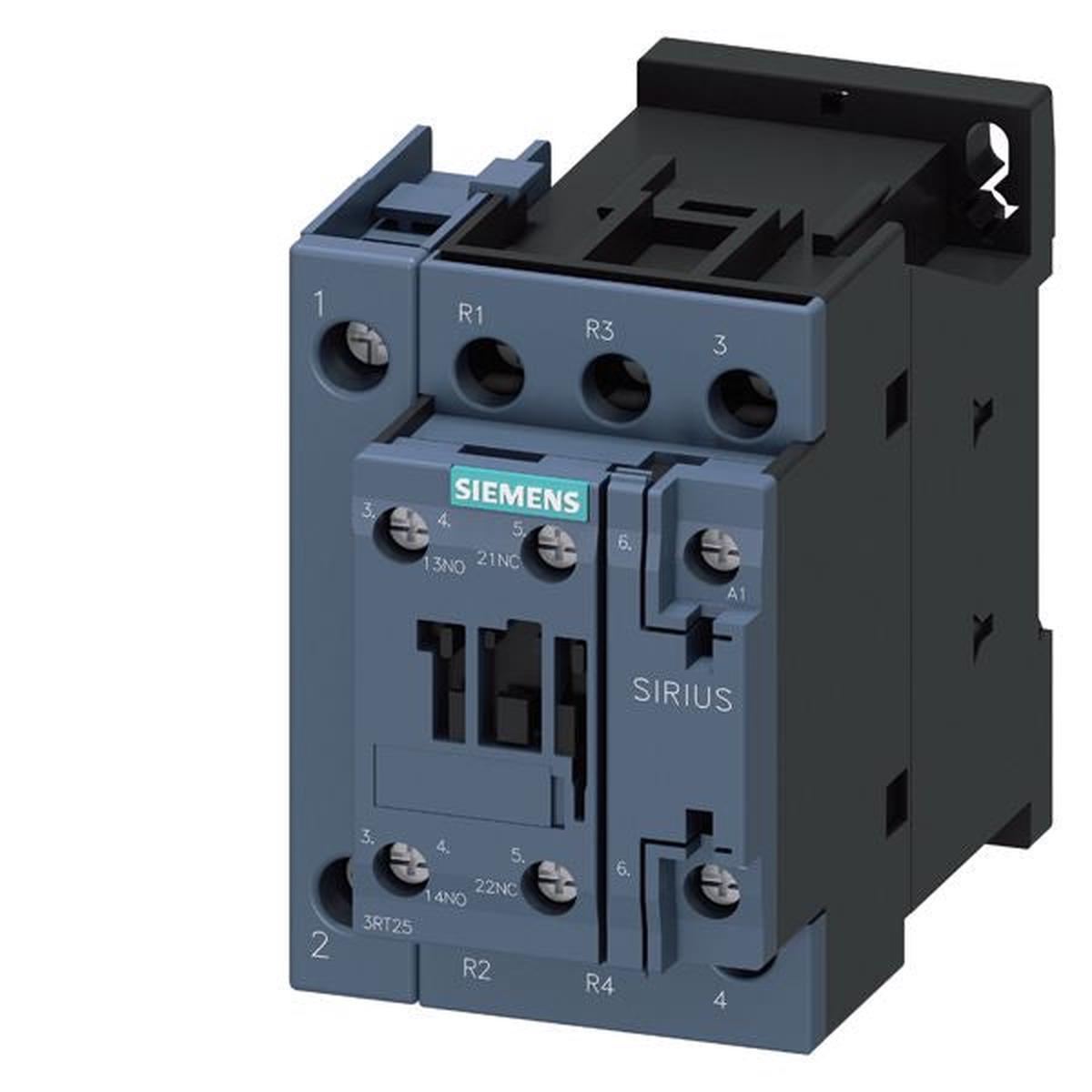

3RT2526-1AF00 – Siemens Power Contactor AC-3 25A 11kW 4-Pole 110V

3RT2526-1AF00

3RT2526-1AF00 is a Siemens power contactor designed for AC-3 duty cycle applications with a rated current of 25 amperes at 400 volts, delivering 11 kilowatts of switching capacity. This four-pole contactor features a 110 volt AC coil operating at 50 Hz and includes main contacts configured as 2 NO + 2 NC (2 normally open and 2 normally closed) with auxiliary contacts of 1 NO + 1 NC for flexible control logic integration. The contactor utilizes screw terminal connections for secure wiring and operates reliably across a temperature range of -25C to 60C, with a maximum switching voltage rating of 690 VAC.

• Rated Current: 25 A AC-3
• Power Rating: 11 kW at 400 V
• Poles: 4-pole configuration
• Coil Voltage: 110 V AC, 50 Hz
• Main Contacts: 2 NO + 2 NC
• Auxiliary Contacts: 1 NO + 1 NC
• Termination: Screw Terminal
• Operating Temperature: -25C to 60C
• Maximum Switching Voltage: 690 VAC

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3RT2526-1AF00
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Sirius
• Type : 3RT25
• Voltage : 600
• Amperage : 25
• Phase : 3
• Poles : 4
• Coil Voltage Maximum : 110

Product Data

• UPC : 662643916904
• GTIN : 00662643916904
• Weight : 1
