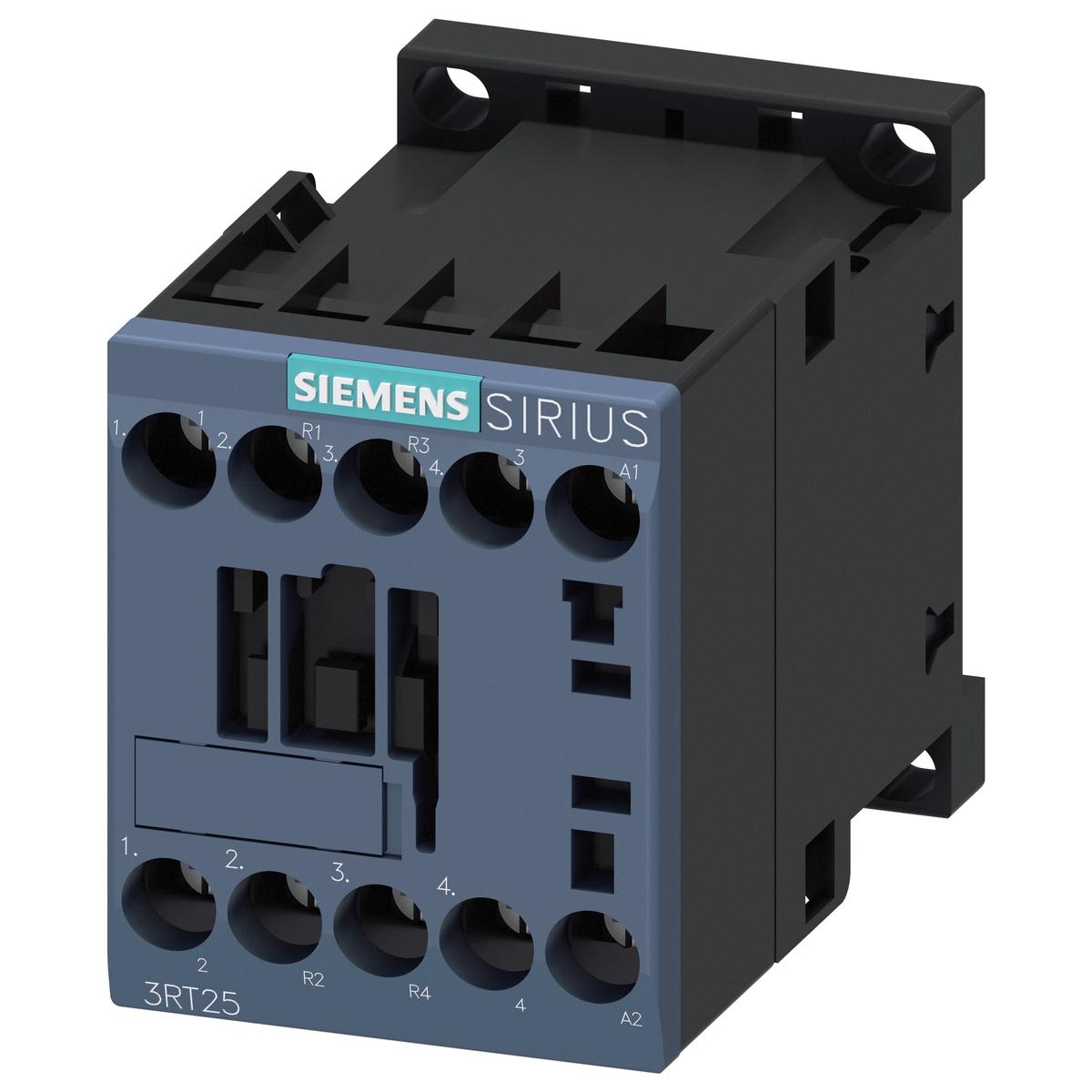

3RT25181AK60 – Siemens 16A 4-Pole S00 Frame Motor Contactor 110/120V AC Coil, Screw Terminal

3RT25181AK60

3RT25181AK60 is a Siemens 4-pole motor contactor designed for reliable motor control applications with a 16 ampere rating and 110/120V AC coil voltage.This S00 frame contactor supports AC-3 utilization with a 7.5 kW rating at 400 V and AC-1 rating of 22 A. It features a coil power rating of 43 VA pickup and 6.5 VA holding at 50/60 Hz, with screw terminal connections and a compact 57.5 mm H x 45 mm W x 73 mm D dimension. The contactor includes 2 normally open and 2 normally closed auxiliary contacts, suitable for reversing contactor applications. It is designed for DIN rail or vertical mounting and operates reliably in temperatures from -25 to 60 degrees Celsius.

Key Specifications
• Current Rating: 16 A
• Number of Poles: 4
• Coil Voltage: 110/120 V AC, 50/60 Hz
• Frame Size: S00
• Power Rating: 7.5 kW at 400 V (AC-3)
• Contact Configuration: 2 NO + 2 NC auxiliary contacts
• Mounting Type: DIN rail / vertical mount
• Terminal Type: Screw terminals
• Operating Temperature: -25C to 60C
• Coil Power: 43 VA pickup, 6.5 VA holding
• Enclosure Rating: IP20
• Operating Cycles: 30,000,000

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3RT25181AK60
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Contactor

Product Data

• UPC : 662643916775
• Country of Origin : Germany
• Dimensions : 2.421 x 1.969 x 3.051 inch
• Weight : 0.516 lb
• Certification : REACH Art 33, WEEE (2012/19/EU)
