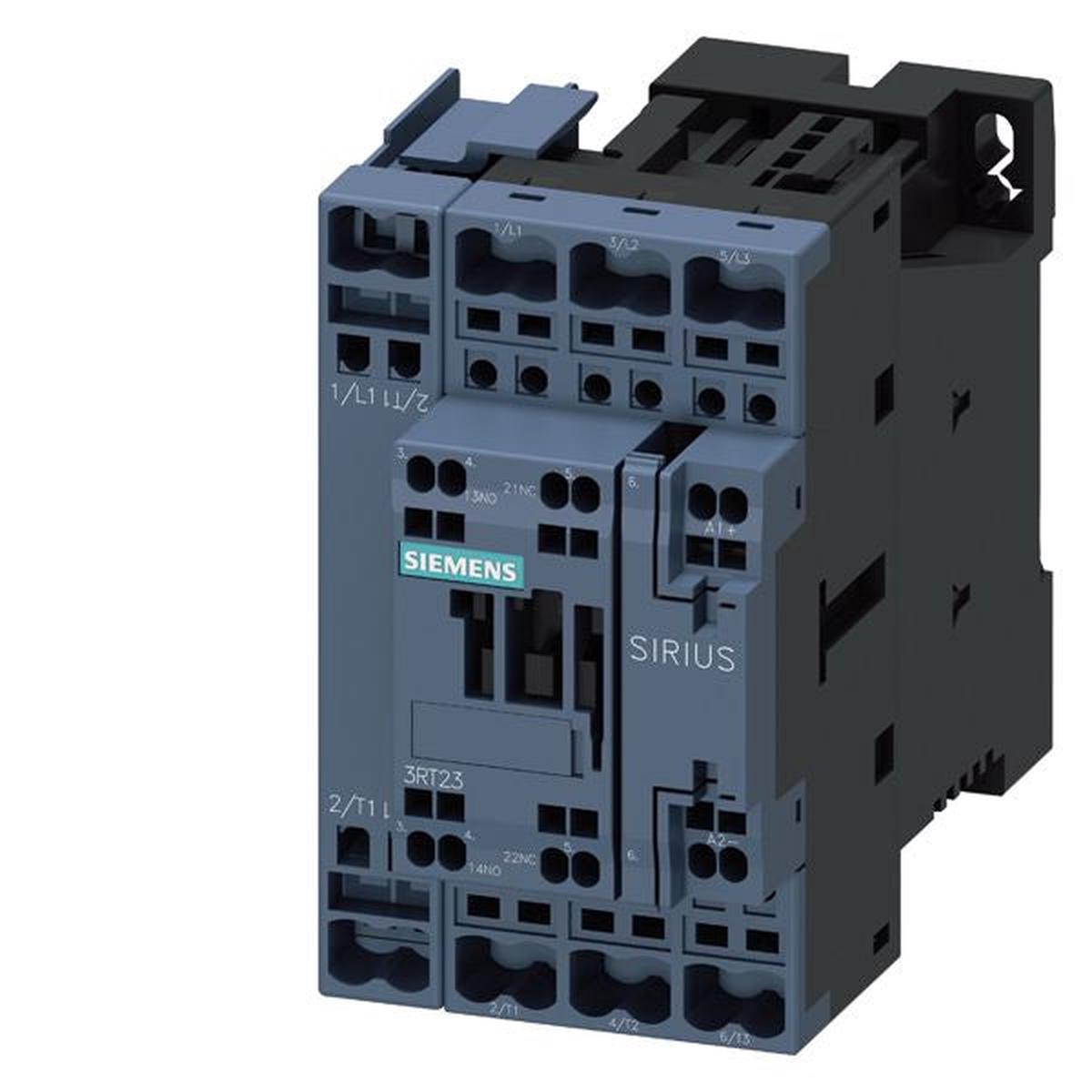

3RT2327-2BG40 – Siemens SIRIUS 4-Pole AC-1 Contactor 50A 400V 125V DC

3RT2327-2BG40

3RT2327-2BG40 is a Siemens SIRIUS power contactor designed for AC-1 switching applications with a 50A rating at 400V and 125V DC coil voltage. This 4-pole contactor features auxiliary contacts (1 NO + 1 NC) and is rated for operation at 40C ambient temperature with a maximum switching voltage of 690VAC. The unit is housed in size S0 frame and equipped with spring-loaded terminals for secure connections.

• Manufacturer: Siemens
• Part Number: 3RT2327-2BG40
• Contactor Type: AC-1 Power Contactor
• Current Rating: 50A at 400V (AC-1); 15.5A at 400V (AC-3/AC-4)
• Coil Voltage: 125V DC
• Number of Poles: 4
• Auxiliary Contacts: 1 NO + 1 NC
• Frame Size: S0
• Terminal Type: Spring-Loaded
• Maximum Switching Voltage: 690VAC
• Operating Temperature Range: -25C to 60C
• Mounting: 35mm DIN Rail (Screw/Snap-On, Vertical)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3RT2327-2BG40
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Sirius
• Type : 3RT23
• Voltage : 600
• Amperage : 42
• Phase : 3
• Poles : 4
• Coil Voltage Maximum : 125

Product Data

• UPC : 004089263501
• GTIN : 00040892635010
• Weight : 1
