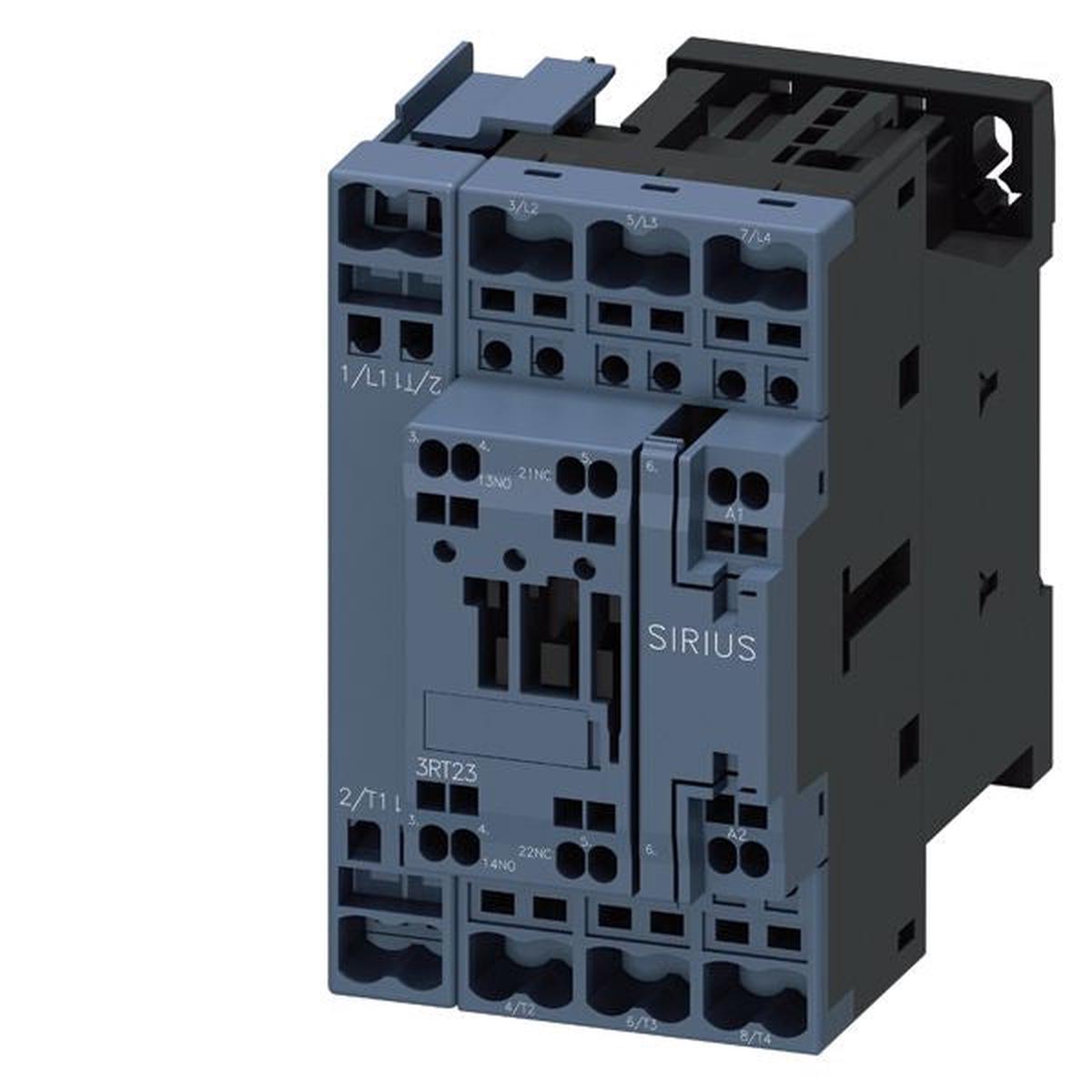

3RT2326-2AL20 – Siemens 40A 4-Pole 230V AC Motor Contactor Size S0 with 1 NO + 1 NC Auxiliary Contacts

3RT2326-2AL20

3RT2326-2AL20 is a Siemens 4-pole motor contactor designed for reliable switching of resistive and motor loads with a 40 Amp AC-1 rating at 230V AC.

This contactor features a Size S0 frame with spring-loaded terminals, suitable for control supply voltages of 230V AC at 50/60 Hz. It includes 1 normally open (NO) and 1 normally closed (NC) auxiliary contact for additional control circuit flexibility. The device is rated for AC-1 operation at 40 A and 400 V at 40C ambient temperature, making it ideal for industrial motor control applications.

• Manufacturer: Siemens
• Part Number: 3RT2326-2AL20
• Current Rating: 40 A (AC-1)
• Voltage Rating: 230 V AC control supply, 400 V AC operational
• Number of Poles: 4
• Auxiliary Contacts: 1 NO + 1 NC
• Frame Size: S0
• Terminal Type: Spring-loaded
• Frequency: 50/60 Hz

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3RT2326-2AL20
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Sirius
• Type : 3RT23
• Voltage : 600
• Amperage : 35
• Phase : 3
• Poles : 4
• Coil Voltage Maximum : 230

Product Data

• UPC : 051712795944
• GTIN : 00051712795944
• Weight : 1
