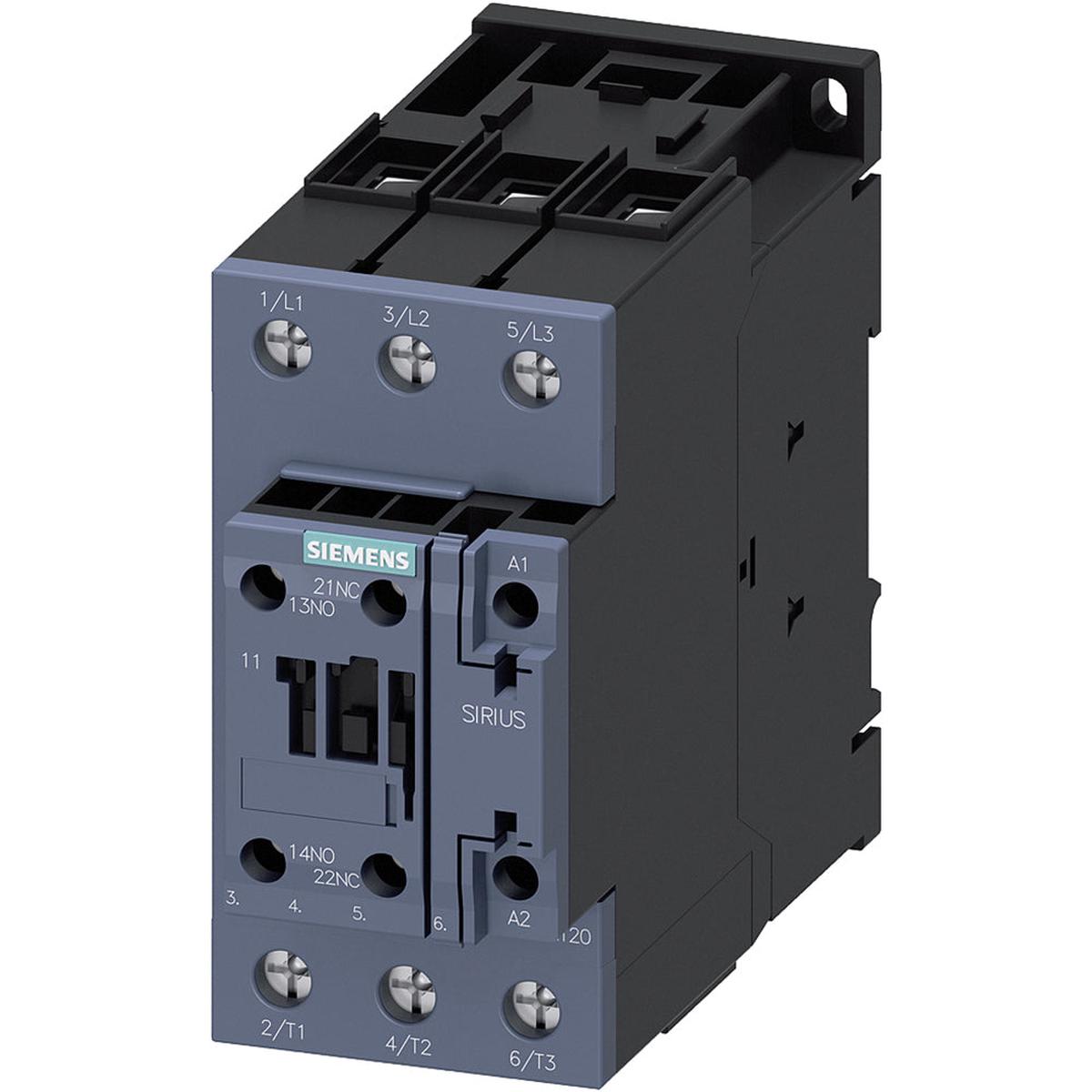

3RT20361AP60 – Siemens 3 Pole 50A 690V AC Motor Contactor S2 Frame 220/240V Coil

3RT20361AP60

3RT20361AP60 is a Siemens Sirius 3-pole motor contactor designed for reliable motor control applications.This Siemens 3RT20361AP60 contactor features a 50A rated current capacity at 690V AC, suitable for three-phase motor control. It includes a 220/240V AC coil voltage compatible with 50/60 Hz supply, and is built on the S2 frame size. The contactor offers 1 normally open (NO) and 1 normally closed (NC) auxiliary contacts and is designed for vertical mounting with screw terminals. It supports AC-3 utilization category with a power rating of up to 22 kW at 400V. The enclosure rating is IP20.

• Rated current: 50 A at 690 V AC
• Number of poles: 3
• Coil voltage: 220/240 V AC, 50/60 Hz
• Frame size: S2
• Auxiliary contacts: 1 NO + 1 NC
• Mounting type: Vertical
• Utilization category: AC-3
• Power rating: 22 kW at 400 V
• Enclosure rating: IP20

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3RT20361AP60
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Sirius
• Type : 3RT20
• Voltage : 690
• Amperage : 50
• Phase : 3
• Poles : 3
• Horse Power : HP @ 3 Phase – 208V 15 hp HP @ 3 Phase – 240V 15 hp HP @ 3 Phase – 480V 40 hp
• Aux Contacts : 1NO/1NC
• Coil Voltage Maximum : 240
• Full Load Amps : Full Load Amps-Inductive 52A Full Load Amps-Resistive 70A

Product Data

• UPC : 887621916510
• GTIN : 00887621916510
• Country of Origin : Germany
• Dimensions : 4.823 x 2.441 x 5.591 inch
• Weight : 2.185
• Certification : REACH Art 33, WEEE (2012/19/EU)
