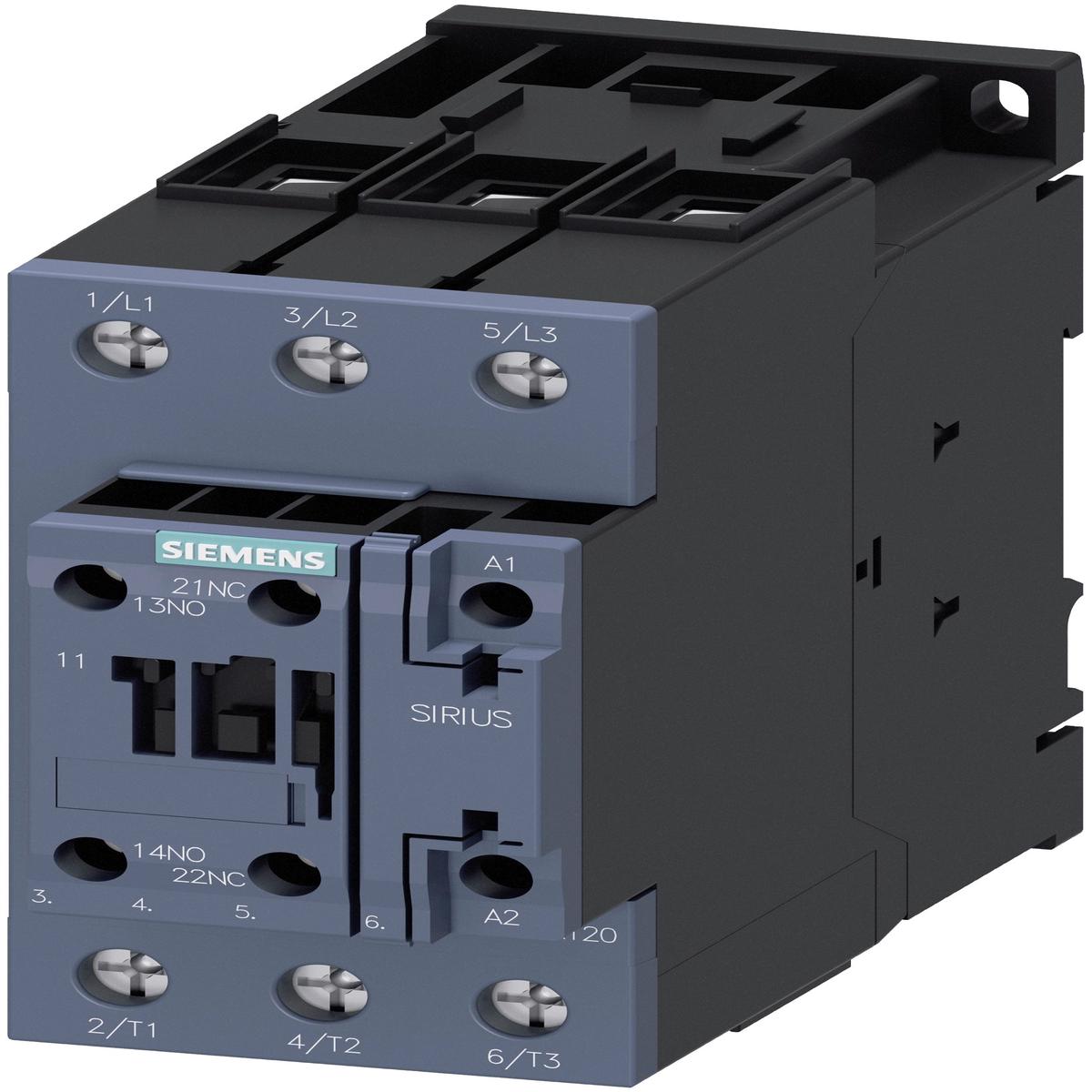

3RT2035-1AK60 – Siemens 40A 690V 3-Pole IEC Power Contactor with 1 NO 1 NC Auxiliary, Size S2

3RT2035-1AK60

3RT2035-1AK60 is a Siemens 3-pole IEC power contactor designed for motor control applications with a 40 amp rating and 690V maximum voltage.3RT2035-1AK60 features a 3-phase design, size S2 frame, and includes 1 normally open and 1 normally closed auxiliary contact. It supports motor ratings of 15 HP at 230V and 30 HP at 460V, with a coil voltage of 110/120V AC at 50/60 Hz. The contactor mounts on a standard 35mm DIN rail and uses screw terminals for secure wiring.

Key Specifications
• Amperage: 40 Amps
• Voltage Rating: Up to 690V
• Poles: 3
• Motor HP Rating: 15 HP @ 230V, 30 HP @ 460V
• Coil Voltage: 110/120V AC, 50/60 Hz
• Auxiliary Contacts: 1 Normally Open (NO), 1 Normally Closed (NC)
• Mounting Type: 35mm DIN Rail
• Terminal Type: Screw Terminals
• Size/Frame: S2

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3RT2035-1AK60
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Sirius
• Voltage : 690
• Amperage : 40
• Poles : 3
• Coil Voltage Maximum : 120

Product Data

• UPC : 887621915520
• GTIN : 00887621915520
• Weight : 1 lb
