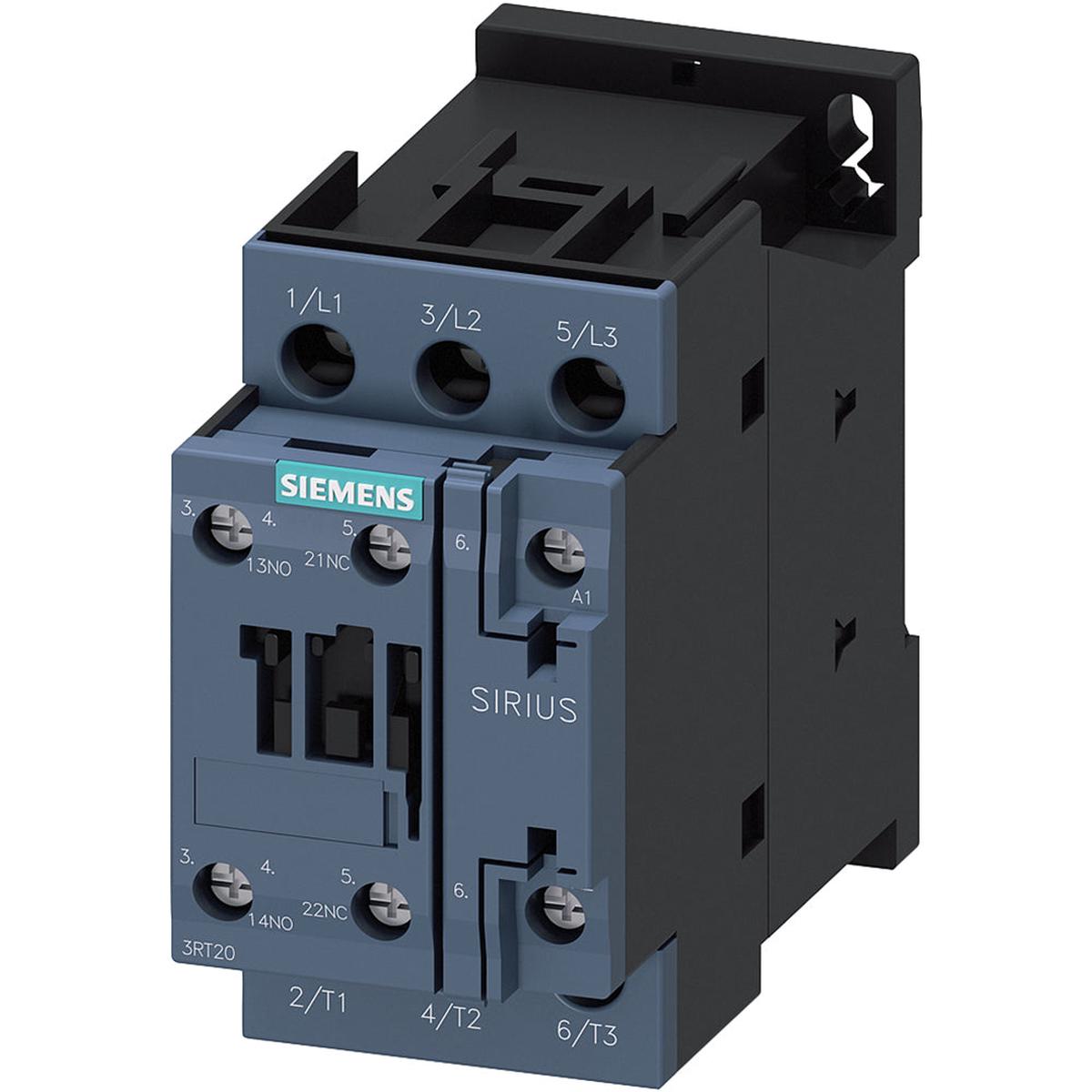

3RT20271AK600UA0 – Siemens 32A 3-Pole Motor Contactor 110/120VAC Coil, Size S0, Screw Terminal

3RT20271AK600UA0

3RT20271AK600UA0 is a Siemens 3-pole motor contactor designed for reliable motor switching applications.This contactor features a 32 ampere current rating with a coil voltage of 110/120 VAC at 50/60 Hz. It includes 1 normally open (NO) and 1 normally closed (NC) auxiliary contact, screw terminal connections, and is sized S0 for compact mounting. The device supports motor loads up to 10 HP at 460/575 V and has an IP20 enclosure rating. It is suitable for DIN rail or vertical mounting and operates within a temperature range of -25 to 60 degrees Celsius.

• Manufacturer: Siemens
• Part Number: 3RT20271AK600UA0
• Current Rating: 32 A
• Poles: 3
• Coil Voltage: 110/120 VAC, 50/60 Hz
• Auxiliary Contacts: 1 NO + 1 NC
• Mounting Type: DIN Rail / Vertical
• Terminal Type: Screw
• Size: S0
• Motor Power: 10 HP at 460/575 V
• Enclosure Type: IP20
• Operating Temperature: -25 to 60 C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3RT20271AK600UA0
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Contactors
• Section : Contactors

Product Data

• UPC : 887621830649
• Country of Origin : Germany
• Dimensions : 3.622 x 2.126 x 4.154 inch
• Weight : 0.941 lb
• Certification : REACH Art 33, WEEE (2012/19/EU)
