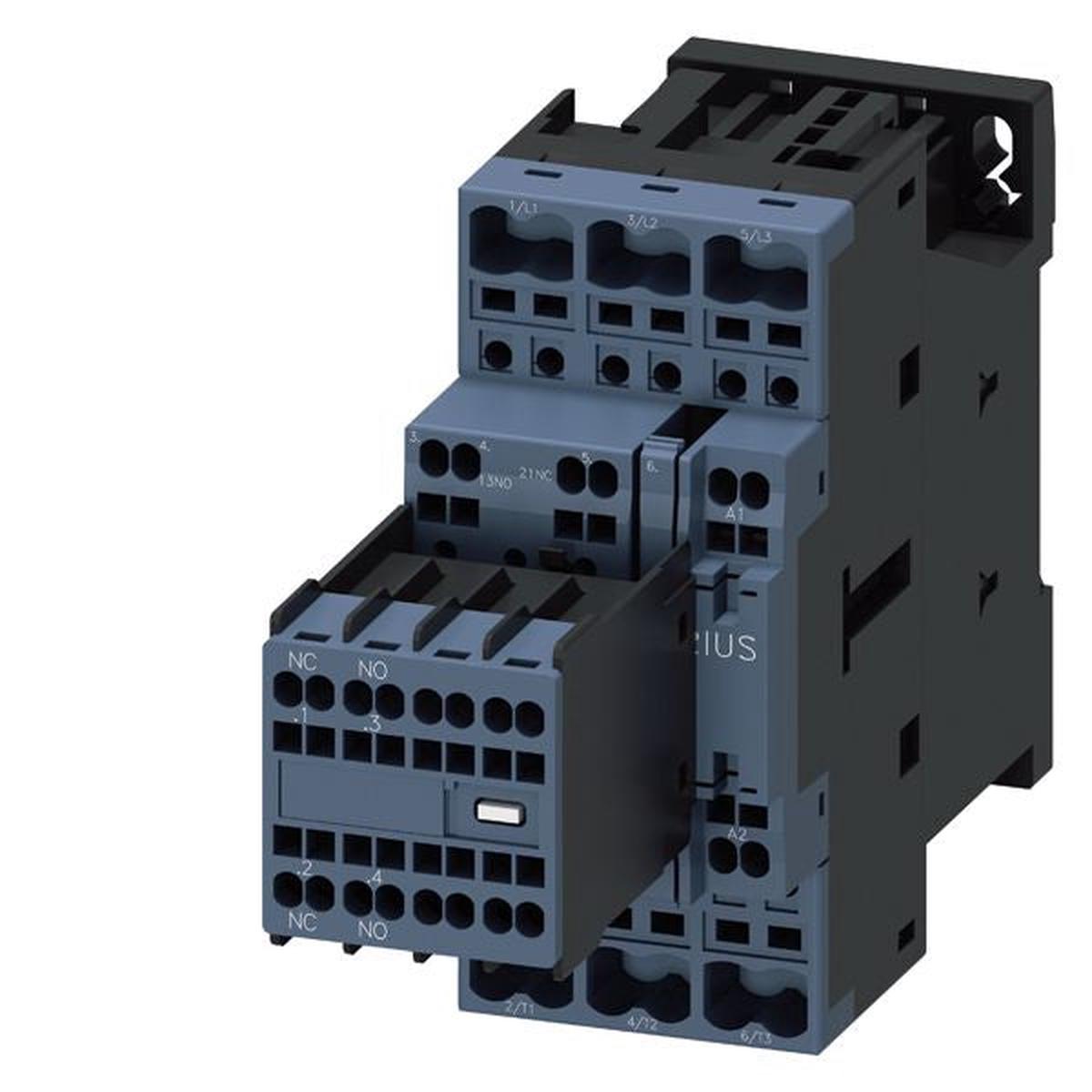

3RT2027-2AB04 – Siemens Power Contactor AC-3 32A 15kW 400V 3-Pole 24V AC

3RT2027-2AB04

3RT2027-2AB04 is a Siemens power contactor designed for AC-3 duty cycle applications with a rated current of 32 amperes and maximum switching capacity of 15 kilowatts at 400 volts. This 3-pole contactor features a compact size S0 frame and is rated for 24 volts AC control supply at 50 Hz operation. The unit includes 2 normally open and 2 normally closed auxiliary contacts for flexible circuit control and monitoring. Spring-type terminals provide secure and reliable electrical connections suitable for industrial motor control applications. The contactor operates across a temperature range from -25 degrees Celsius to +60 degrees Celsius and supports both snap-in and screw-fit mounting configurations. A removable auxiliary switch block allows for customization of contact configurations to meet specific application requirements.

• Rated Current: 32 A
• Maximum Switching Capacity: 15 kW
• Rated Voltage: 400 V AC
• Control Supply Voltage: 24 V AC, 50 Hz
• Number of Poles: 3
• Auxiliary Contacts: 2 NO + 2 NC
• Terminal Type: Spring-Type
• Frame Size: S0
• Mounting Type: Snap-in, Screw-fit
• Operating Temperature Range: -25 to +60 degrees Celsius
• Duty Cycle: AC-3
• Removable Auxiliary Switch Block: Yes

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3RT2027-2AB04
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Sirius
• Type : 3RT20
• Voltage : 600
• Amperage : 32
• Phase : 3
• Poles : 3
• Coil Voltage Maximum : 24

Product Data

• UPC : 066264391601
• GTIN : 00662643916010
• Weight : 1
