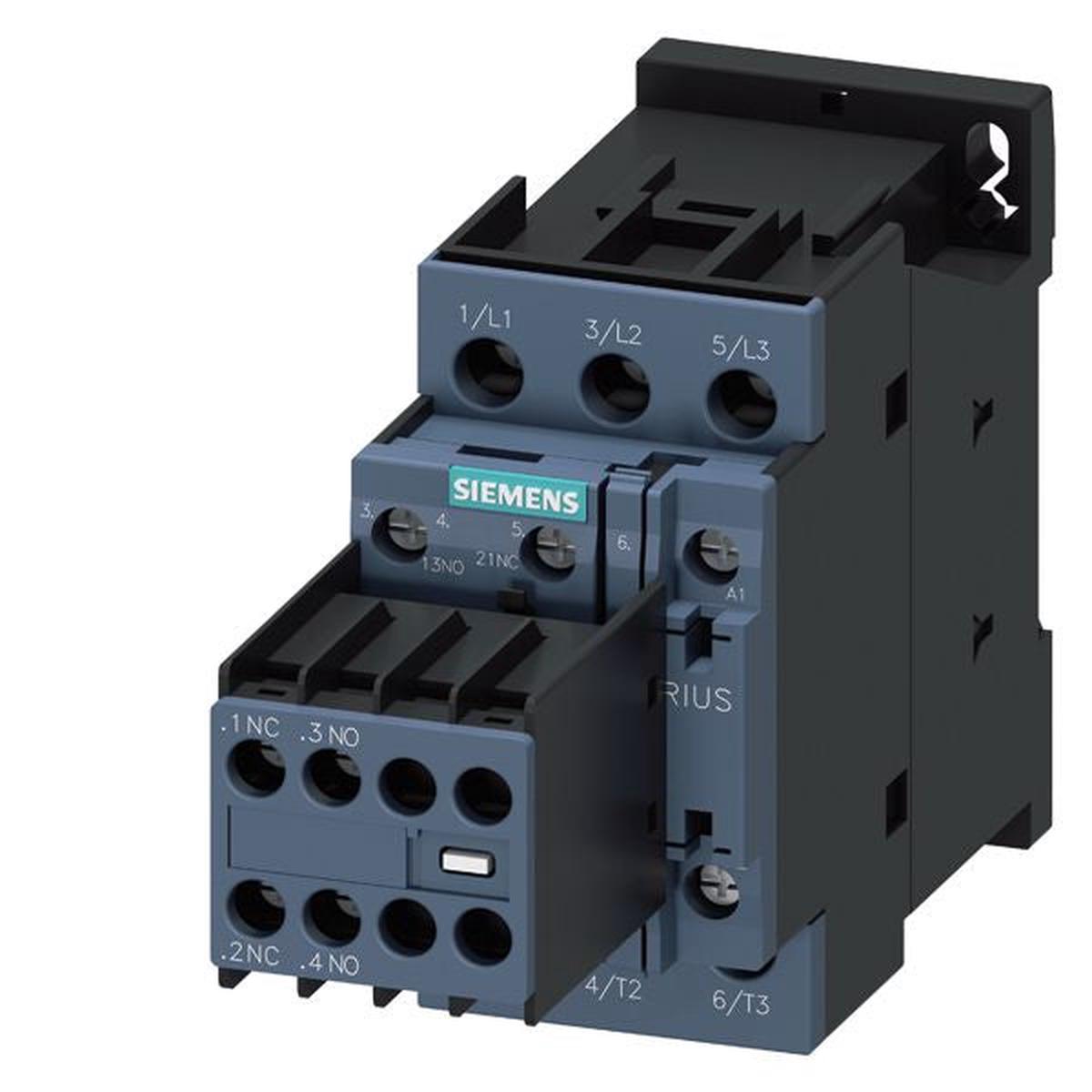

3RT2027-1AP04 – Siemens 32A 15kW 400V 3-Pole Power Contactor AC-3 230V AC Coil Size S0 Screw Terminal

3RT2027-1AP04

3RT2027-1AP04 is a Siemens power contactor designed for motor control applications with a 32 ampere rating and 15 kW power capacity at 400 V.

This 3-pole contactor operates at 230 V AC control voltage with a frequency of 50 Hz. It features 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts, screw terminal connections, and a size S0 frame. The contactor supports AC-3 and AC-3e utilization categories, suitable for switching three-phase motors up to 15 kW at 400 V. It is designed for DIN rail or vertical mounting with a 35 mm rail width.

• Rated operational current: 32 A
• Power rating: 15 kW at 400 V
• Number of poles: 3
• Control supply voltage: 230 V AC, 50 Hz
• Auxiliary contacts: 2 NO + 2 NC
• Mounting type: 35 mm DIN rail / vertical mount
• Terminal type: Screw terminals
• Frame size: S0
• Utilization category: AC-3 / AC-3e

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3RT2027-1AP04
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Sirius
• Type : 3RT20
• Voltage : 600
• Amperage : 32
• Phase : 3
• Poles : 3
• Coil Voltage Maximum : 230

Product Data

• UPC : 066264391581
• GTIN : 00662643915815
• Weight : 1
