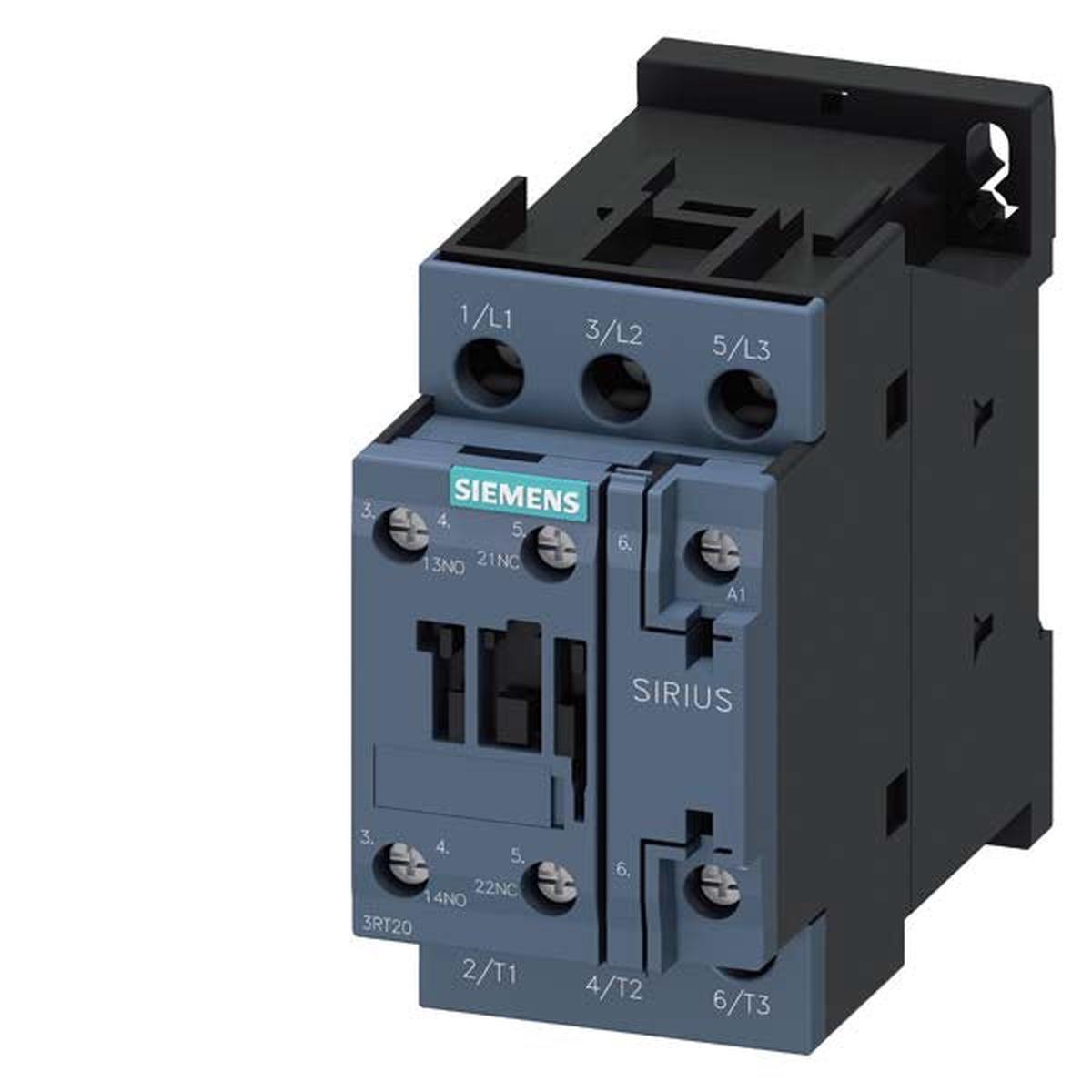

3RT2027-1AG20 – Siemens SIRIUS 32A 3-Pole Motor Contactor 110VAC Coil 35mm DIN Rail Mount

3RT2027-1AG20

3RT2027-1AG20 is a Siemens SIRIUS series motor contactor designed for reliable switching of three-phase motors and other industrial loads. This contactor features a 32A current rating, 3-pole configuration, and is equipped with a 110VAC control coil for operation at both 50Hz and 60Hz. It is suitable for use in motor control circuits and general power distribution applications. The 3RT2027-1AG20 is built for durability and ease of installation, featuring a compact design that mounts directly to a 35mm DIN rail. It includes one normally open (NO) and one normally closed (NC) auxiliary contact for control circuit integration. The contactor is rated for up to 10 HP at 230V and 20 HP at 460V for three-phase motors, making it ideal for a wide range of industrial applications.

• 32A operational current rating
• 3-pole main circuit
• 110VAC control coil (50/60Hz)
• 35mm DIN rail mounting
• 1NO-1NC auxiliary contacts
• Rated for 10 HP at 230V, 20 HP at 460V (3-phase)
• IEC 60947-4-1 compliant
• Screw terminal connections
• Size S0 frame
• Vertical and DIN rail mountable
• 3-phase motor control
• 15 kW at 400V

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3RT2027-1AG20
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Sirius
• Type : 3RT20
• Voltage : 600
• Amperage : 32
• Phase : 3
• Poles : 3
• Coil Voltage Maximum : 110
• Coil Voltage Minimum : 110

Product Data

• UPC : 066264391570
• GTIN : 00662643915709
• Weight : 1
