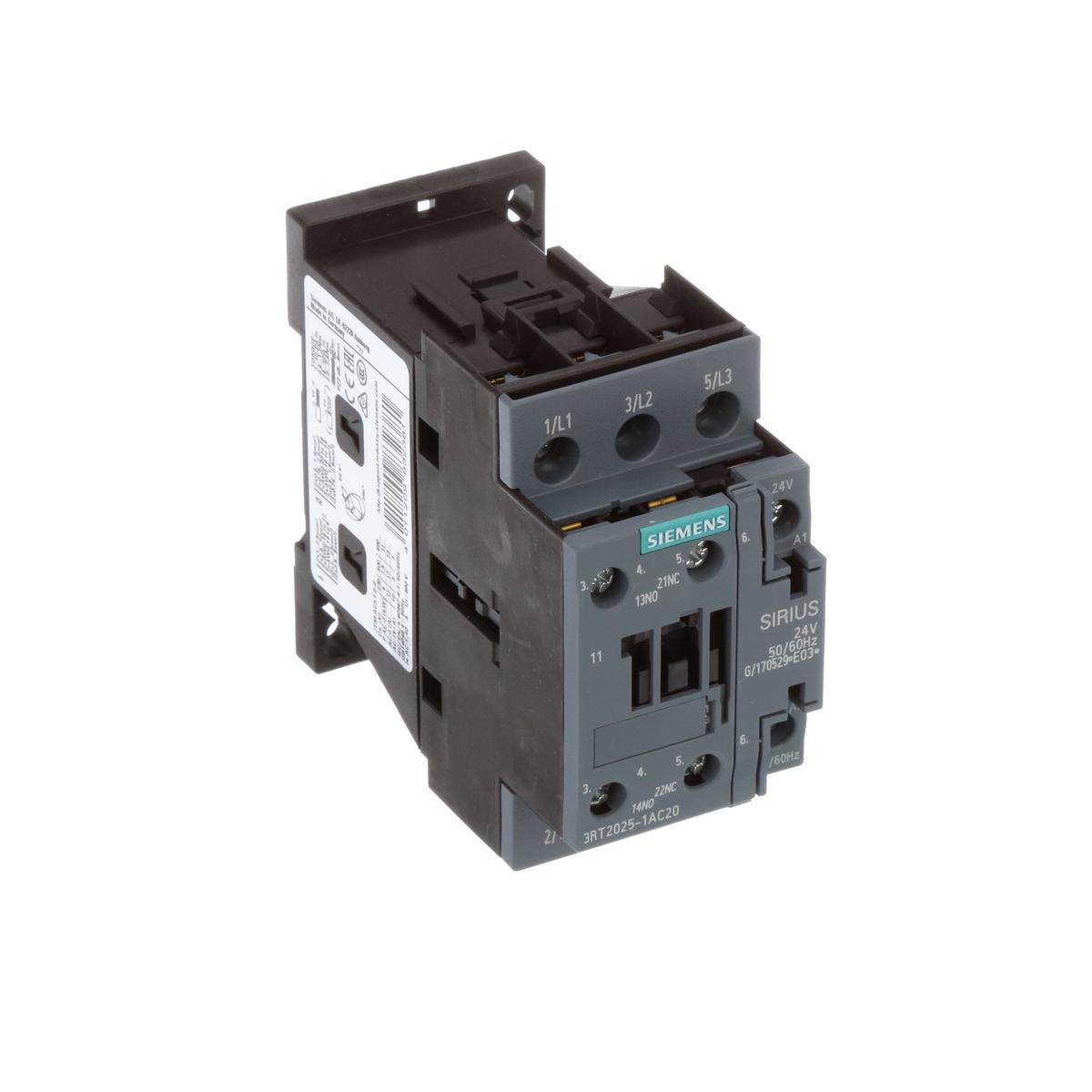

3RT20251AC20 – Siemens 3-Pole 17A 24V AC Coil SIRIUS Power Contactor S0 Frame DIN Rail Mount

3RT20251AC20

3RT20251AC20 is a Siemens SIRIUS power contactor designed for motor control applications with a 3-pole configuration and 24V AC coil.This contactor features a 17 amp maximum load current, supports 50/60 Hz frequency, and is rated for 7.5 kW at 400V. It includes 1 normally open (NO) and 1 normally closed (NC) auxiliary contact, screw terminal connections, and a compact S0 frame size. The device is designed for DIN rail, snap-on, or threaded vertical mounting and has an IP20 enclosure rating. It is UL, CSA, CE, EAC, CCC, and C-TICK certified.

• Manufacturer: Siemens
• Part Number: 3RT20251AC20
• Poles: 3
• Maximum Load Current: 17 A
• Coil Voltage: 24 V AC, 50/60 Hz
• Power Rating: 7.5 kW at 400 V
• Auxiliary Contacts: 1 NO + 1 NC
• Mounting Type: DIN Rail/Snap-On/Threaded, Vertical
• Frame Size: S0
• Enclosure Rating: IP20
• Certifications: UL, CSA, CE, EAC, CCC, C-TICK

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3RT20251AC20
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Contactors
• Section : Contactors

Product Data

• UPC : 066264391548
• GTIN : 00662643915488
• Country of Origin : Germany
• Dimensions : 3.622 x 2.126 x 4.154 inch
• Weight : 0.897 lb
• Certification : REACH Art 33, WEEE (2012/19/EU)
