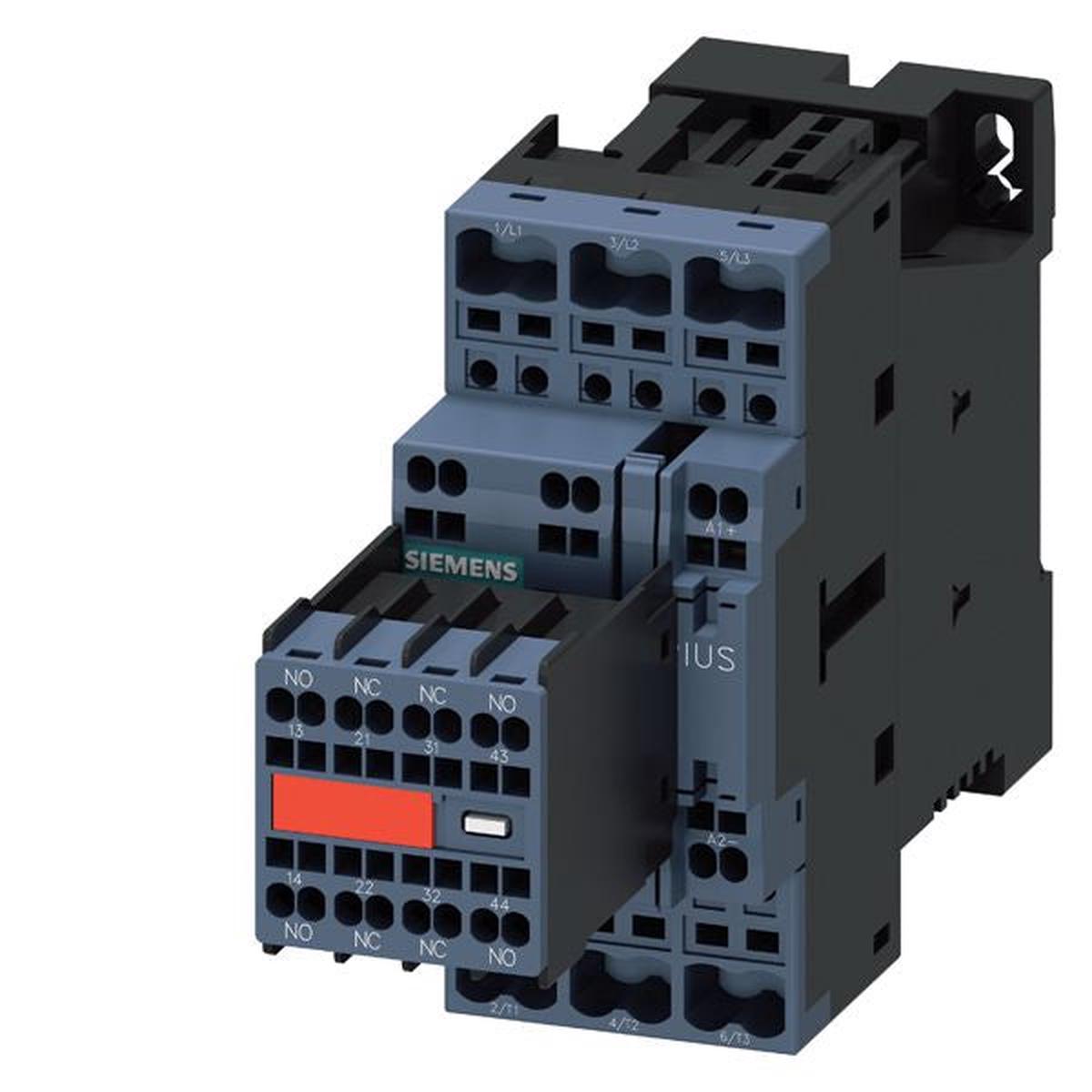

3RT2025-2FB44-3MA0 – Siemens Power Contactor AC-3 17A 7.5kW 400V 3-Pole

3RT2025-2FB44-3MA0

3RT2025-2FB44-3MA0 is a Siemens power contactor rated AC-3e/AC-3 with 17 amperes at 7.5 kilowatts, 400 volts, designed for three-pole motor control applications. This contactor features a 24 volt DC coil with plugged-in diode combination, auxiliary contacts configured as 2 NO plus 2 NC, and spring-loaded terminals for secure connections. The unit is mounted on DIN rail with a compact Size S0 frame measuring 45 x 102 x 154 millimeters. Key Specifications

• Part Number: 3RT2025-2FB44-3MA0
• Manufacturer: Siemens
• Rated Current: 17 amperes AC-3
• Rated Power: 7.5 kilowatts at 400 volts
• Poles: 3-pole
• Coil Voltage: 24 volt DC
• Auxiliary Contacts: 2 NO plus 2 NC
• Maximum Operating Voltage: 690 volts AC
• Mounting: DIN rail, chassis mount
• Terminal Type: Spring-type, captive
• Frame Size: S0
• RoHS Compliant: Yes

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3RT2025-2FB44-3MA0
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Sirius
• Type : 3RT20
• Voltage : 600
• Amperage : 16
• Phase : 3
• Poles : 3
• Coil Voltage Maximum : 24
• Coil Voltage Minimum : 24

Product Data

• UPC : 783087944992
• GTIN : 00783087944992
• Weight : 1
