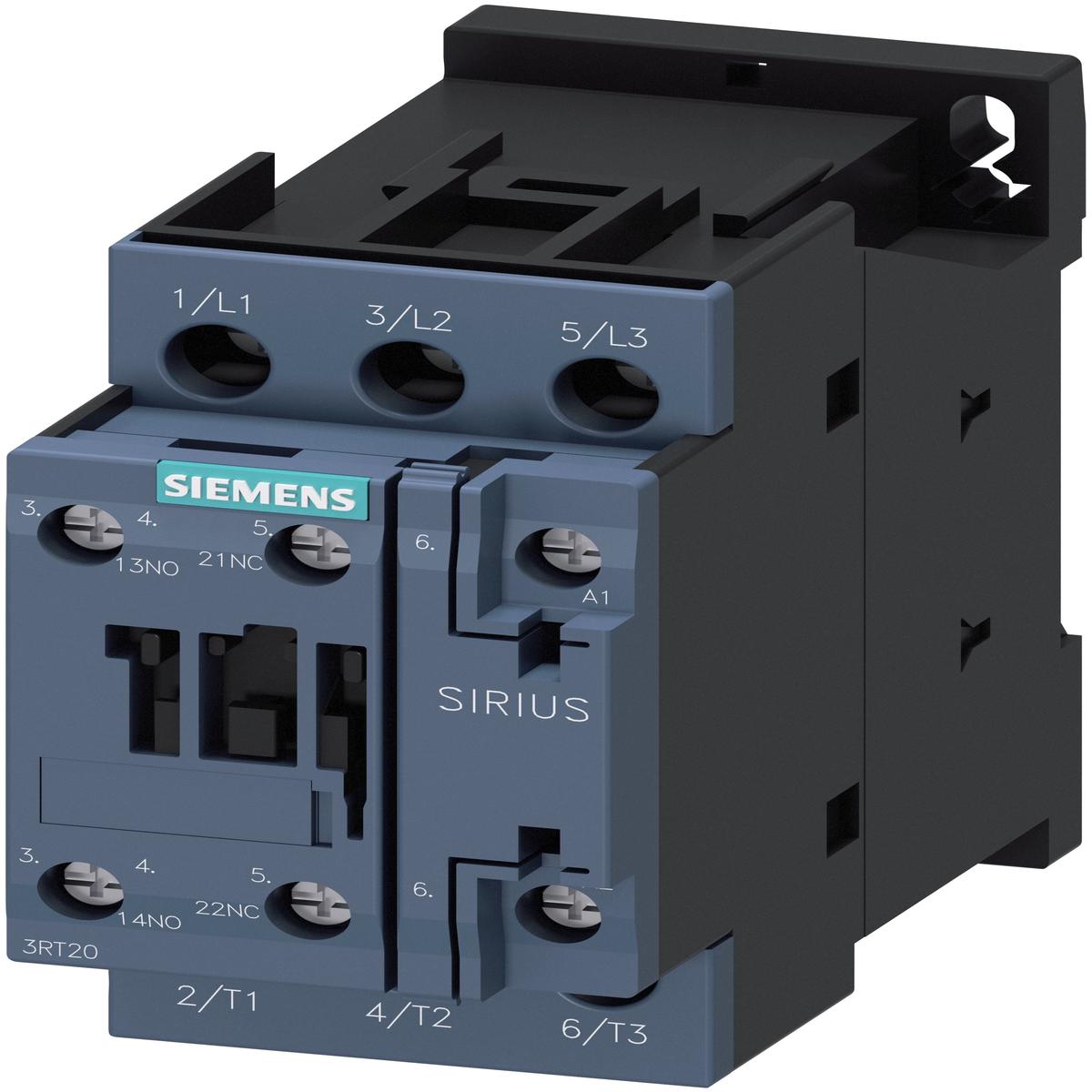

3RT20241AB00 – Siemens 12A 24VAC 3-Pole Power Contactor S0 Frame with 1NO+1NC Auxiliary Contacts

3RT20241AB00

3RT20241AB00 is a Siemens SIRIUS power contactor designed for motor control applications with a 24 VAC coil voltage and 3 poles.3RT20241AB00 features a 12 A rated operational current at AC-3, suitable for switching motors up to 5.5 kW at 400 V. It includes 1 normally open (NO) and 1 normally closed (NC) auxiliary contact, uses screw terminal connections, and is built on the compact S0 frame size.

Key Specifications
• Rated operational current: 12 A (AC-3)
• Coil voltage: 24 VAC, 50 Hz
• Number of poles: 3
• Auxiliary contacts: 1 NO + 1 NC
• Power rating: 5.5 kW at 400 V
• Connection type: Screw terminals
• Frame size: S0
• Operating temperature range: -25 to 60 C
• Coil power rating: 65 VA pickup, 7.6 VA holding
• Contact configuration: 3 main contacts normally open

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3RT20241AB00
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Contactor

Product Data

• UPC : 662643912999
• GTIN : 00662643912999
• Country of Origin : Germany
• Dimensions : 3.622 x 2.126 x 4.154 inch
• Weight : 0.897
