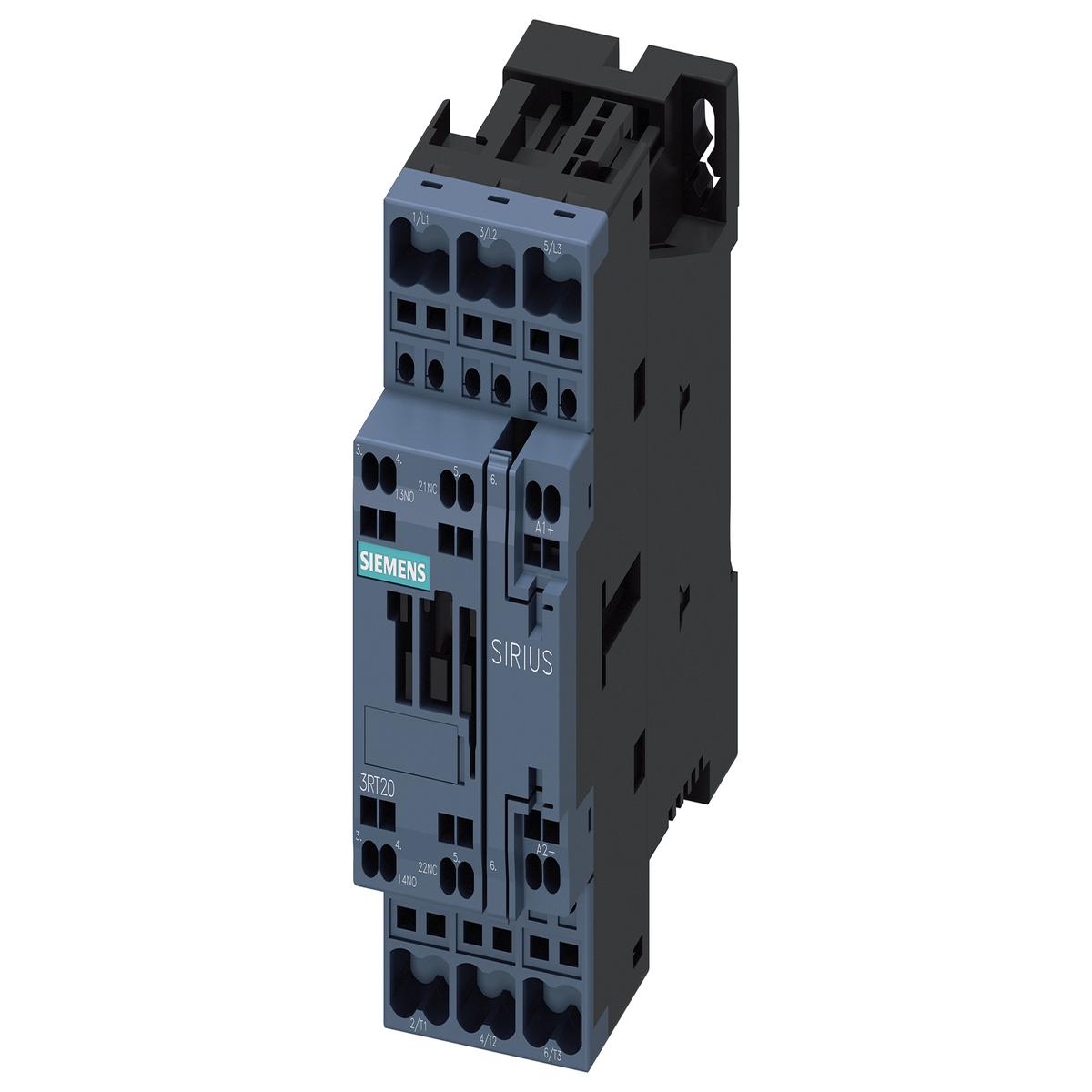

3RT2023-1AK60 – Siemens 3-Pole Power Contactor 9A 110/120VAC S0 Frame IP20

3RT2023-1AK60

3RT2023-1AK60 is a Siemens SIRIUS 3-pole power contactor designed for reliable motor control in industrial applications. This contactor features a 110/120VAC coil, 9A at 400VAC, and is rated for 3 HP at 230V and 5 HP at 460V. It includes 1NO+1NC auxiliary contacts and is suitable for DIN rail or snap-on mounting. The device is finger-safe per EN 50274 and offers IP20 protection when fitted with the terminal cover. It is part of the SIRIUS S0 frame series and is ideal for use with auxiliary contact blocks and surge suppressors.

• Manufacturer: Siemens
• Part Number: 3RT2023-1AK60
• Series/Frame: SIRIUS S0
• Number of Poles: 3
• Coil Voltage: 110/120VAC
• Rated Current: 9A at 400VAC
• HP Rating: 3 HP @ 230V, 5 HP @ 460V
• Mounting Type: DIN Rail/Snap-On/Threaded
• Enclosure Type: IP20
• Auxiliary Contacts: 1NO+1NC
• Terminal Type: Screw
• Operating Temperature: -25 to 60C
• Operating Cycles: 10,000,000
• Standards: IEC 60946, EN 50274

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3RT2023-1AK60
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Sirius
• Type : 3RT20
• Voltage : 600
• Amperage : 9
• Phase : 3
• Poles : 3
• Temp Rating : -13-158 F (-25-70 C)
• Coil Voltage Maximum : 120

Product Data

• UPC : 786685215532
• GTIN : 00786685215532
• Weight : 1
• Temp Rating : -13-158 F (-25-70 C)
