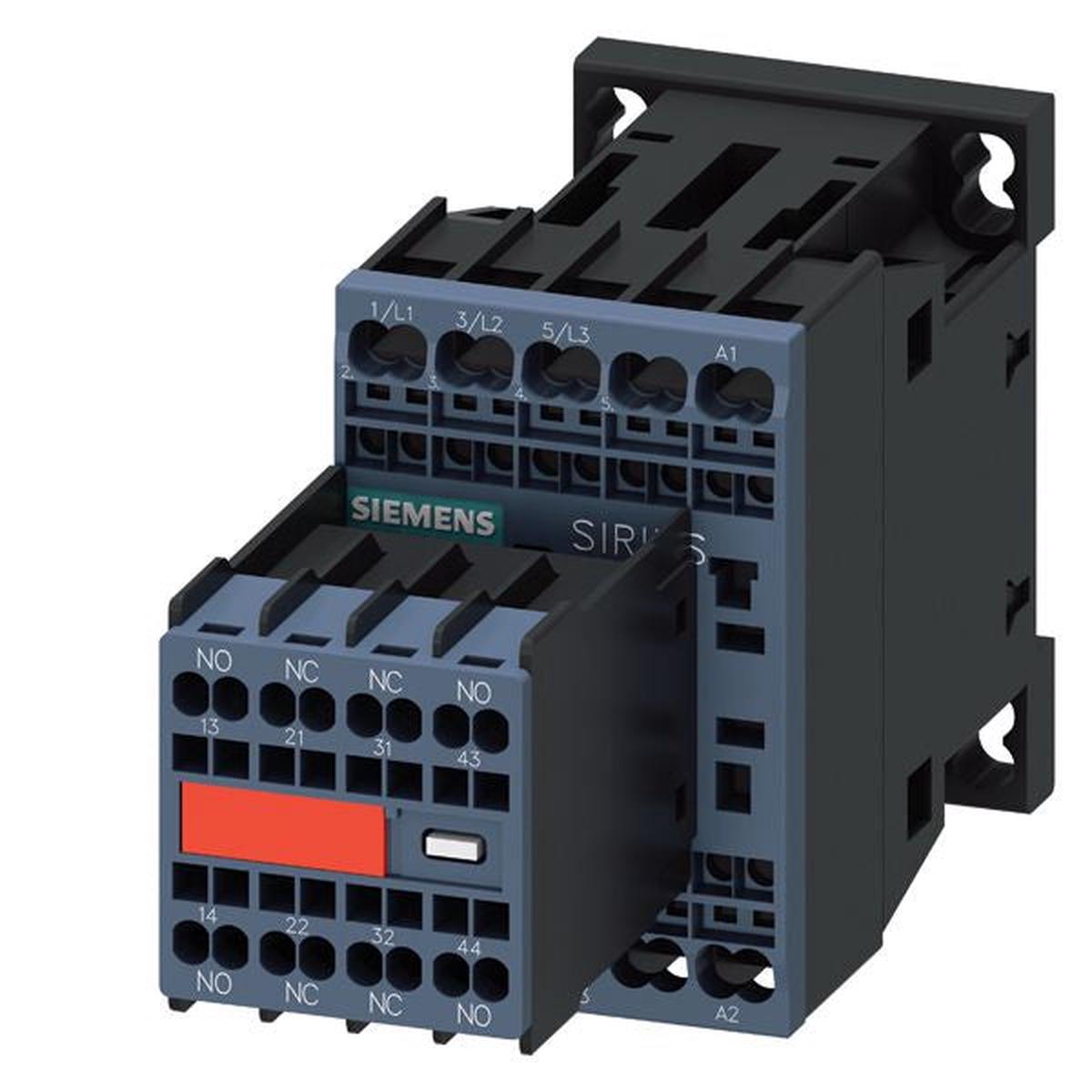

3RT2018-2AP04-3MA0 – Siemens SIRIUS 3RT 16A 3-Pole 230V AC Contactor

3RT2018-2AP04-3MA0

3RT2018-2AP04-3MA0 is a Siemens SIRIUS power contactor designed for AC-3e/AC-3 duty cycle applications with 16 ampere contact rating and 7.5 kilowatt capacity at 400 volts. This 3-pole contactor features a 230 volt AC coil rated for 50/60 Hz operation and includes 2 normally open plus 2 normally closed auxiliary contacts for flexible control circuit design. The unit employs spring-loaded terminals for secure wire connections and is classified as Size S00 within the SIRIUS 3RT contactor family.

• Contact Rating: 16 A
• Power Rating: 7.5 kW at 400 V
• Poles: 3-pole
• Coil Voltage: 230 V AC
• Coil Frequency: 50/60 Hz
• Auxiliary Contacts: 2 NO + 2 NC
• Terminal Type: Spring-loaded
• Size: S00
• Duty Cycle: AC-3e/AC-3

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3RT2018-2AP04-3MA0
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Sirius
• Type : 3RT20
• Voltage : 600
• Amperage : 16
• Phase : 3
• Poles : 3
• Coil Voltage Maximum : 230
• Coil Voltage Minimum : 230

Product Data

• UPC : 066264391348
• GTIN : 00662643913484
• Weight : 2
