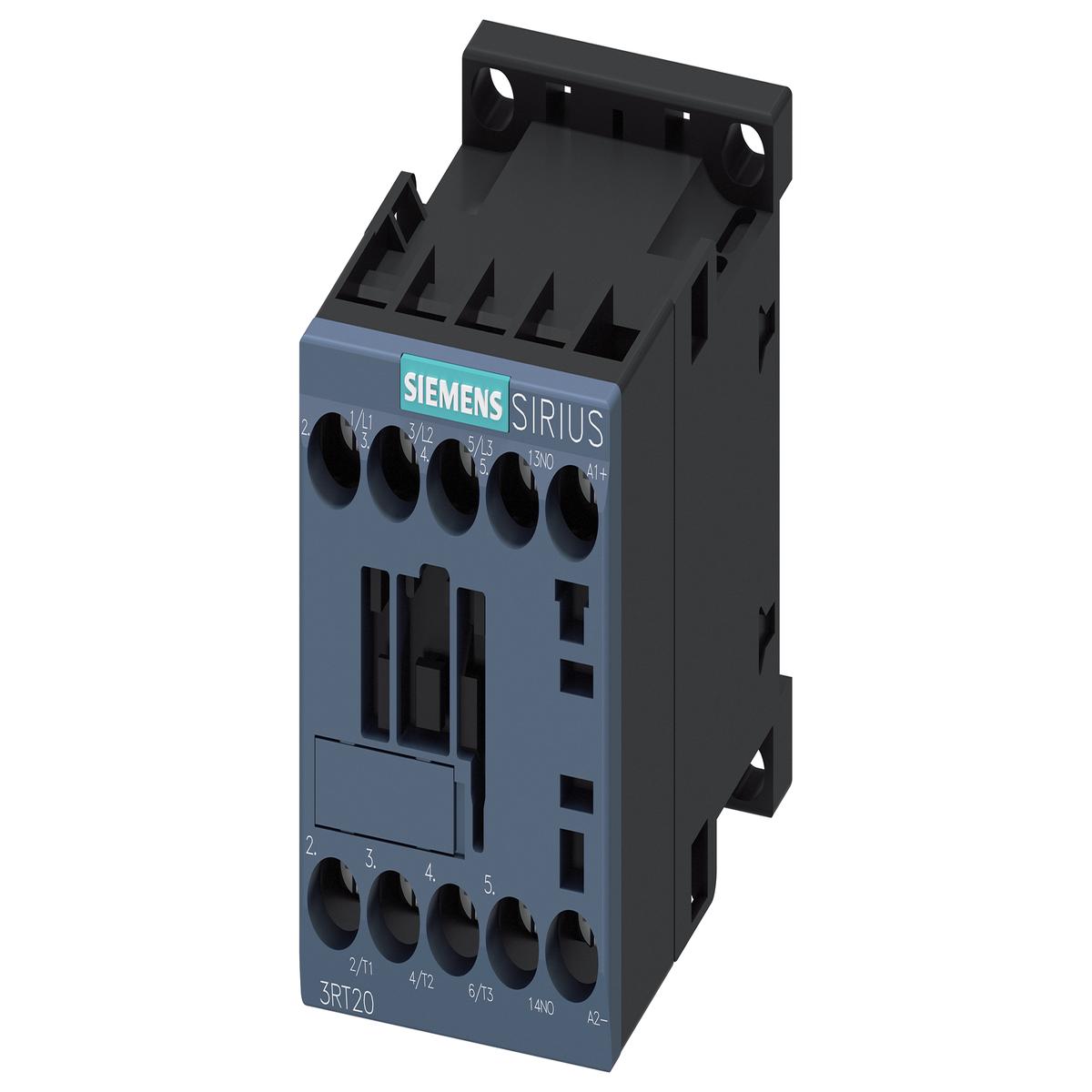

3RT2015-2AK61 – Siemens SIRIUS 7A 3-Pole 120V AC Motor Contactor S00

3RT2015-2AK61

3RT2015-2AK61 is a Siemens SIRIUS power contactor designed for switching three-phase AC motors in industrial applications. This Size S00 contactor delivers reliable motor control with a 7 ampere rated current and 3 kilowatt capacity at 400 volts, making it suitable for small to medium motor loads. The contactor features a 3-pole configuration with one normally open auxiliary contact and operates on 110 V AC at 50 Hz or 120 V AC at 60 Hz coil voltage, providing flexibility for global installations. Spring-loaded terminals ensure secure, maintenance-free connections, while DIN rail mounting on a 35 mm profile allows for compact panel integration. The AC-3e/AC-3 duty rating qualifies this contactor for direct-on-line motor starting applications. Operating temperature range spans from -25 degrees Celsius to +60 degrees Celsius, ensuring reliable performance across diverse industrial environments.

• Rated Current: 7 Amperes
• Power Rating: 3 kW at 400 V
• Poles: 3-Pole
• Auxiliary Contacts: 1 NO (Normally Open)
• Coil Voltage: 110 V AC 50 Hz / 120 V AC 60 Hz
• Terminal Type: Spring-Loaded
• Mounting: 35 MM DIN Rail
• Frame Size: S00
• Duty Rating: AC-3e/AC-3
• Operating Temperature: -25 to +60 Degrees Celsius
• Number of Phases: 3 Phase

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3RT2015-2AK61
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Sirius
• Type : 3RT20
• Voltage : 600
• Amperage : 7
• Phase : 3
• Poles : 3
• Coil Voltage Maximum : 120
• Coil Voltage Minimum : 120

Product Data

• UPC : 066264390931
• GTIN : 00662643909319
• Weight : 0.5544
