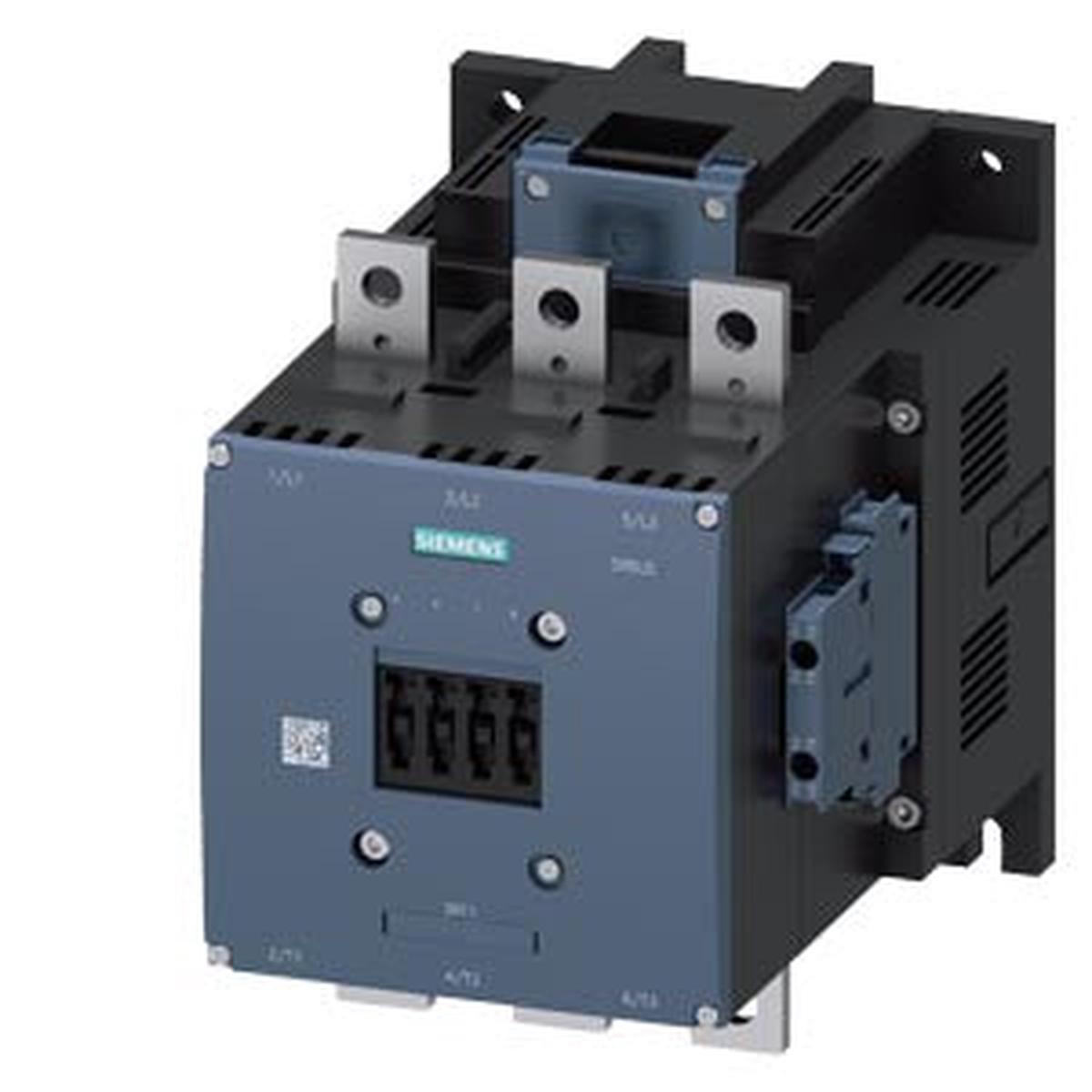

3RT1076-6AF36 – Siemens SIRIUS 500A 3-Pole IEC Motor Contactor 110-127V

3RT1076-6AF36

3RT1076-6AF36 is a 3-pole IEC rated power contactor from Siemens SIRIUS series designed for motor control applications. This contactor is rated for 500 amperes AC-3 and 610 amperes AC-1, with horsepower ratings of 200 HP at 230V and 400 HP at 460V three-phase. The unit features a 110 to 127 volt AC/DC coil voltage operating at 50-60 Hz and includes 2 normally open and 2 normally closed auxiliary contacts for signaling and control functions. The contactor is frame size S12 and conforms to IEC 60947-4-1 standards for industrial motor control.

• Amperage Rating: 500A AC-3, 610A AC-1
• Coil Voltage: 110-127V AC/DC 50-60Hz
• Horsepower: 200 HP @ 230V, 400 HP @ 460V 3-Phase
• Poles: 3-Pole Configuration
• Frame Size: S12
• Auxiliary Contacts: 2 NO + 2 NC
• Terminal Type: Screw Connection (Bolt-on Lugs)
• Mounting: Vertical Mount with Base Panel Mounting
• Power Rating: 250 kW at 400V
• Standards: IEC 60947-4-1 Compliant
• Coil Power Consumption: 830 VA (pick-up), 9.2 VA (holding) at 50 Hz AC
• Shock Resistance: 8.5g / 5ms, 4.2g / 10ms

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3RT1076-6AF36
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Sirius
• Type : 3RT10
• Voltage : 600
• Amperage : 500
• Phase : 3
• Poles : 3
• Coil Voltage Maximum : 127
• Coil Voltage Minimum : 110

Product Data

• UPC : 075455476672
• GTIN : 00754554766720
• Weight : 25
