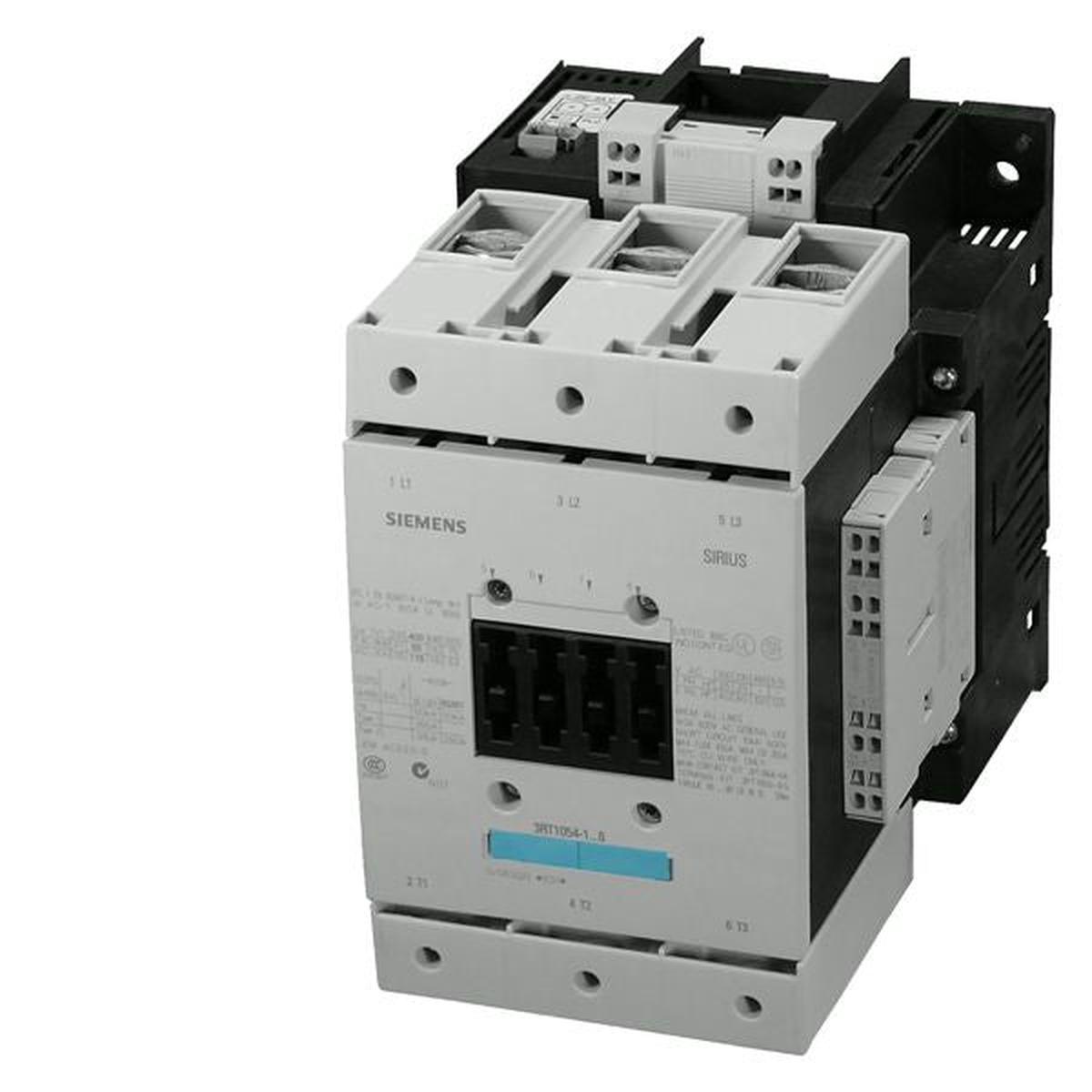

3RT1054-2NP36 – Siemens 3-Pole 115A 400V AC/DC Power Contactor with 2NO+2NC Auxiliary Contacts S6 Frame

3RT1054-2NP36

3RT1054-2NP36 is a Siemens SIRIUS 3RT power contactor designed for reliable motor control applications. This 3-pole device features a 115 A current rating and is suitable for AC-3 and AC-3e duty, supporting up to 55 kW at 400 V. The contactor is compatible with both AC and DC control voltages ranging from 200-277 V, making it versatile for a wide range of industrial environments. It includes 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts for advanced control and monitoring. Engineered for durability and ease of installation, the 3RT1054-2NP36 features a robust S6 frame and is designed for busbar or screw terminal mounting. It is ideal for use in motor starters, automation systems, and industrial power distribution panels. The contactor is built to withstand demanding operating conditions and offers reliable switching performance for motor loads.

• 3-pole power contactor
• 115 A rated current
• 400 V switching voltage
• AC-3 and AC-3e duty
• 55 kW power at 400 V
• Control voltage: 200-277 V AC/DC
• 2 NO + 2 NC auxiliary contacts
• S6 frame size
• Busbar and screw terminal mounting
• PLC input: 24 V DC
• Shock resistance: 8.5g / 5 ms, 4.2g / 10 ms
• Operating temperature: -25C to +55C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3RT1054-2NP36
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Sirius
• Type : 3RT10
• Voltage : 600
• Amperage : 115
• Phase : 3
• Poles : 3
• Coil Voltage Maximum : 240
• Coil Voltage Minimum : 220

Product Data

• UPC : 051712470032
• GTIN : 00051712470032
• Weight : 8
