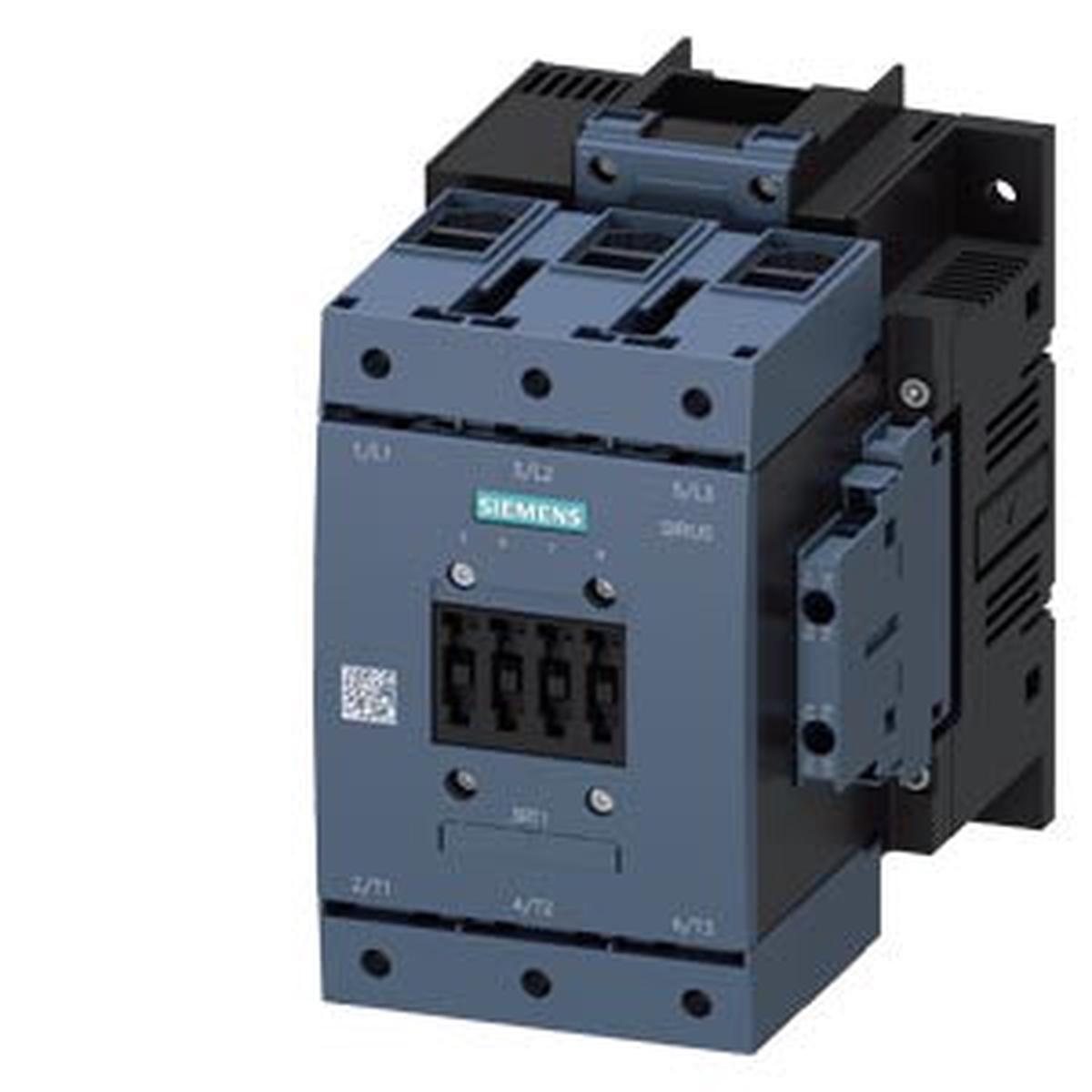

3RT1054-1AD36 – Siemens 115A 3-Pole Power Contactor 600V AC-3e/AC-3 Motor Control

3RT1054-1AD36

3RT1054-1AD36 is a Siemens SIRIUS 3-pole power contactor designed for motor control applications requiring reliable switching up to 115A at 600V. This contactor is suitable for AC-3e/AC-3 duty and features a robust design for demanding industrial environments. The Siemens 3RT1054-1AD36 contactor is engineered for efficient motor starting and control, with a main circuit rated for 115A and 55kW at 400V. It supports both AC (50-60 Hz) and DC coil operation, with a coil voltage range of 42-48V. The device includes 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts, providing flexibility for control circuit integration. Its compact size and screw terminal design facilitate easy installation and maintenance.

• 115A rated current (AC-3e/AC-3)
• 600V maximum voltage
• 3-pole configuration
• 2 NO + 2 NC auxiliary contacts
• AC (50-60 Hz) / DC coil operation
• Coil voltage: 42-48V
• 55kW at 400V
• Screw terminal mounting
• Conventional main circuit
• Operating temperature: -25 to 60C
• IP00/IP20 enclosure
• 10,000,000 operating cycles

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3RT1054-1AD36
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Sirius
• Type : 3RT10
• Voltage : 600
• Amperage : 115
• Phase : 3
• Poles : 3
• Coil Voltage Maximum : 48
• Coil Voltage Minimum : 42

Product Data

• Weight : 8
