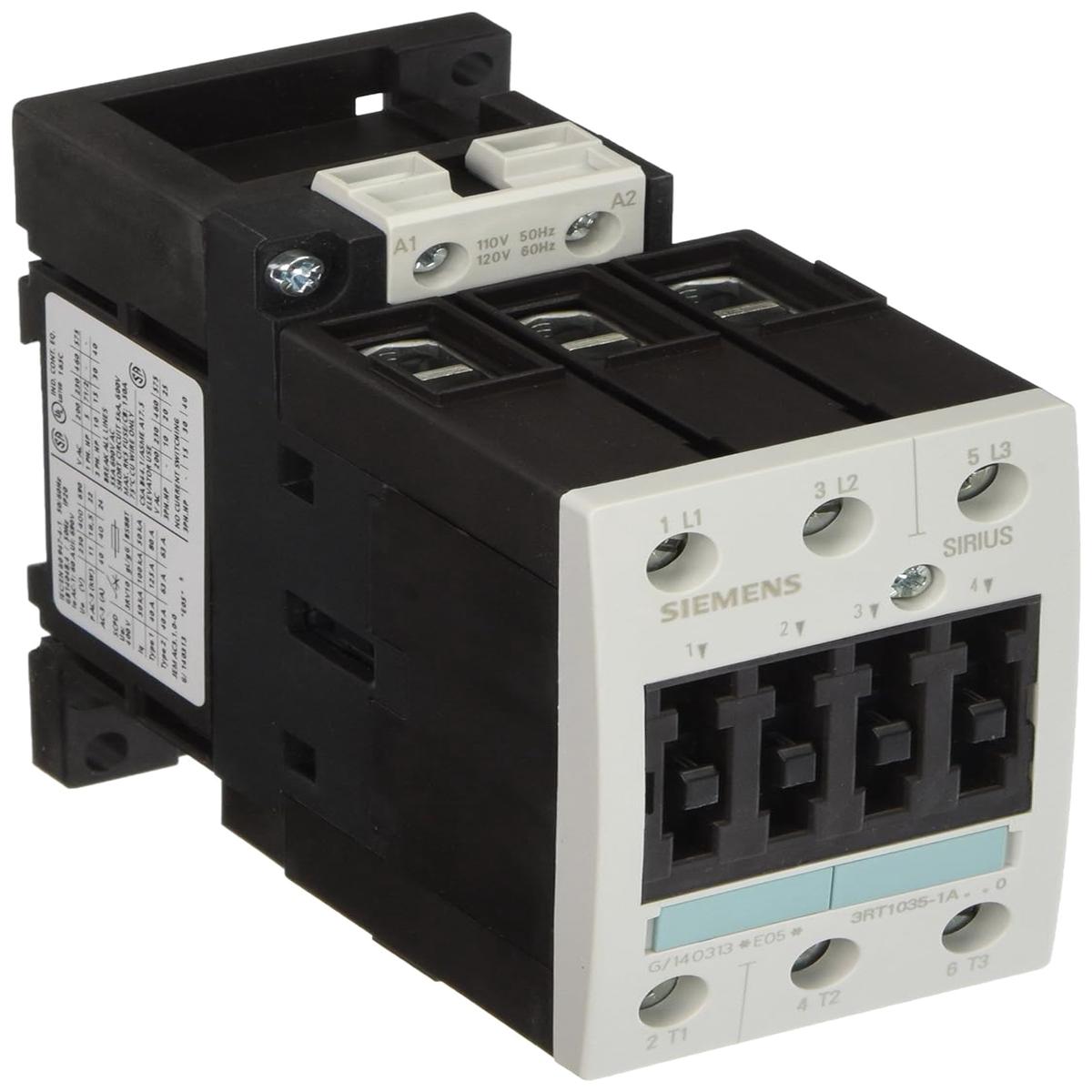

3RT1035-3AP00-1AA0 – Siemens 40A 3-Pole Power Contactor AC-3 230V 50Hz Size S2 Screw Terminal

3RT1035-3AP00-1AA0

3RT1035-3AP00-1AA0 is a Siemens power contactor designed for motor control applications, rated for 40 amps and suitable for 3-phase AC-3 duty.

This 3-pole contactor operates at 230 V AC control voltage with a frequency of 50 Hz and is part of the Siemens Size S2 series. It features screw terminals for the main circuit and spring-type terminals for the auxiliary circuit, optimized for upright mounting. The contactor is rated for switching motors up to 18.5 kW at 400 V and 230 V AC.

• Amperage: 40 A
• Poles: 3
• Control Voltage: 230 V AC, 50 Hz
• Power Rating: 18.5 kW at 400 V
• Duty Type: AC-3
• Size/Frame: S2
• Mounting: Upright position
• Main Circuit Terminals: Screw type
• Auxiliary Circuit Terminals: Spring type

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3RT1035-3AP00-1AA0
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Sirius
• Type : 3RT10
• Voltage : 600
• Amperage : 40
• Phase : 3
• Poles : 3
• Coil Voltage Maximum : 230
• Coil Voltage Minimum : 230

Product Data

• Weight : 2
