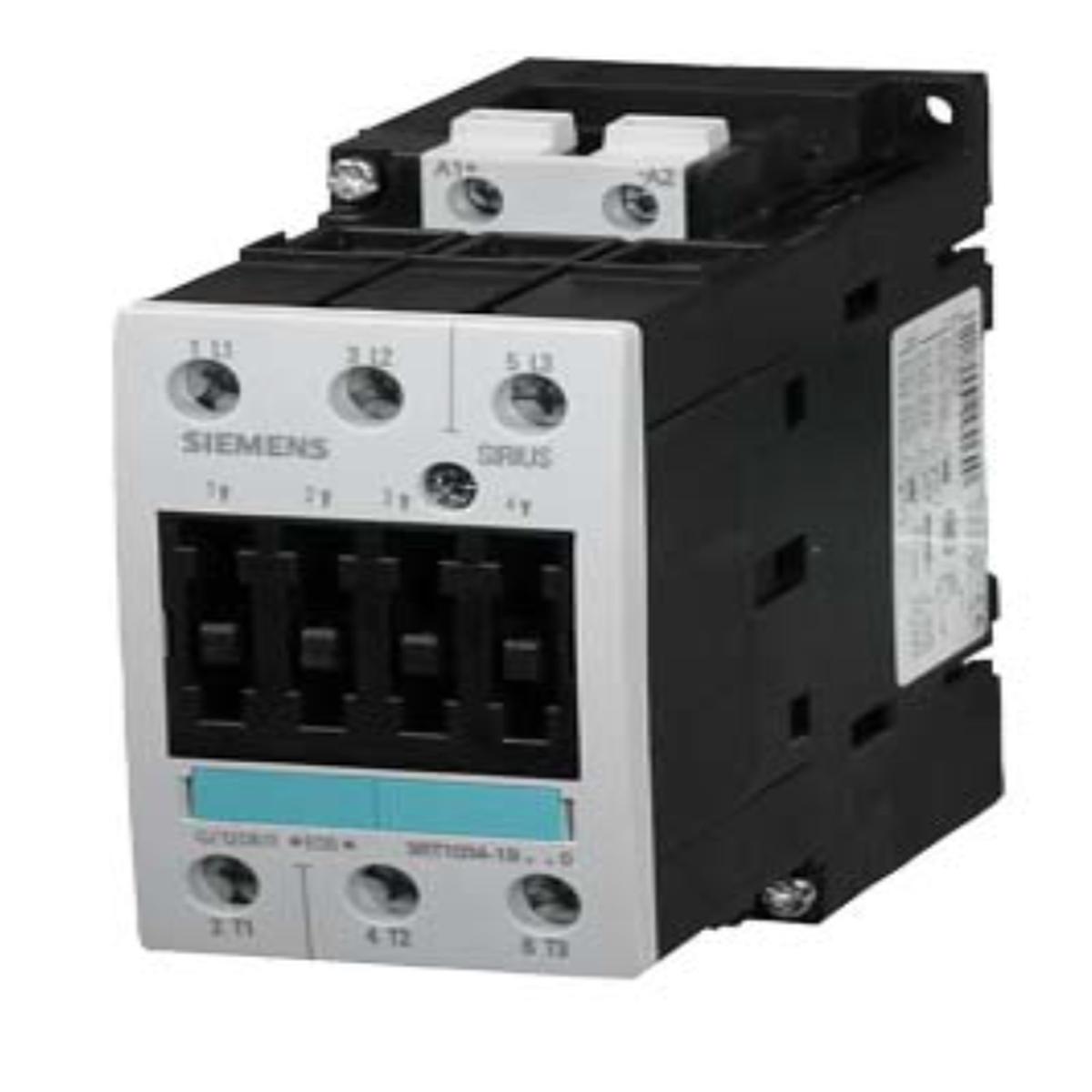

3RT1034-1DW48-0PA6 – Siemens Sirius 32A 48V DC 3-Pole Power Contactor

3RT1034-1DW48-0PA6

3RT1034-1DW48-0PA6 is a Siemens Sirius power contactor designed for AC-3 motor control applications with 32 ampere AC-3 rating and 15 kW power handling at 400V. This 3-pole contactor features 48V DC coil voltage and includes multiple auxiliary contact configurations: 4 NO + 2 NC main contacts with lateral 1 NO + 1 NC inside and 1 NO outside auxiliary contacts. The contactor operates across 0.8-1.1 times rated voltage at 40 degrees Celsius and 0.85-1.1 times rated voltage at higher temperatures, ensuring reliable performance in demanding industrial motor control environments.

• Amperage Rating: 32 A AC-3
• Power Rating: 15 kW at 400V
• Coil Voltage: 48V DC
• Number of Poles: 3
• Main Contacts: 4 NO + 2 NC
• Auxiliary Contacts: Lateral 1 NO + 1 NC inside, 1 NO outside
• Frame Size: S2
• Voltage Range: 0.8-1.1 Us at 40 degrees C, 0.85-1.1 Us at higher temperatures
• Terminal Connection: Screw

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3RT1034-1DW48-0PA6
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Sirius
• Type : 3RT10
• Voltage : 600
• Amperage : 32
• Phase : 3
• Poles : 3
• Coil Voltage Maximum : 48
• Coil Voltage Minimum : 48

Product Data

• Weight : 3
