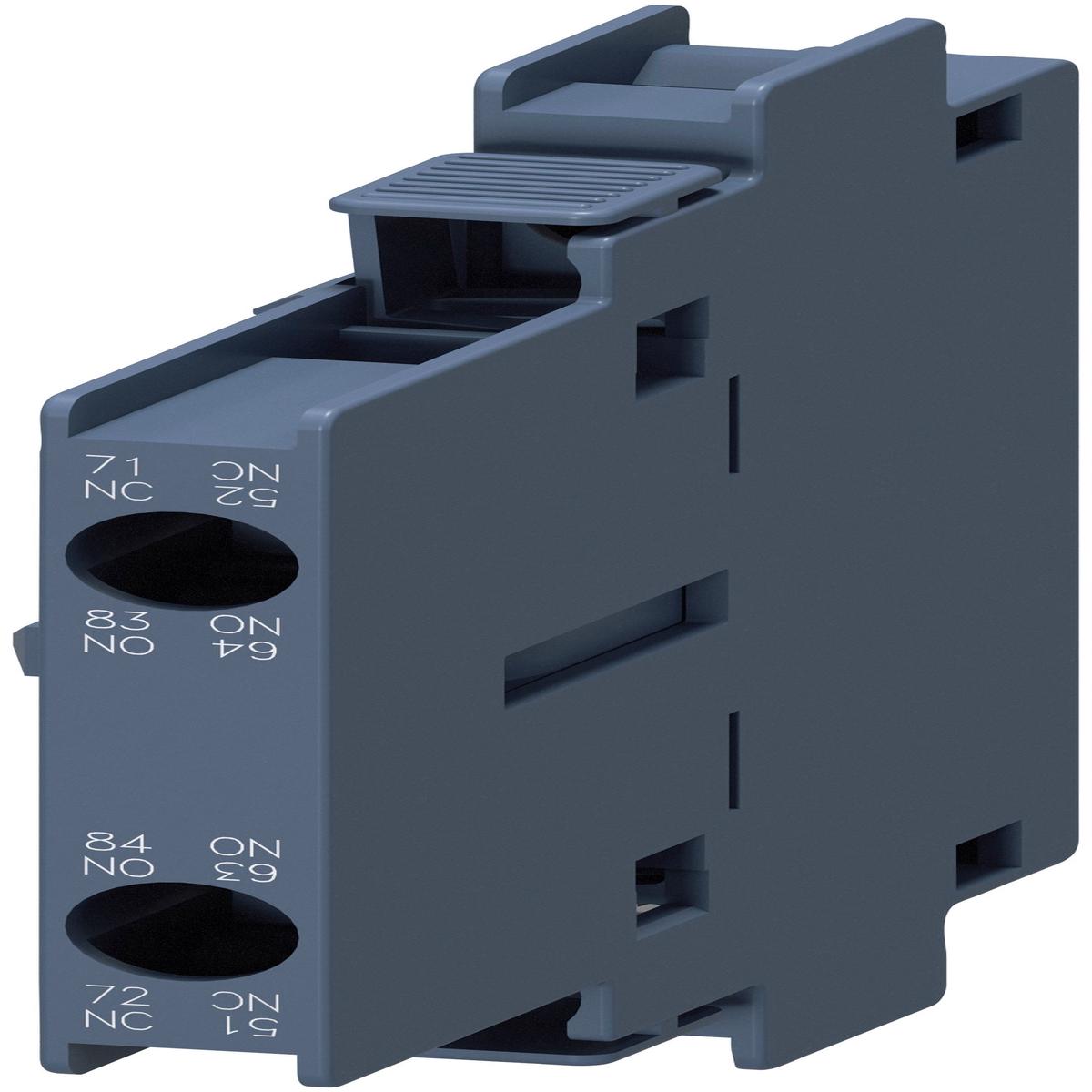

3RH1921-1EA11 – Siemens 6A 230V 2-Pole Auxiliary Switch Block, 1NO+1NC, Screw Terminal, S0-S12

3RH1921-1EA11

3RH1921-1EA11 is a Siemens auxiliary switch block designed for motor control applications with 1 normally open (NO) and 1 normally closed (NC) contact in a 2-pole configuration.This auxiliary contact block features a lateral snap-on mount compatible with Siemens Sirius S0 to S12 contactors, screw terminal connections, and is rated for 6 amps at 230 volts.

• Contact Configuration: 1NO + 1NC
• Poles: 2
• Amperage Rating: 6 A
• Voltage Rating: 230 V AC
• Mounting Type: Lateral snap-on mount
• Compatible with Siemens Sirius S0 to S12 contactors
• Terminal Type: 10 mm screw connection
• Mechanical Service Life: 10,000,000 switching cycles
• Electrical Endurance: 200,000 cycles at AC-15, 230 V
• Insulation Voltage: 500 V rated
• Surge Voltage Resistance: 6 kV
• Operating Temperature Range: -25 to 60 C
• Storage Temperature Range: -55 to 80 C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3RH1921-1EA11
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Contactor And Motor Starter Auxiliary
• Family : Sirius
• Type : 3RH
• Configuration : 1NO/1NC

Product Data

• UPC : 754554401850
• GTIN : 00754554401850
• Country of Origin : Germany
• Weight : 0.1078
