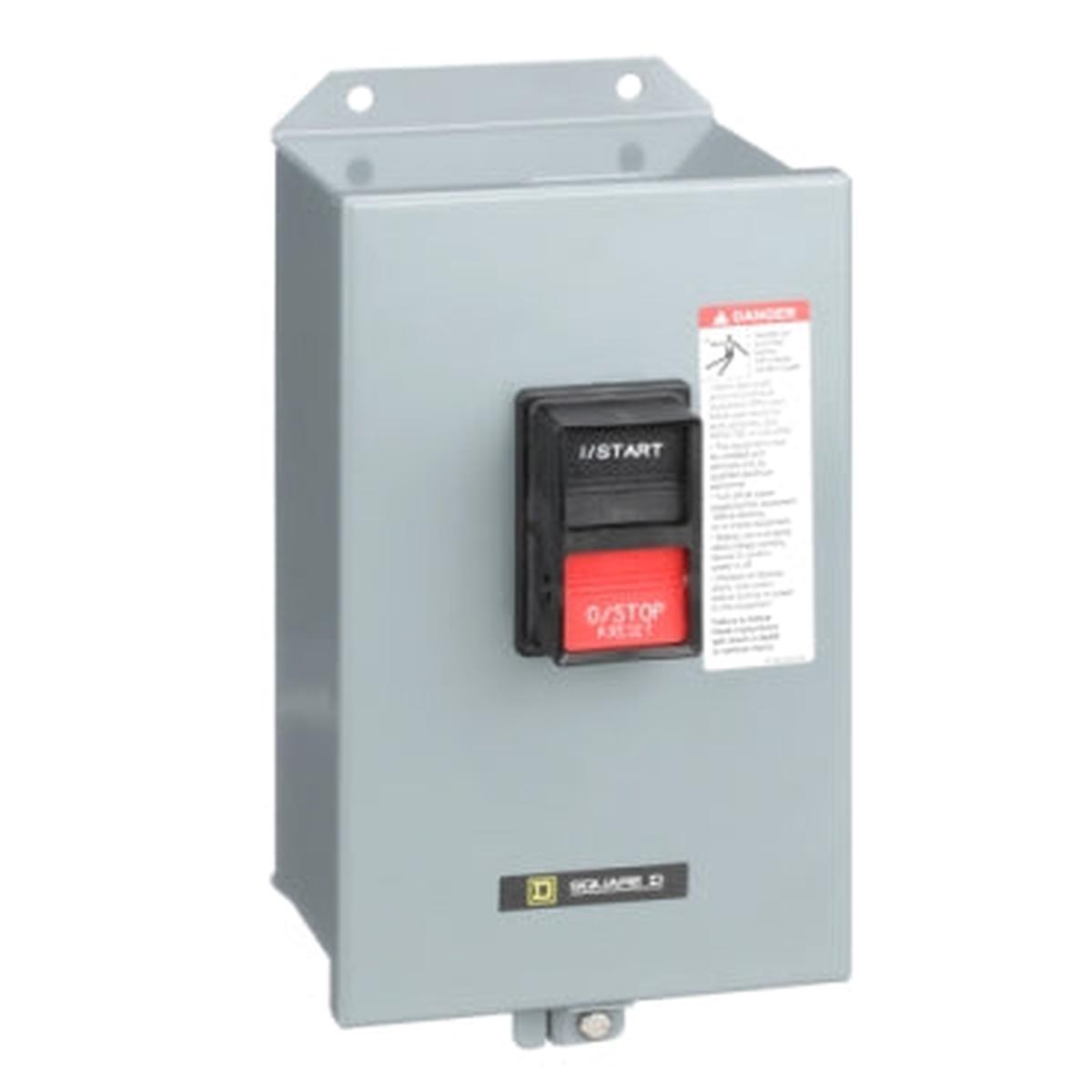

2510MCA2 – Square D 2 Pole 9A 600V Single Phase Manual Motor Starter NEMA 12

2510MCA2

2510MCA2 is a Square D manual motor starter designed for single phase motor control applications with 2 poles and 9 amperes at 600 volts.2510MCA2 features a NEMA 12 enclosure suitable for industrial environments, supports 5 HP at 230 VAC, and includes a pushbutton operator for start/stop control. It is rated for 600 VAC operation and built to meet industry standards for reliable motor protection and control.

Key Specifications
• Amperage: 9 A
• Voltage: 600 V
• Poles: 2
• Phase: Single phase
• Horsepower: 5 HP at 230 VAC
• Enclosure: NEMA 12
• Operator Type: Pushbutton start/stop
• Interrupt Rating: Suitable for motor control applications
• Series/Frame: NEMA M1P
• Certifications: UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 2510MCA2
• Manufacturer : Square D
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Starter
• Voltage : 600
• Amperage : 9
• Phase : 1
• Poles : 2
• Nema Rating : 0

Product Data

• UPC : 078590161983
• GTIN : 00785901619833
• Dimensions : Width 5.78 in (146.81 mm) x Height 10.92 in (277.37 mm) x Depth 5.76 in (146.30 mm)
• Weight : 3.21
