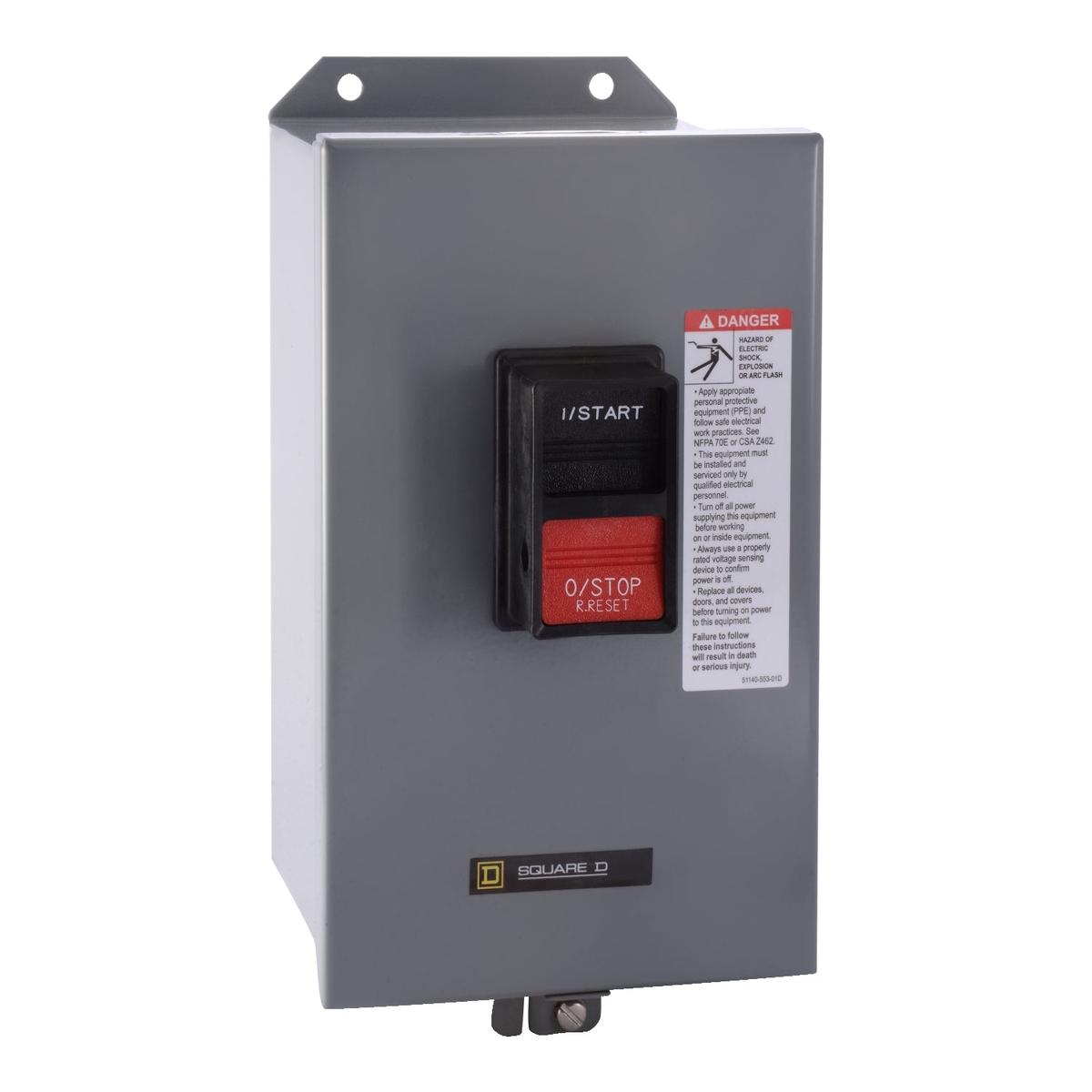

2510MCA1 – Square D 27 Amp 600VAC 2 Pole Manual Motor Starter NEMA M1 Frame

2510MCA1

2510MCA1 is a Square D manual motor starter designed for reliable motor protection with a 27 amp rating and 2 poles in a NEMA M1 frame.This manual starter supports up to 600VAC and 250VDC, suitable for single-phase motors with horsepower ratings of 2 HP at 115V AC and 3 HP at 230V AC. It features a push-button operator, no pilot light indicator, and is rated for NEMA 12 enclosures. The device provides melting alloy thermal overload protection and is UL and CSA listed.

• Amperage: 27 Amps
• Voltage Rating: 600 VAC, 250 VDC
• Number of Poles: 2
• Frame/Series: 2510 M1
• Horsepower: 2 HP @ 115V AC, 3 HP @ 230V AC
• Operator Type: Push Button
• Interrupt Rating: Not specified
• Mounting Type: NEMA M1
• Certifications: UL Listed, CSA Certified
• Enclosure Rating: NEMA 12
• Phase: Single Phase
• Indicator: None

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Non-Reversing

Specifications

• Part Number: 2510MCA1
• Manufacturer : Square D
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Class 2510
• Type : M
• Voltage : 600
• Amperage : 9
• Phase : 1
• Poles : 2
• Aux Contacts : Without
• Nema Starter Size : M-1

Product Data

• UPC : 785901619826
• Country of Origin : Mexico
• Dimensions : 5.75 in x 10.75 in
• Weight : 3.15
• Certification : CSA LR60905, E42243 CCN NLRV, UL Listed
