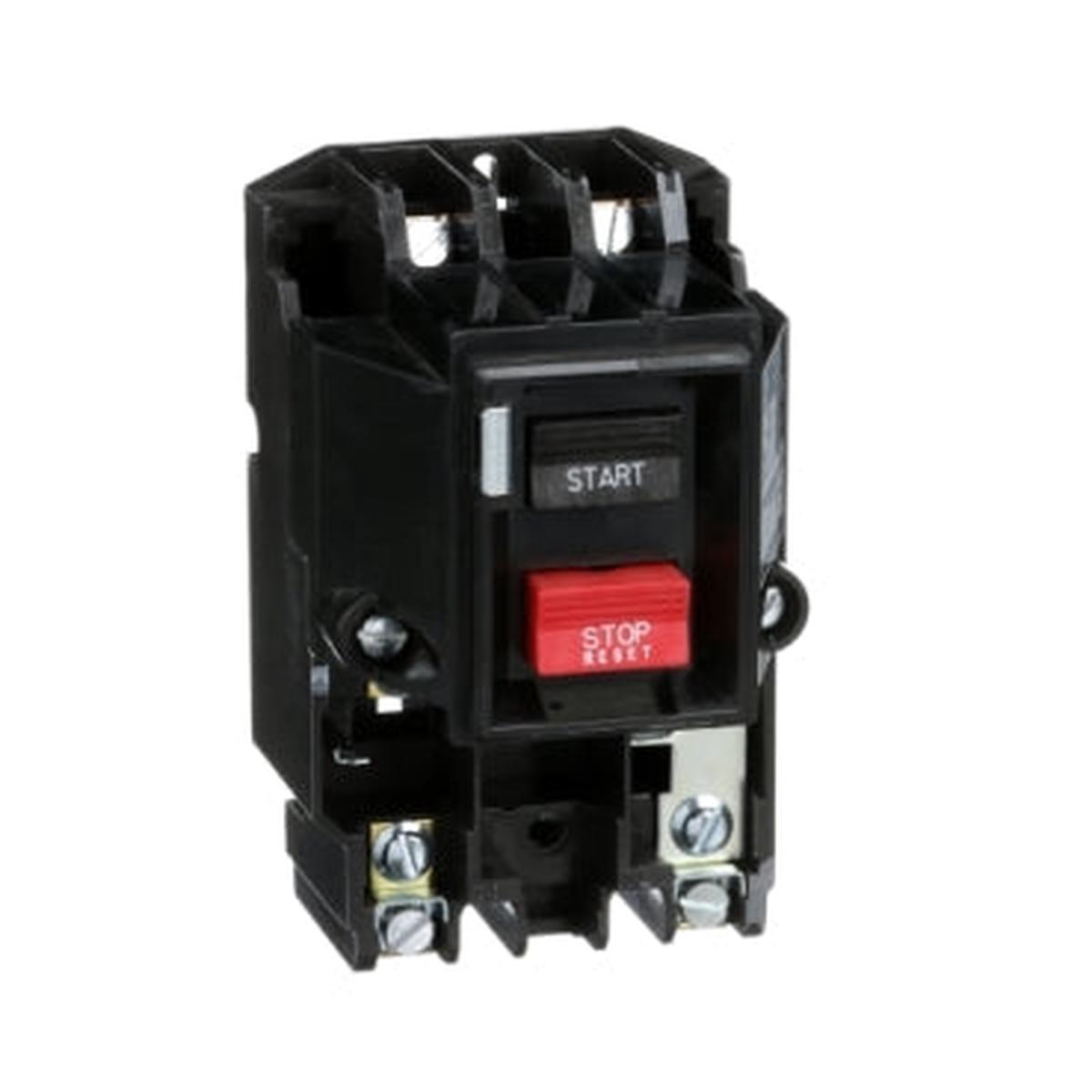

2510MBO1 – Square D 18A 600VAC 2 Pole Manual Motor Starter NEMA M-0 Pushbutton

2510MBO1

2510MBO1 is a Square D Class 2510 manual motor starter designed for motor control applications with 2 poles and 1 phase operation at 600 volts AC.2510MBO1 features an 18 amp rating with a NEMA M-0 frame size and pushbutton operator. It supports 1 HP at 115 VAC and 2 HP at 230 VAC, suitable for single-phase motors. This open-style starter includes integral horsepower rating and is UL and CSA certified. Heater packs are sold separately.

• Amperage: 18A
• Voltage: 600 VAC
• Poles: 2
• Phase: 1
• Frame: NEMA M-0 (Class 2510)
• Operator: Pushbutton
• Horsepower Rating: 1 HP @ 115 VAC, 2 HP @ 230 VAC
• Certifications: UL, CSA
• Mounting Type: Open
• Interrupt Rating: Based on thermal unit selected
• Manual Motor Starter

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 2510MBO1
• Manufacturer : Square D
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Class 2510
• Type : M
• Voltage : 600
• Amperage : 18
• Phase : 1
• Poles : 2
• Nema Rating : M0

Product Data

• UPC : 785901792826
• GTIN : 00785901792826
• Country of Origin : Mexico
• Dimensions : Width 3.5 in (88.90 mm) x Height 5.72 in (145.29 mm) x Depth 4.03 in (102.36 mm)
• Weight : 5
