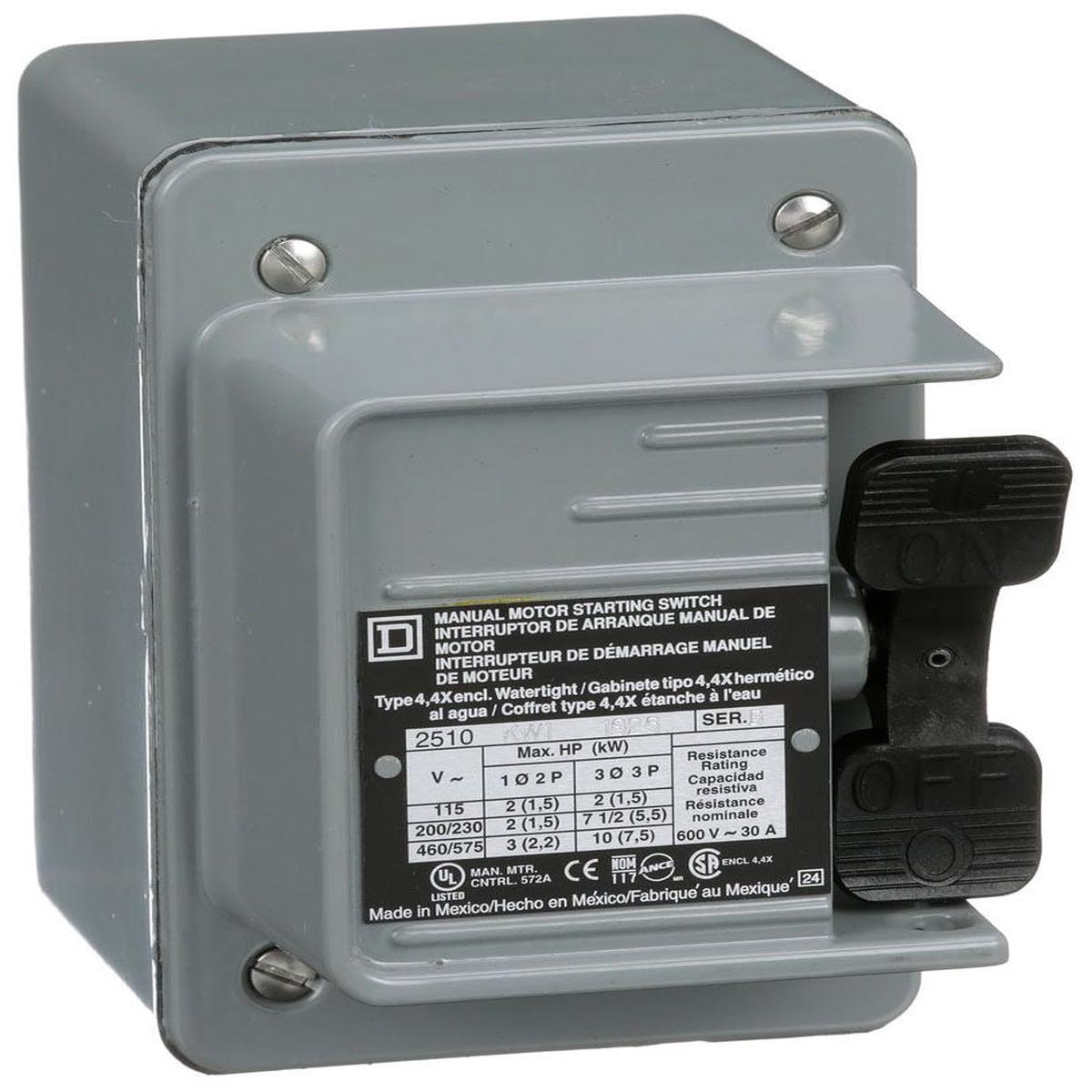

2510KW6 – Square D 30 Amp 600 VAC 3-Pole Manual Motor Switch Type K

2510KW6

2510KW6 is a Square D 3-pole manual motor switch rated for 30 amps and 600 VAC, designed for motor control applications.This Type K manual switch supports 3-phase operation with a maximum voltage rating of 600 VAC and 230 VDC. It is rated for 20 HP at 575 VAC, 10 HP at 460 VAC, 7.5 HP at 230 VAC, and 2 HP at 115 VAC. The switch features a toggle operator and is suitable for non-reversing motor control. Overload protection must be provided separately.

• Amperage: 30 A
• Voltage: 600 VAC, 230 VDC
• Poles: 3
• Type: K Manual Switch
• Horsepower Ratings: 20 HP at 575 VAC, 10 HP at 460 VAC, 7.5 HP at 230 VAC, 2 HP at 115 VAC
• Operator: Toggle
• Phase: 3-phase
• Mounting: Panel mount
• Interrupt Rating: Not specified
• Series/Frame: 2510 Type K
• Trip Unit: None (manual switch)
• Certifications: Not specified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 2510KW6
• Manufacturer : Square D
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Starter
• Voltage : 690
• Amperage : 30
• Phase : 3
• Poles : 4
• AIC rating : 50kA@415V
• Connection : Bolt-On
• Functions : LSIG – Long-Time, Short-Time, Instantaneous and Ground Fault
• Protection : Solid State

Product Data

• UPC : 785901920411
• GTIN : 785901006121
• Country of Origin : Mexico
• Dimensions : 3 in x 4.38 in
• Weight : 4 lb
