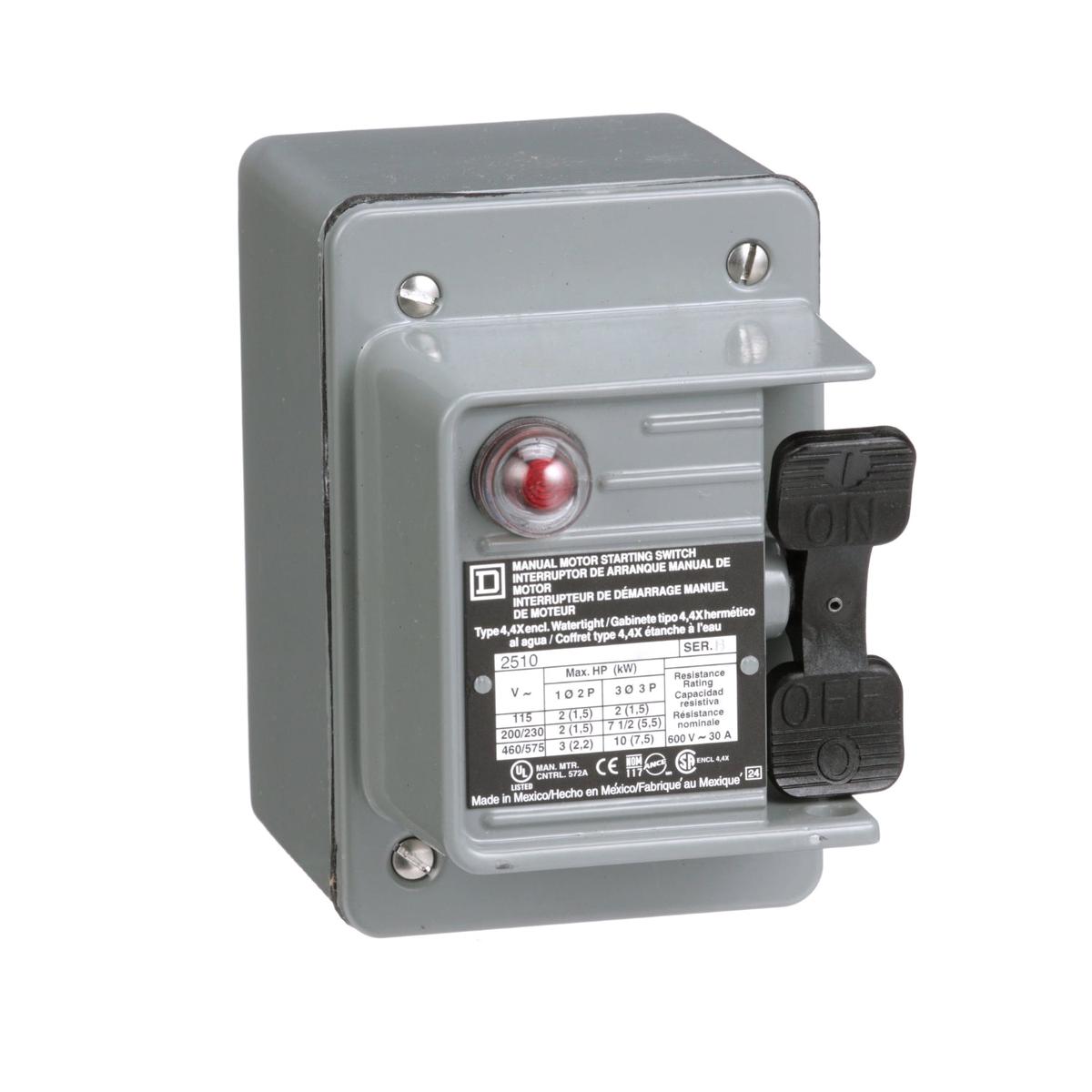

2510KW1B – Square D 30A 600VAC 2-Pole Manual Motor Switch with Red Indicator NEMA 4

2510KW1B

2510KW1B is a Square D manual motor switch designed for reliable on/off control of small motors in indoor and outdoor environments.This Type K manual switch features a 30 ampere current rating with a 2-pole configuration, suitable for single-phase motors. It supports motor horsepower ratings up to 3 HP at 575 VAC and 2 HP at 230 VAC. The switch is toggle operated and includes a red pilot light indicator for status signaling. It is housed in a NEMA 4 zinc alloy enclosure, providing protection against water and dust for both indoor and outdoor applications. The device includes a 0.75 inch NPT cable entry at the bottom for wiring convenience.

• Manufacturer: Square D
• Part Number: 2510KW1B
• Current Rating: 30 Amps
• Voltage Rating: 600 VAC / 230 VDC
• Poles: 2
• Horsepower Ratings: 3 HP at 575 VAC, 2 HP at 230 VAC, 2 HP at 115 VAC
• Control Type: Toggle operated
• Indicator: Red pilot light, 230 VAC
• Enclosure: NEMA 4 zinc alloy (water and dust tight)
• Cable Entry: 0.75 inch NPT (bottom)
• Phase: Single-phase
• Type: K manual switch

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 2510KW1B
• Manufacturer : Square D
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Class 2510
• Type : K
• Voltage : 600
• Amperage : 30
• Phase : 1
• Poles : 2
• Coil Voltage Maximum : 120
• Coil Voltage Minimum : 120
• Enclosure : 4

Product Data

• UPC : 078590100606
• GTIN : 00785901006060
• Dimensions : Width 3 in (76.20 mm) x Height 4.38 in (111.25 mm) x Depth 4.56 in (115.82 mm)
• Weight : 1.58
