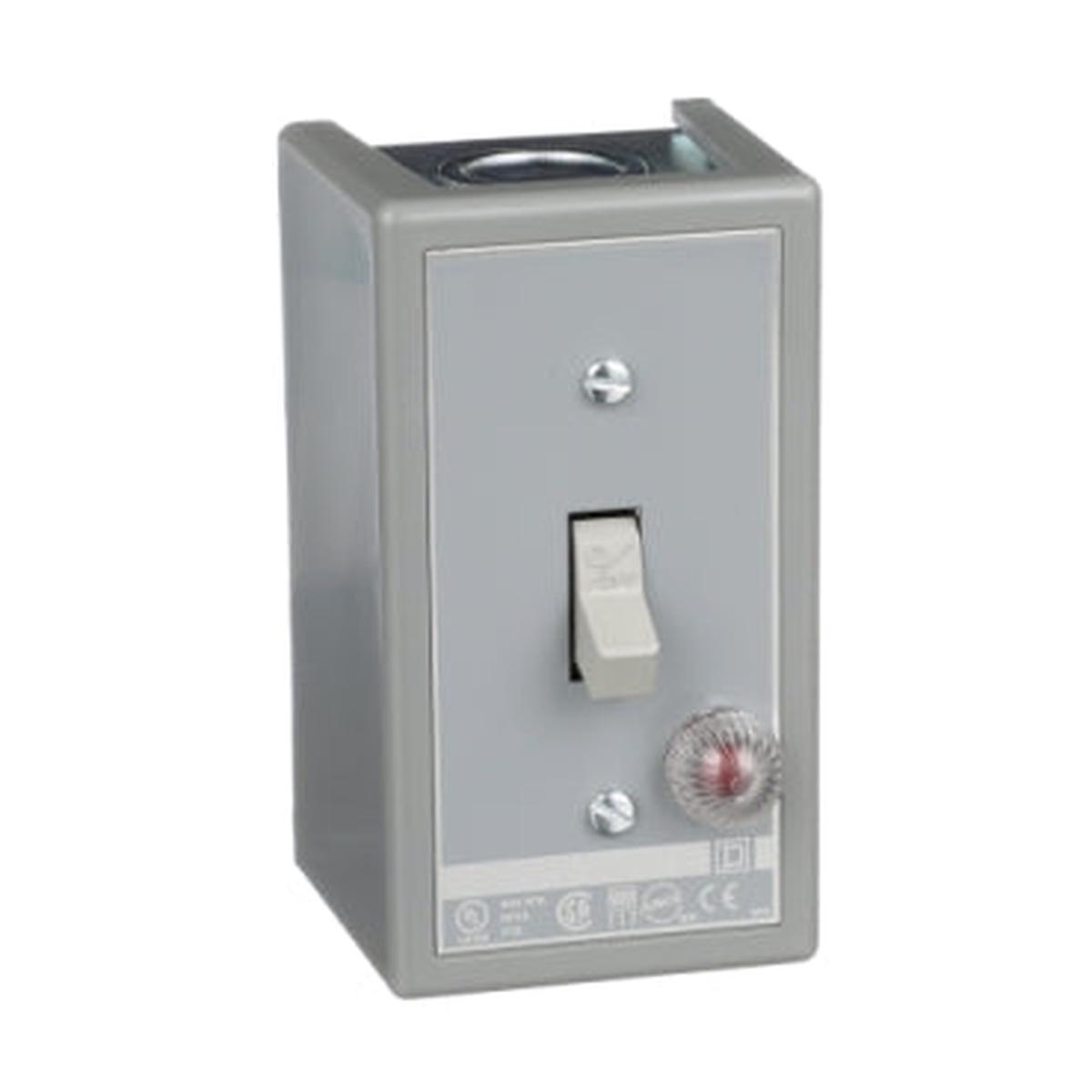

2510KG1A – Square D 30A 2-Pole 600VAC Manual Motor Switch NEMA 1

2510KG1A

2510KG1A is a Square D 2-pole manual motor switch designed for reliable control in single-phase applications. This switch features a toggle actuator, screw clamp connections, and a red indicator for easy status monitoring. Engineered for durability, the 2510KG1A offers a 30A amperage rating, supports up to 600VAC and 230VDC, and is housed in a NEMA 1 enclosure made of sheet steel. It is ideal for non-reversing motor control with a compact footprint and robust construction.

• Part Number: 2510KG1A
• Manufacturer: Square D
• Amperage Rating: 30 A
• Voltage Rating: 600 VAC / 230 VDC
• Number of Poles: 2
• Series: 2510
• Action: Non-Reversing
• Actuator: Toggle
• Connection Type: Screw Clamp
• Enclosure: NEMA 1
• Indicator: Red
• Material: Sheet Steel

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 2510KG1A
• Manufacturer : Square D
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Class 2510
• Type : K
• Voltage : 600
• Amperage : 30 Amp
• Phase : 1
• Poles : 2
• Nema Rating : 00

Product Data

• UPC : 078590155448
• GTIN : 00785901554486
• Country of Origin : Mexico
• Dimensions : 2.88 in x 4.25 in
• Weight : 1
• Certification : CSA LR25490 Class 3211 05, UL Listed E42243 CCN NLRV
