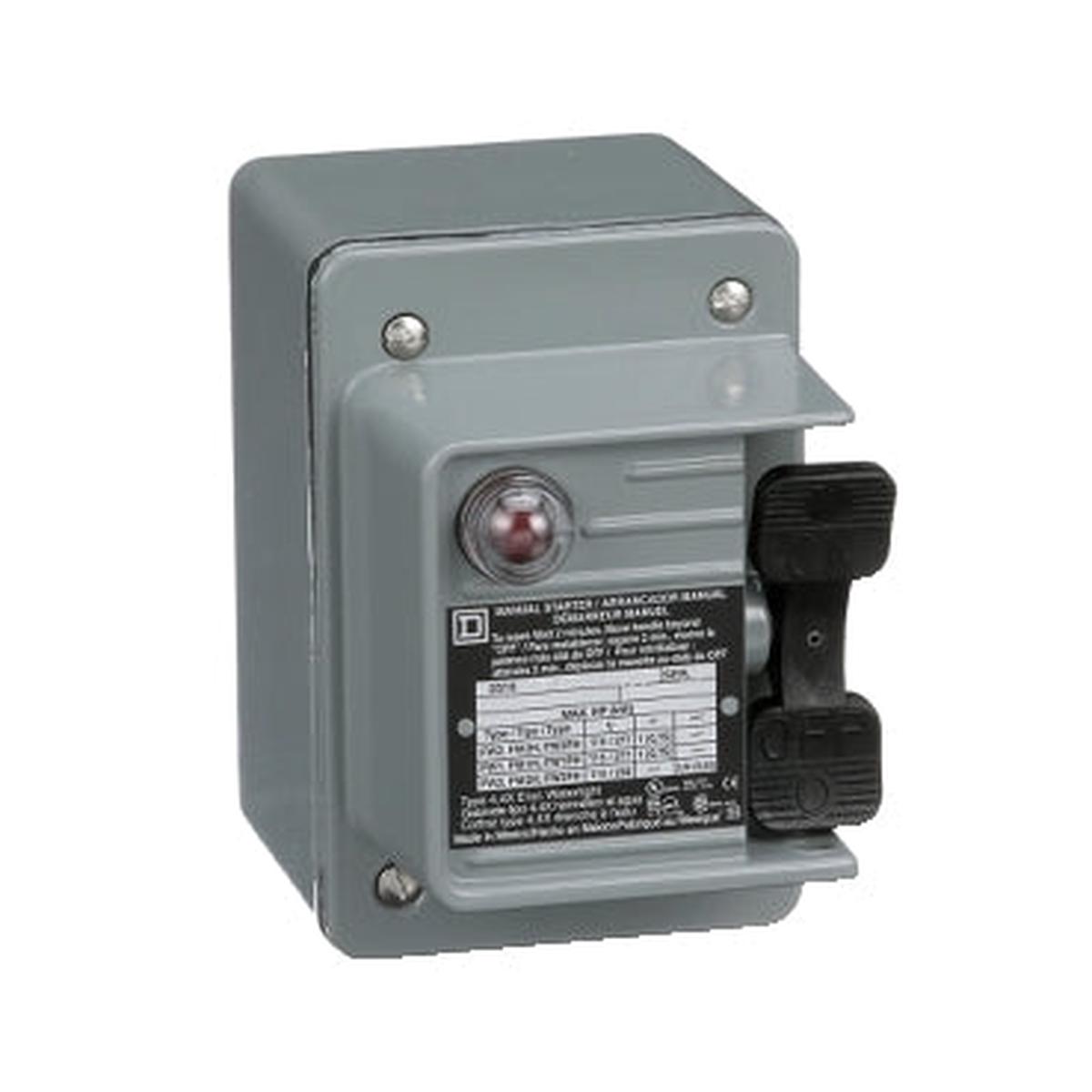

2510FW1PH – Schneider Electric 16A 1 Pole Manual Motor Starter 1 HP 277 VAC NEMA 4 Enclosure

2510FW1PH

2510FW1PH is a Schneider Electric manual motor starter designed for fractional horsepower motors with a 16 ampere rating and 1 pole configuration.

This manual starter provides manual On-Off control with overload protection for small single-phase motors up to 1 HP at 277 VAC. It features a toggle operator with a red indicator light and is housed in a durable NEMA 4 die cast zinc alloy enclosure suitable for industrial and commercial applications. The starter is non-reversing and mounts on chassis, designed to protect fractional horsepower motors with melting alloy thermal units ordered separately for overload sensing.

• Current Rating: 16 Amps
• Voltage Rating: 277 VAC
• Poles: 1 Pole
• Horsepower Rating: 1 HP at 277 VAC
• Mounting Type: Chassis Mount
• Enclosure Type: NEMA 4
• Actuator Type: Toggle Switch
• Starter Type: Manual Motor Starter
• Non-Reversing Operation
• Red Indicator Light

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Non-Reversing

Specifications

• Part Number: 2510FW1PH
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Motor Starter

Product Data

• UPC : 785901320241
• GTIN : 00785901000000
• Country of Origin : United States
• Dimensions : Width 3 in (76.20 mm) x Height 4.38 in (111.25 mm) x Depth 4.56 in (115.82 mm)
• Weight : 3
• Certification : UL listed file E42243 CCN NLRV CSA LR25490 class 3211 05
